Overview
Description

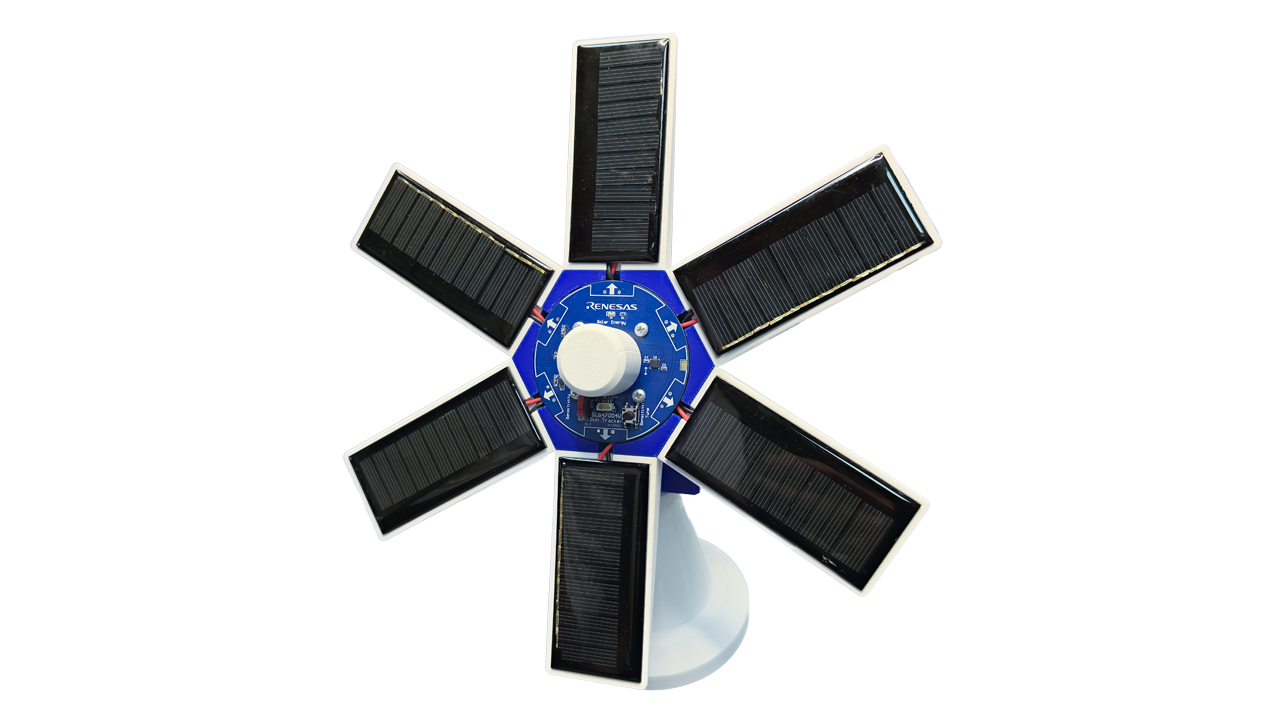

Based on the SLG7RN47363 AnalogPAK™ sun tracker programmable mixed-signal integrated circuit (IC), this reference design is equipped with a linear control and optical positioning system. Designed for efficient solar energy capture, it allows for the rotation of solar panels toward the maximum light intensity point.
Features
- Low-power consumption
- Equipped with linear motor drive control
- Includes optical positioning system
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| PCB Design Files | Sun Tracker Design Files
The AnalogPAK™ Sun Tracker uses optical sensors and linear motor control to align panels to the brightest light. The design files for the Sun Tracker include the schematic, BOM, PCB layout files, and Gerber artwork - essential tools for enabling complete evaluation of IC and board functions.
|
|
| Quick Start Guide |
PDF
389 KB
日本語
, 简体中文
The AnalogPAK™ Sun Tracker uses optical sensors and linear motor control to align panels to the brightest light. It can be powered using USB-C or the internal battery. Users adjust sensitivity with a toggle and button, and a removable diffuser balances light on sensors. SLG7RN47363 offers multi-time programmability. This quick-start guide introduces new users to the AnalogPAK Sun Tracker and describes the device's main functionality.
|
|
| Application Note |
PDF
1.01 MB
AI-generated Summary:
The dual-axis sun tracker uses two SLG47004 AnalogPAK ICs to detect maximum light intensity and control two BDC motors for horizontal and vertical rotation. It employs photoresistors with adjustable sensitivity via internal rheostats, preventing interference from ambient light. The system uses operational amplifiers, analog comparators, and switches to regulate motor direction and speed through a full bridge circuit. A test sample with a circular PCB integrates power and I2C communication, enabling practical evaluation. The design can be adapted for solar charging applications and offers low power consumption in a compact package. PCB design files include schematics, BOM, and Gerber files.
|
|
