Overview
Description

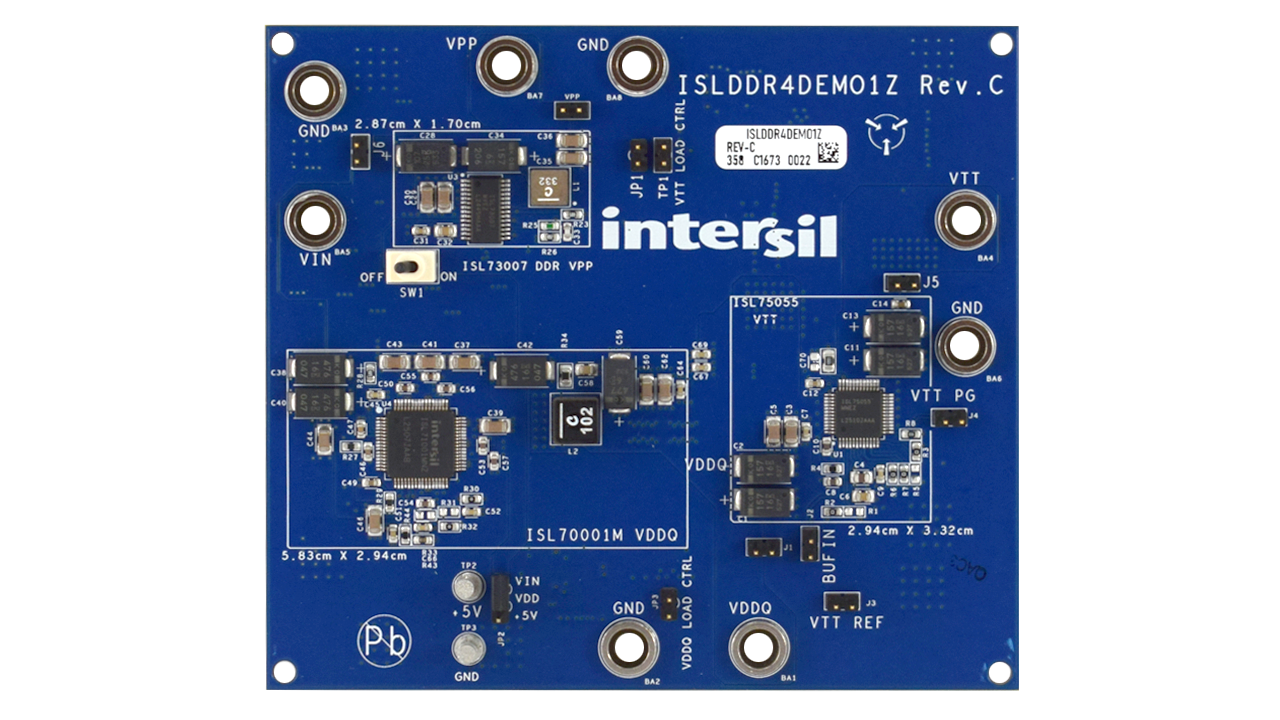

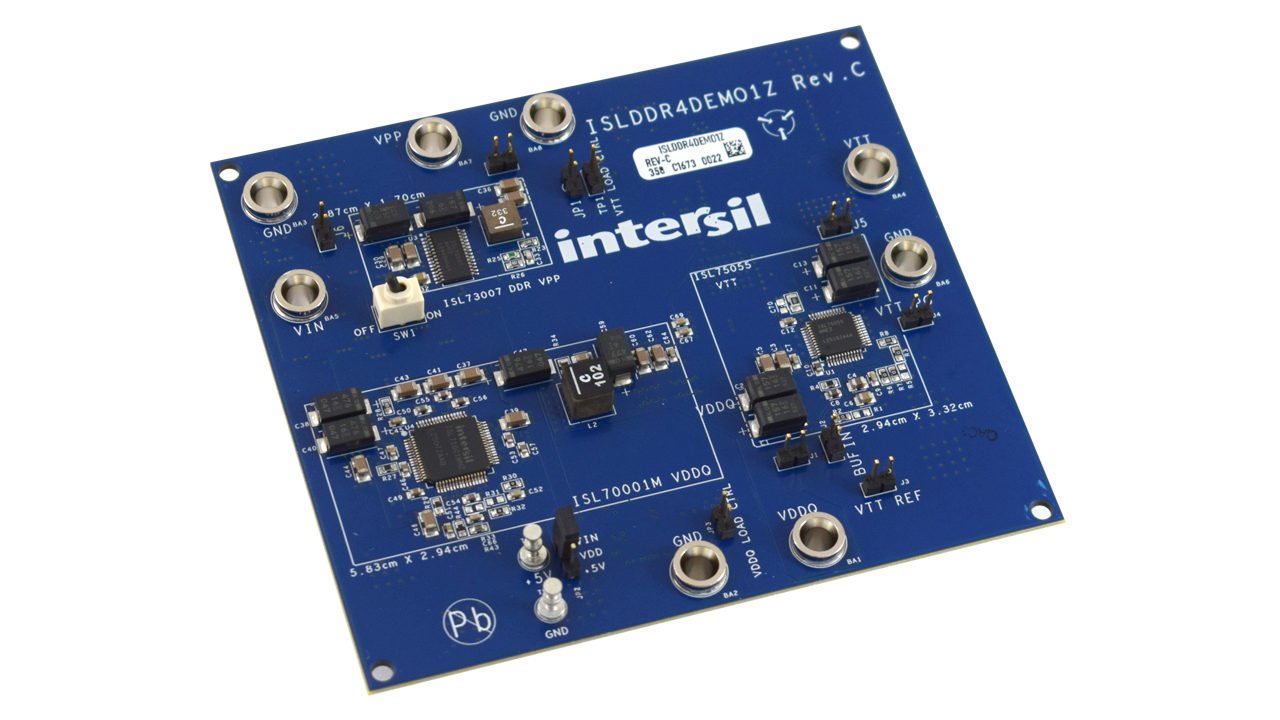

The ISLDDR4DEMO1Z is designed to demonstrate a radiation tolerant power management solution for DDR4 memories. The board uses Renesas radiation tolerant (RT) plastic power management devices to supply the required DDR4 VDDQ, VPP, VTT, and VREF power rails, generated by the ISL71001M, ISL73007M, and ISL75055M, respectively.
The board features all necessary test points and connections to evaluate the multiple power solutions. On-board transient circuits are included to evaluate VDDQ and VTT transient response.
The ISLDDR4DEMO1Z demonstrates an accurate, fully qualified radiation tolerant solution for DDR4 power management.
Features
- Complete plastic package solution
- Fully qualified radiation tolerant power solution
- Includes regulators for all DDR4-compliant power rails
- On-board load transient generator for VDDQ and VTT
- Total solution area: 3178mm2
Applications
- DDR4 power management
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| PCB Design Files |
ZIP
1.91 MB
The ISLDDR4DEMO1Z radiation tolerant DDR4 power management reference design demonstrates a radiation-tolerant power management solution for DDR4 memories. Design files for the ISLDDR4DEMO1Z include the schematic, BoM, PCB layout files, and artwork, essential tools for enabling the board functions.
|
|
| Manual - Development Tools |
PDF
2.36 MB
The ISLDDR4DEMO1Z is a fully functional DDR4 power management solution. The design uses Renesas radiation tolerant (RT) plastic power management devices to supply the required DDR4 VPP, VDDQ, VTT, and VREF rails. This manual provides information about the reference design, including its features, specifications, layout guidelines, schematics, bill of materials, and board layout.
|
|
| Technical Brief | PDF 344 KB | |
3 items
|
||
Product Options
| Part Number | Status | Stock | Sampleable |
|---|---|---|---|
| ISLDDR4DEMO1Z | Active | Out of Stock | Available |
