Overview
Description

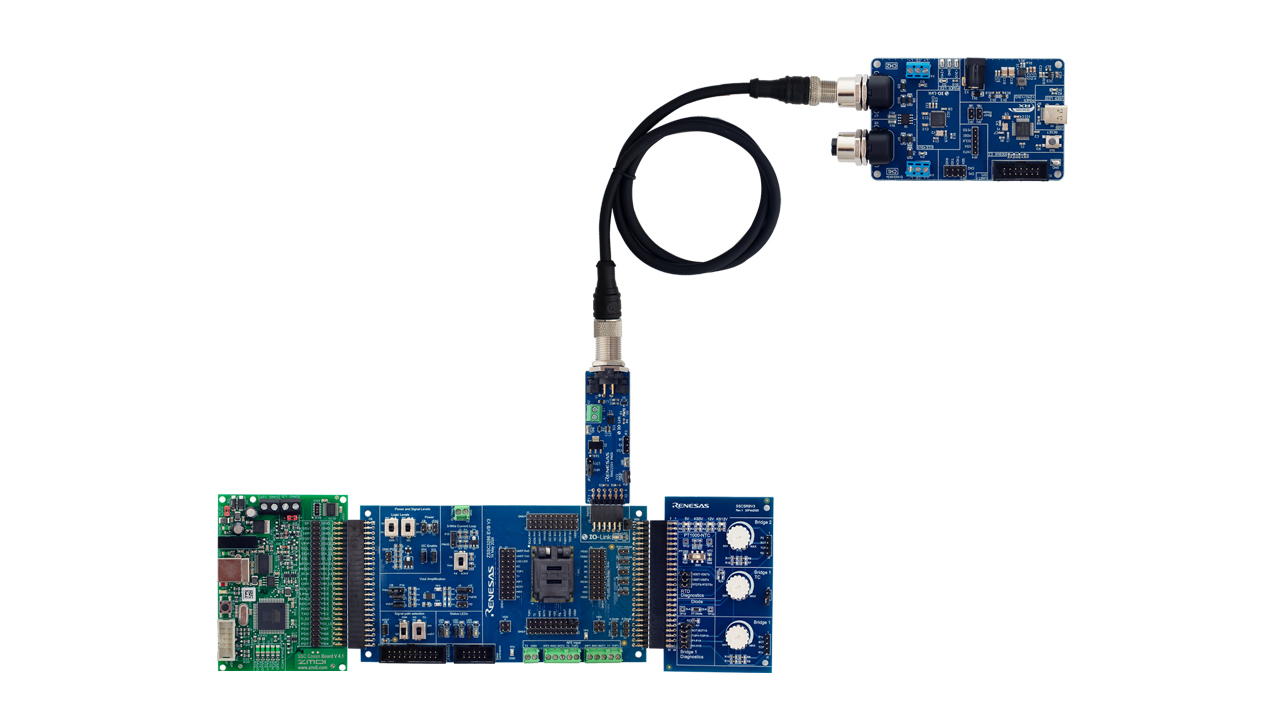

The ZSSC3286 evaluation kit provides the hardware needed for the configuration, calibration, and evaluation of the ZSSC3286 sensor signal conditioner (SSC) IC. The user's PC can communicate via USB with the ZSSC3286 IC socketed on the ZSSC3286 evaluation board via IO-Link, using the included RH4Z2501-PMOD board (IO-Link physical layer transceiver board with Pmod™ interface) and the 2-channel IO-Link master. Furthermore, the ZSSC3286 evaluation kit contains the SSC communication board for configuration via I²C.
The evaluation kit software is available online for free download.
To enable product comparisons, this modular kit is compatible with other select Renesas devices. Contact your local sales representative for more information.
Kit Contents
The ZSSC3286 is an all-in-one evaluation system to design your IO-Link sensing application. The following components are included in the system:

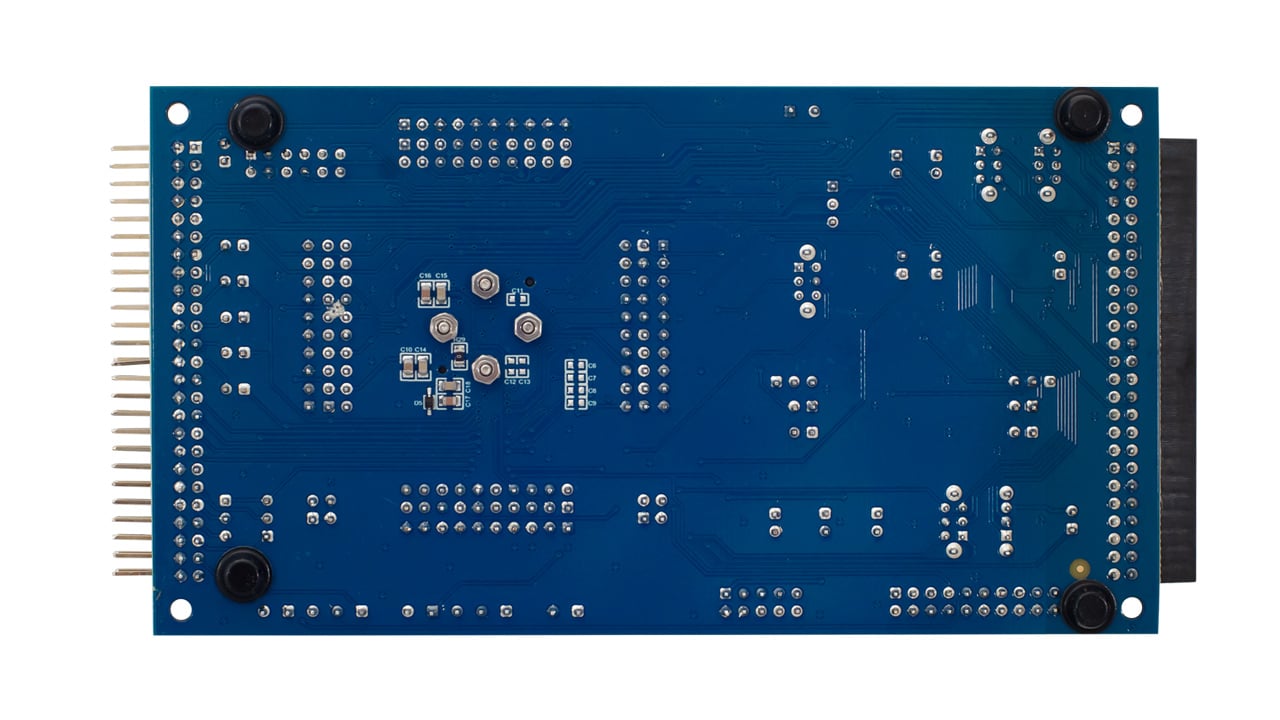

- ZSSC3286 evaluation board
- SSC communication board
- SSC sensor replacement board
- CCE4510 IO-Link master board
- RH4Z2501-PMOD board
- ZSSC3286 samples (5 pcs.)
- USB and IO-Link cables
- Tweezers
- Software including ZSSC3286 IO-Link Device Description (IODD) generator
Features
- All-in-one starter kit
- Full-chain connectivity to USB port
- Functional evaluation of the ZSSC3286 SSC via IO-Link and I²C interface
- Configuration and calibration
- ZSSC3286 firmware update
Applications
Design & Development
Support
Support Communities
Knowledge Base
Videos & Training
Introducing the ZSSC3286 sensor signal conditioner with dual path resistive analog front-end, integrated IO-Link stack with Smart Sensor Profile in COM3 mode, and a full-chain evaluation kit.
