10BASE-T1S Single Pair Ethernet Extension Board

Y-COMMON-10BASE-T1S

Active
Order Now

Overview

The 10BASE-T1S Single Pair Ethernet extension board extends the connectivity capabilities of the RH850/R-Car MCU evaluation platform when used in combination with the Y-COMMON-MB-T1-V1 common mainboard. It includes one 10BASE-T1S Ethernet PHY transceiver for evaluating Single Pair Ethernet communication. Ensure that the selected RH850 or R-Car piggyback board supports 10BASE-T1S operation before use.

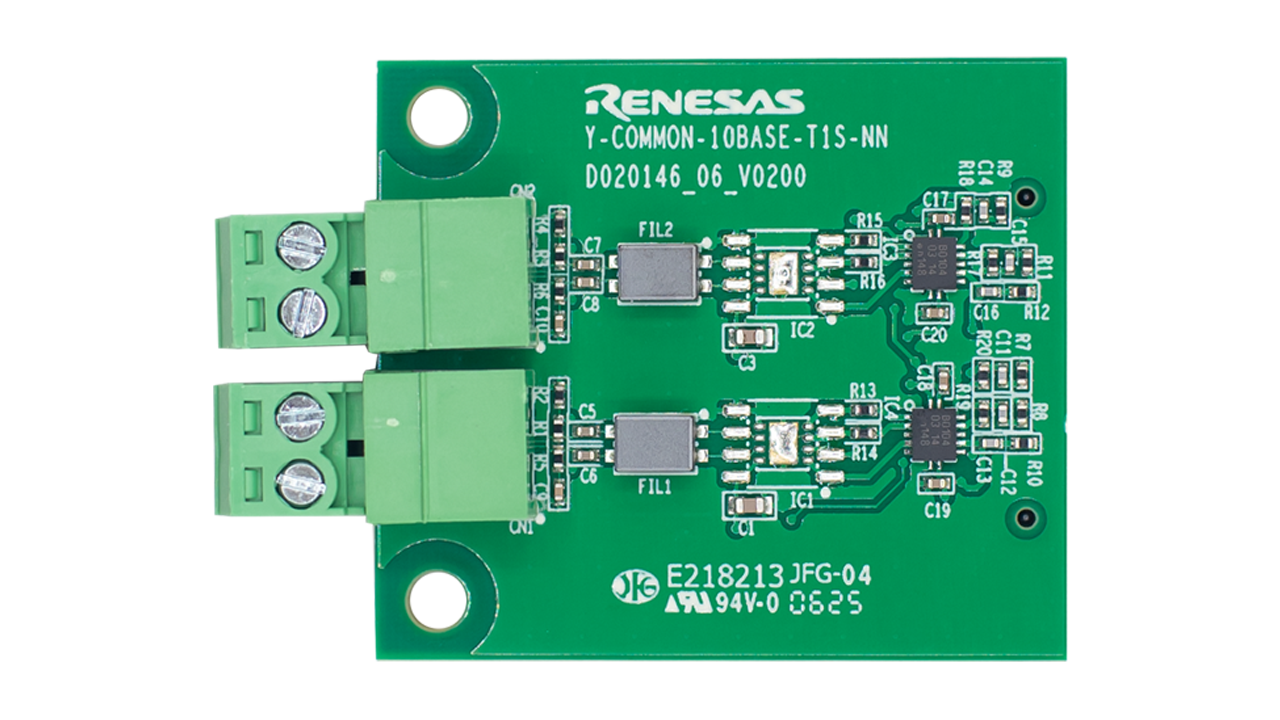

The top view of the Y-COMMON-10BASE-T1S Ethernet extension board.

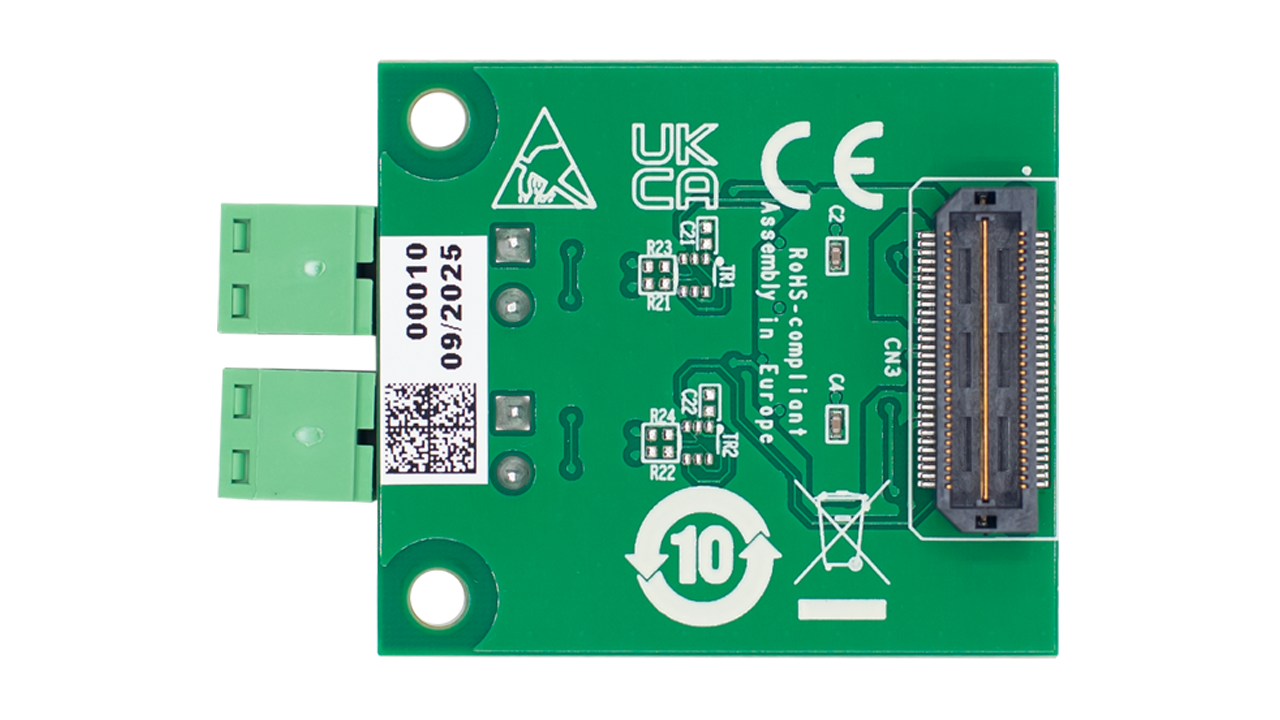

The bottom view of the Y-COMMON-10BASE-T1S Ethernet extension board.

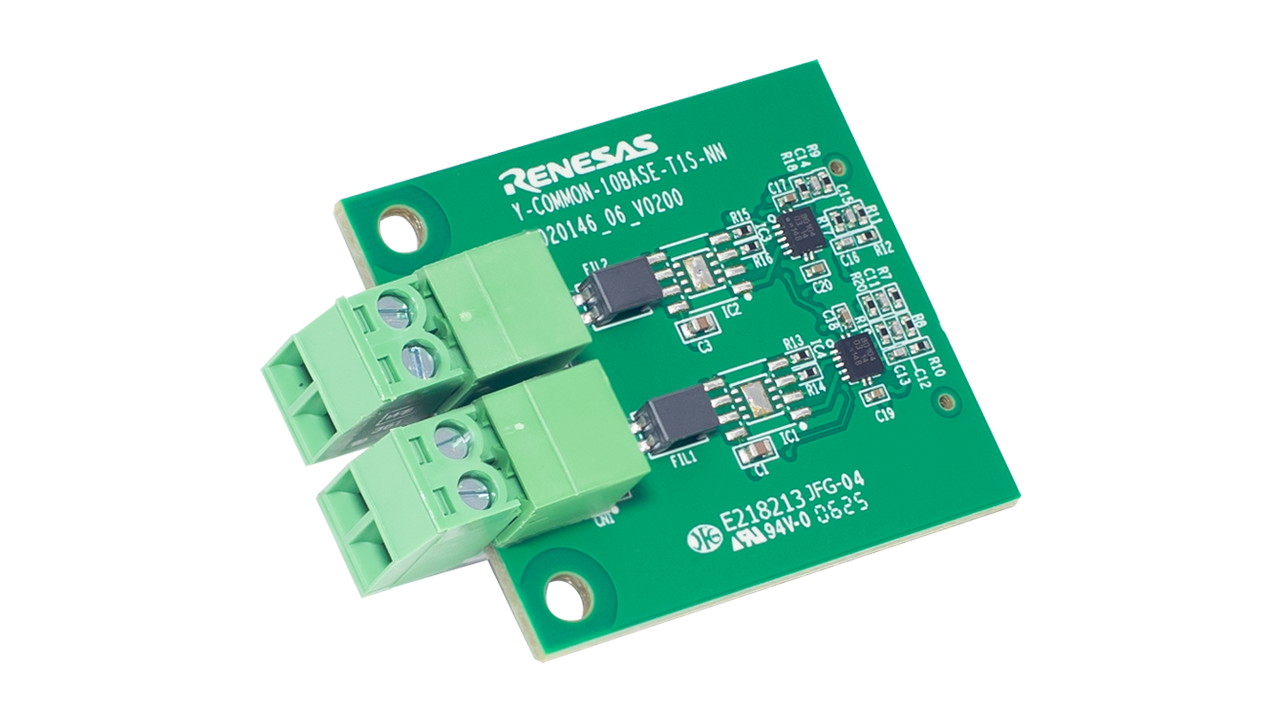

The angle view of the Y-COMMON-10BASE-T1S Ethernet extension board.
The top view of the Y-COMMON-10BASE-T1S Ethernet extension board.
The bottom view of the Y-COMMON-10BASE-T1S Ethernet extension board.
The angle view of the Y-COMMON-10BASE-T1S Ethernet extension board.
  • Supports 10BASE-T1S Single Pair Ethernet (SPE) communication
  • Designed for use with the Y-COMMON-MB-T1-V1 common mainboard of the RH850/R-Car MCU evaluation platform
  • Includes an onboard 10BASE-T1S Ethernet PHY transceiver for network evaluation and development
  • Compatible with supported RH850 and R-Car piggyback boards that provide 10BASE-T1S functionality
