Overview
Description

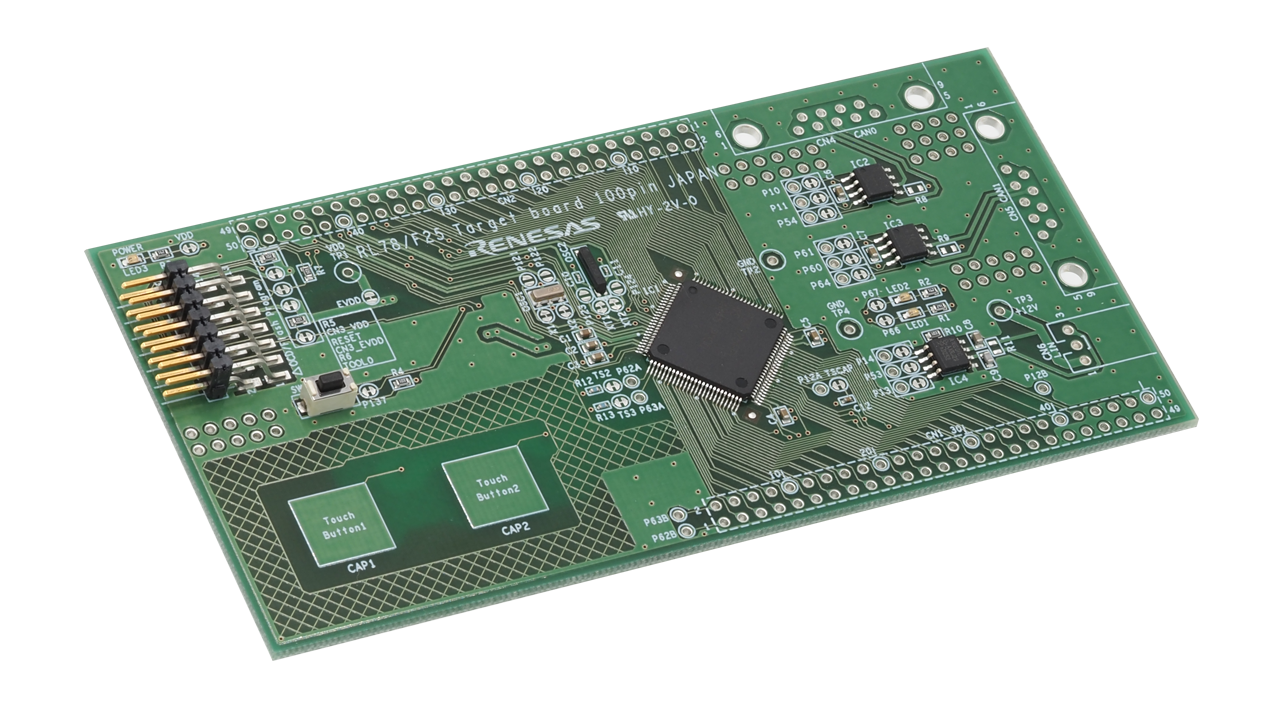

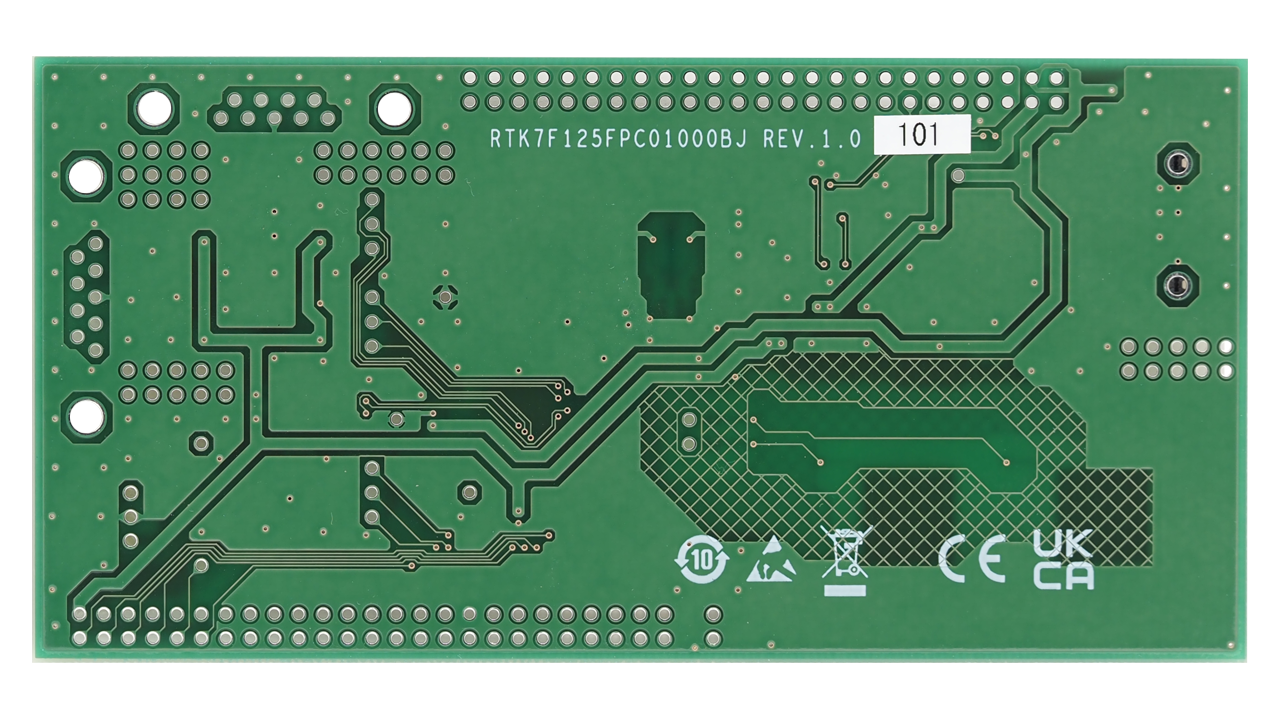

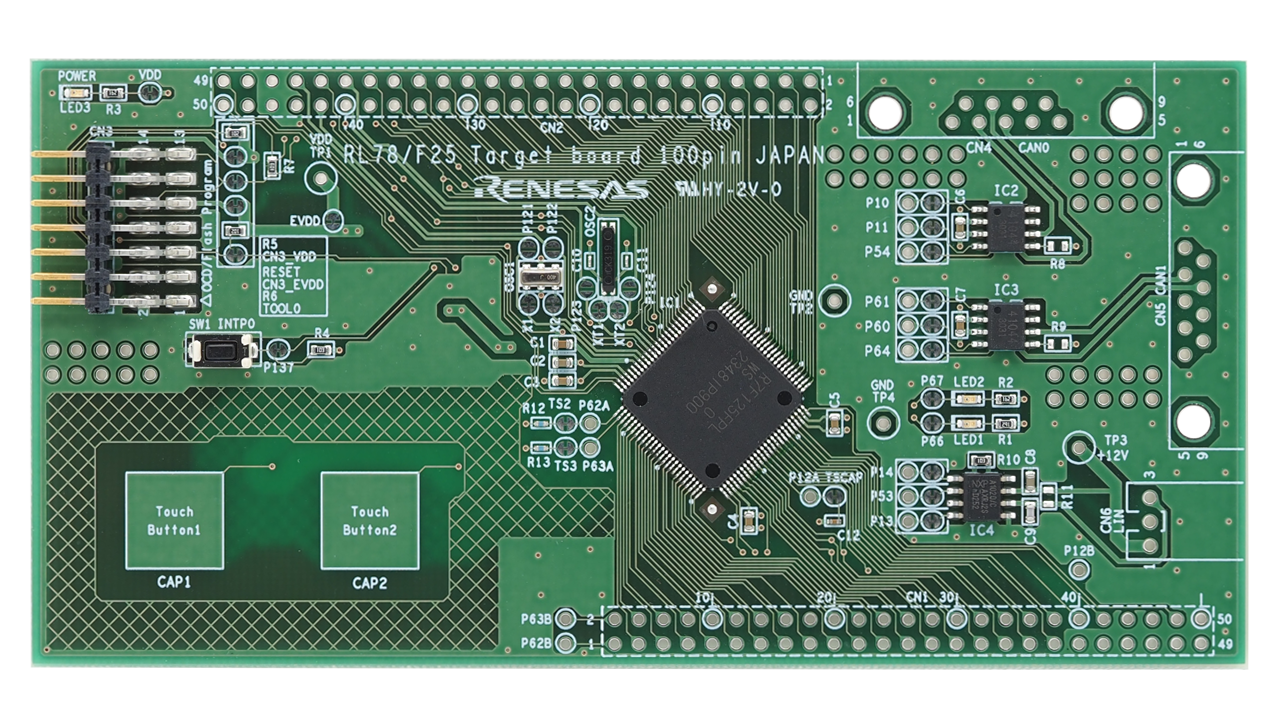

As a CPU board usable in connection with the on-chip debugging emulators E2 and E2 Lite, the RL78/F25 (R7F125FPL) target board enables simple and easy evaluation of the RL78/F25 MCU.
Note: This board comes with two touch buttons for simple evaluation, but when designing an actual board, please check the Capacitive Sensor Microcontrollers CTSU Capacitive Touch Electrode Design Guide and use the RL78/F25 capacitive touch evaluation system (RSSK-RL78F25) for evaluation.
Features
- Incorporates RL78/F25 (R7F125FPL)
- 4MHz resonator and 32.768kHz resonator are mounted
- Equipped with universal area (2.54mm pitch)
- Supports both flash memory programming and on-chip debugging (using TOOL0 pin)
- Highly extendable: peripheral board connectors are equipped with microcontroller pins
- Mounted with two touch buttons using capacitive sensor units
Applications
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 474 KB | |
| Application Note |
PDF
14.40 MB
日本語
, 简体中文
This application note provides the design principles and layout examples of touch electrodes for microcontrollers embedded with a Capacitive Touch Sensing Unit (CTSU). It outlines recommended design practices and considerations for both self‑capacitance and mutual‑capacitance methods, covering electrode geometry, routing, and shielding structures. In addition, it describes the application examples for each sensing method.
|
|
2 items
|
||
Design & Development
Software & Tools
Software & Tools
| Software title
|
Software type
|
Company
|
|---|---|---|
| E2 emulator [RTE0T00020KCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
| E2 emulator Lite [RTE0T0002LKCE00000R] On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX, RISC-V MCU]
|
Emulator | Renesas |
2 items
|
||
Related Boards & Kits
Boards & Kits
Evaluation
RSSK-RL78F25
Active
Capacitive Touch Evaluation System for RL78/F25
The RL78/F25 capacitive touch evaluation system (RSSK-RL78F25) makes it easy for users to evaluate touch solutions offered by Renesas. You can start evaluating immediately out of the box using the board and software included in each kit.
Product Options
| Part Number | Status | Stock | Budgetary Price (USD) | Sampleable |
|---|---|---|---|---|
| RTK7F125FPC01000BJ | Active | In Stock | 1u | $110.46 | Available |
