Overview
Description
The RTKA2P4500S00000BE is a contactless evaluation kit designed to test rotary and linear sensor performance with ease. It includes intuitive configuration software and a simple-to-install GUI. The communication board ensures seamless PC connectivity for fast setup and evaluation.
The kit features the RAA2P4500 magnet-free inductive position sensor IC, optimized for absolute rotary, linear, or arc position sensing in automotive applications.
What's Included
- RAA2P-COMBOARD communication board

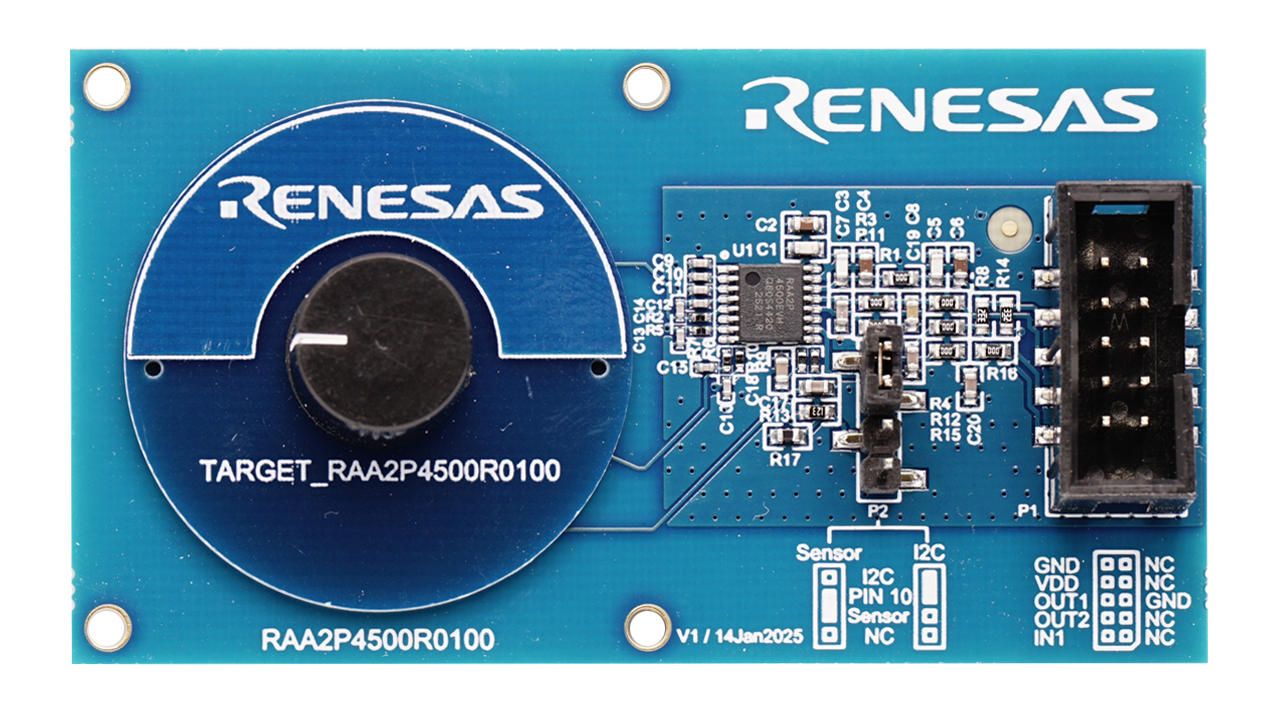

- RAA2P4500R0100: Single rotary sensor, 32mm diameter, 360° design

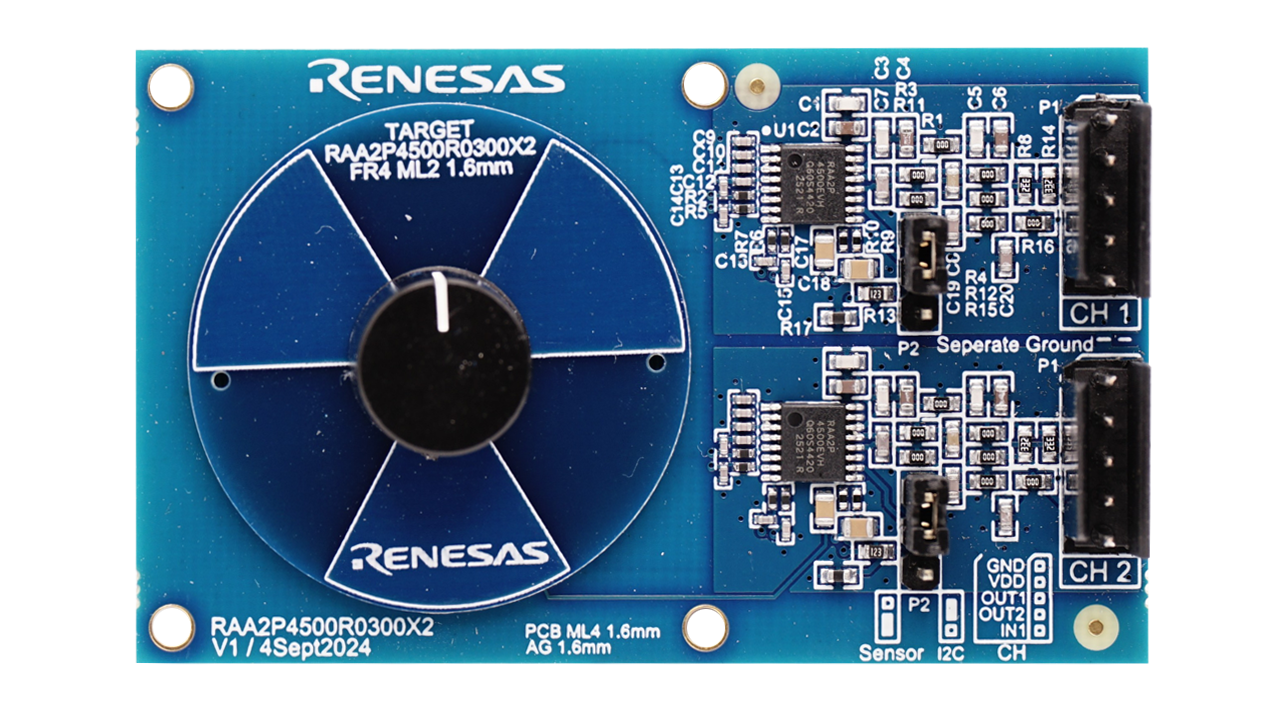

- RAA2P4500R0300X2: Redundant configuration with two sensors, 28.8mm diameter, 360° design

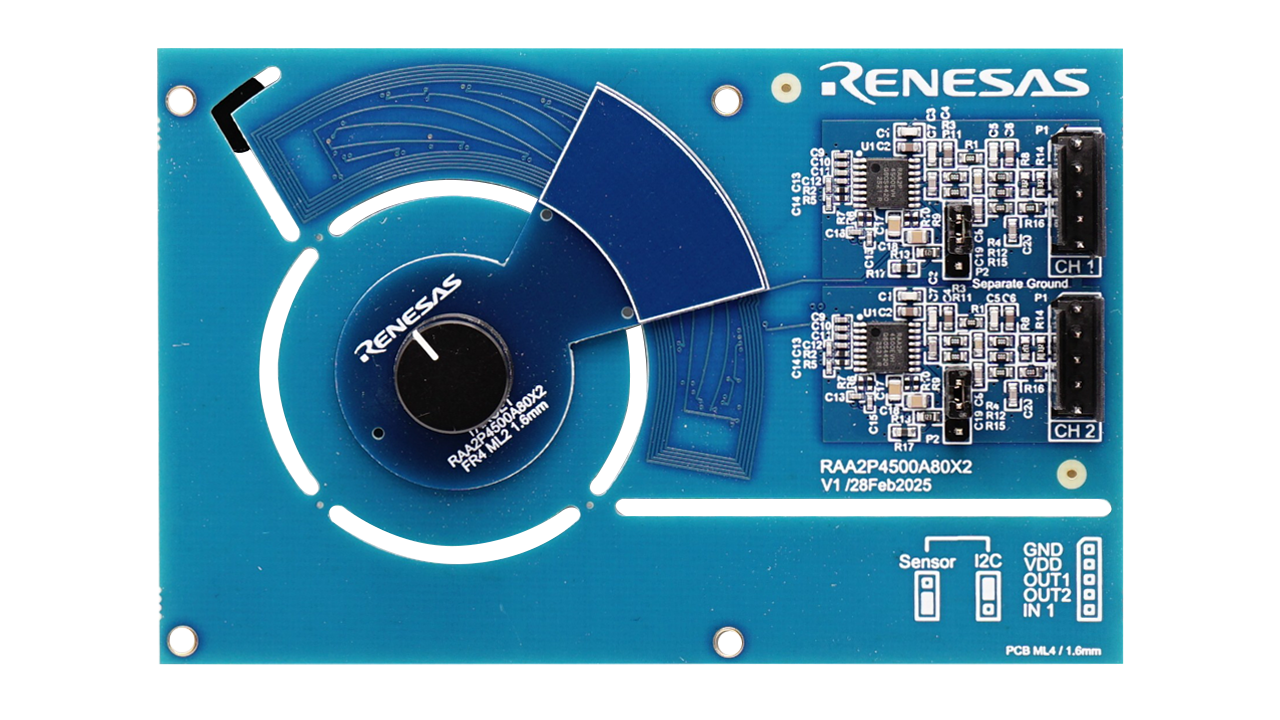

- RAA2P4500A80X2: Redundant side-shaft sensor, 62mm diameter, 80° arc design

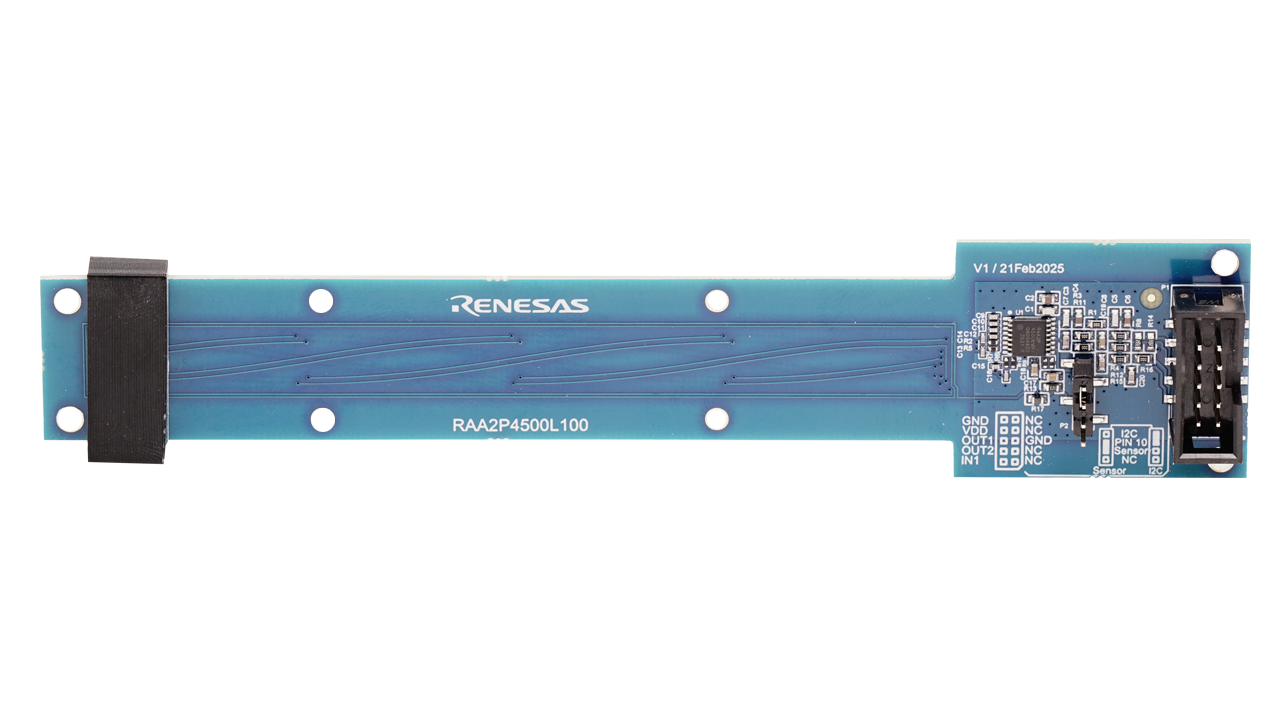

- RAA2P4500L100: Single linear sensor, 108mm design (includes long sensor/short target)
- USB-B cable and two interface cables
Features
- Robust contactless position sensing kit for automotive applications
- Configurable IC with I2C, analog, SENT, and PWM interfaces
- Suitable for 3.3V or 5.0V applications
Applications
- Gas and brake pedal sensing
- Gear shifter position detection
- Throttle position sensors
- Thermal management valves
- Park lock actuator
- Liquid level sensing
- Exhaust gas recirculation (EGR)
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide |
PDF
536 KB
The RTKA2P4500S00000BE is a contactless evaluation kit designed to assess rotary and linear sensor performance, including redundant measurement capabilities. It includes a communication board, three sensor modules, easy-to-use configuration software, and a simple-to-install GUI. This guide explains how to set up the evaluation kit and describes the hardware components, along with an overview of the GUI for sensor calibration and configuration.
|
|
| Report |
PDF
829 KB
The RAA2P4500R0100 is a single‑coil rotary position sensor design based on the RAA2P4500 inductive sensor IC. It features a compact PCB and a nominal air gap of 1.6mm. This measurement report presents angle error, signal magnitude, and gain results obtained on a precision positioning setup under defined laboratory conditions.
|
|
| PCB Design Files |
ZIP
13.76 MB
The RAA2P4500A80X2 is a rotary inductive position sensor design optimized for improved angular accuracy and stable signal behavior. This package contains the design files, including schematics, layout, and supporting documentation.
|
|
| PCB Design Files |
ZIP
11.31 MB
The RAA2P4500L100 is a linear position sensor design using the RAA2P4500 inductive sensor IC and a single‑coil configuration. The design targets high positioning accuracy at a nominal air gap of 1.6mm. This package contains the design files, including schematics, layout, and supporting documentation.
|
|
| PCB Design Files |
ZIP
11.71 MB
The RAA2P4500R0100 is a single‑coil rotary position sensor design based on the RAA2P4500 inductive sensor IC. It features a compact PCB and a nominal air gap of 1.6mm. This package contains the design files for the sensor board, including schematics, layout, and supporting documentation.
|
|
| Report |
PDF
882 KB
The RAA2P4500A80X2 is a rotary inductive position sensor design optimized for improved angular accuracy and stable signal behavior. This report presents measurement results for RAA2P4500A80X2 IC 1, including angle error, magnitude, and gain over a full mechanical rotation, captured using a multi‑axis positioning system at a nominal air gap of 1.5mm.
|
|
| Report |
PDF
893 KB
The RAA2P4500A80X2 is a rotary inductive position sensor design based on the RAA2P4500 inductive sensor IC in a single‑coil topology. This report summarizes measurement results for RAA2P4500A80X2 IC 2, including angle error, signal magnitude, and gain stability across the mechanical range, supporting performance comparison and design validation.
|
|
| Report |
PDF
765 KB
The RAA2P4500L100 is a linear position sensor design using the RAA2P4500 inductive sensor IC in a single‑coil configuration. The design targets high positioning accuracy at a nominal air gap of 1.6mm. Measurement results include linear position error, signal magnitude, and gain behavior evaluated on a controlled test bench.
|
|
| Quick Start Guide | IPS RAA2Pxxxx Evaluation Software Quick Start Guide
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This document outlines the procedures for configuring and operating the RAA2Pxxxx Evaluation Software (GUI), which is fully compatible with all evaluation kits in the RAA2Pxxxx series.
|
|
9 items
|
||
Design & Development
Software & Tools
Software Downloads
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Software & Tools - Software | RAA2Pxxxx IPS Evaluation Software (GUI)
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package contains the necessary files to install and operate the RAA2Pxxxx Evaluation Software (GUI), which is fully compatible with all evaluation kits in the RAA2Pxxxx series.
|
|
| Software & Tools - Software | RAA2P3xxx/4xxx Python Code Example
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package provides Python code for communicating with the sensor and performing compensation and calibration using the Renesas RAA2P-COMBOARD, making it suitable for quick testbench setup and automated calibration.
|
|
| Software & Tools - Software | Linearization Demo
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package includes sample code for calculating linearization points from simple measurements.
|
|
3 items
|
||
Product Options
| Part Number | Status | Stock | Sampleable | Requires Terms and Conditions |
|---|---|---|---|---|
| RTKA2P4500S00000BE | Active | In Stock | Available | Does not require acceptance of Terms and Conditions |
