Overview
Description
The RTKA2P3226S00L00BE contactless inductive position sensor evaluation kit is designed for evaluating linear sensor performance. The kit includes software for product configuration, and the GUI can be easily installed. The communication board connects seamlessly to a PC for quick setup and evaluation.
The RTKA2P3226S00L00BE kit features the RAA2P3226 magnet-free inductive position sensor IC, designed for absolute rotary, linear, or arc position sensing in industrial applications.

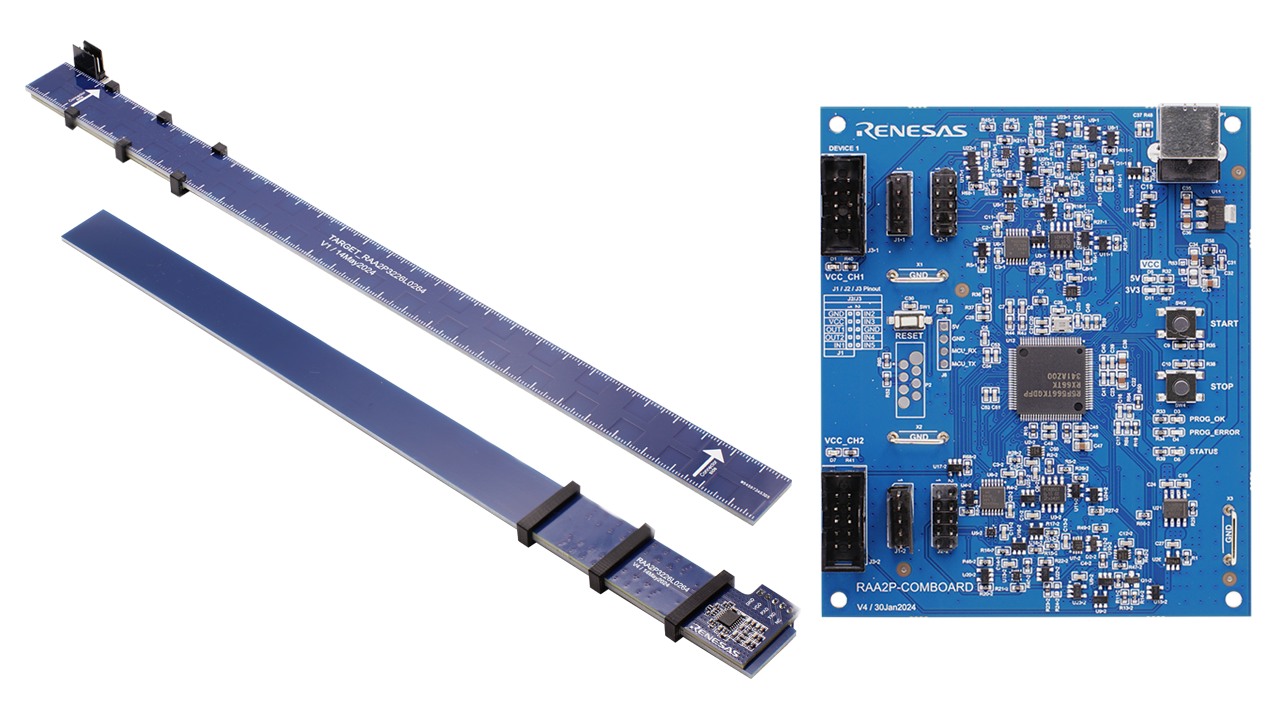

The RTKA2P3226S00L00BE evaluation kit includes the RAA2P-COMBOARD communication board, RAA2P3226L0264 264mm linear sensing module (UART), USB-B cable, two 10-pin interface cables, and one 5-pin interface cable.
Features
- High-speed, high-accuracy contactless absolute position sensing kit for industrial applications
- Configurable IC with UART, ABI, I2C, step/dir interfaces
- Suitable for 3.3V or 5.0V applications
Applications
- High-speed and high-accuracy industrial applications
- Optical encoder replacement
- Magnetic encoder replacement
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Quick Start Guide |
PDF
524 KB
The RTKA2P3226S00L00BE is a Renesas evaluation kit designed to help users quickly evaluate and familiarize themselves with the RAA2P3226 inductive position sensor. It includes a communication board and a compact linear reference design for high-accuracy, high-resolution linear stroke measurements. This quick start guide outlines essential steps to set up and operate the hardware efficiently.
|
|
| Manual - Hardware | RAA2P3226 Programming Manual
The RAA2P3226 is a high-speed, dual-channel inductive position sensor designed for rotary and linear motion detection in industrial and robotic applications. This document describes the necessary steps to set up, program, and calibrate the sensor.
|
|
| Quick Start Guide | IPS RAA2Pxxxx Evaluation Software Quick Start Guide
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This document outlines the procedures for configuring and operating the RAA2Pxxxx Evaluation Software (GUI), which is fully compatible with all evaluation kits in the RAA2Pxxxx series.
|
|
3 items
|
||
Design & Development
Software & Tools
Software Downloads
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Software & Tools - Software | RAA2Pxxxx IPS Evaluation Software (GUI)
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package contains the necessary files to install and operate the RAA2Pxxxx Evaluation Software (GUI), which is fully compatible with all evaluation kits in the RAA2Pxxxx series.
|
|
| Software & Tools - Software | RAA2P3xxx/4xxx Python Code Example
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package provides Python code for communicating with the sensor and performing compensation and calibration using the Renesas RAA2P-COMBOARD, making it suitable for quick testbench setup and automated calibration.
|
|
| Software & Tools - Software | Linearization Demo
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package includes sample code for calculating linearization points from simple measurements.
|
|
3 items
|
||
Sample Code
Sample Code
Filters
|
||
|---|---|---|
| Type | Title | Date Date |
| Sample Code | RAA2P3xxx RH850 Interface Code Example
RAA2Pxxxx is Renesas' family of high-accuracy inductive position sensors. This package offers ready-to-use sample code for seamless communication between Renesas RH850 32-bit automotive MCUs and RAA2P3xxx inductive position sensors, tailored to the selected interface.
|
|
1 item
|
||
Product Options
| Part Number | Status | Stock | Requires Terms and Conditions | Sampleable |
|---|---|---|---|---|
| RTKA2P3226S00L00BE | Active | In Stock | Does not require acceptance of Terms and Conditions | Available |
