Overview
Description

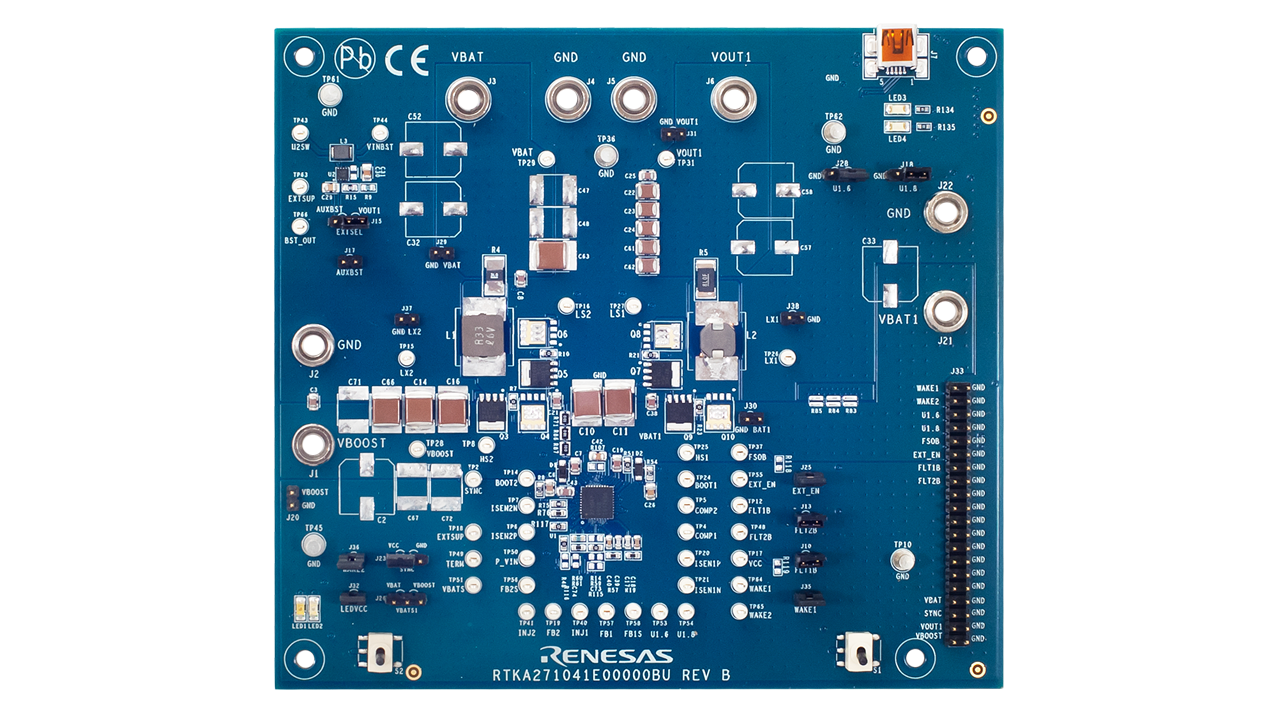

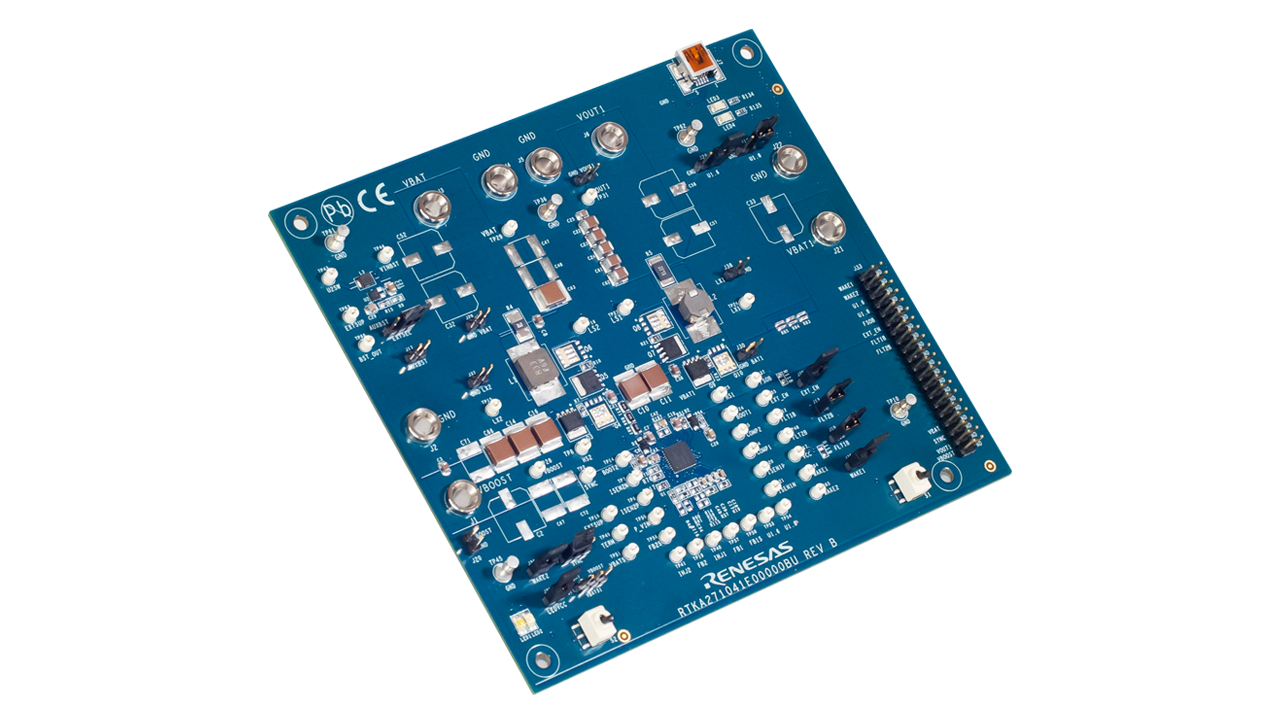

The RTKA271041E00000BU evaluation board (EVB) is for evaluating the operation and performance of the RAA271041, a cold crank boost and buck controller. The EVB evaluates the Channel 1 buck regulator that provides a system rail voltage and the Channel 2 boost that enables the system to stay in regulation during a cold crank or start-stop operation for a battery input as low as 2.1V. The EVB features overcurrent protection, overvoltage and undervoltage protection, and fault indicators for each channel. The protection features include cycle-by-cycle current limit and thermal shutdown.
Features
- RAA271041 is qualified to AEC-Q100 grade 1
- Test and measurement access to RAA271041
- Access for monitoring and test
- Access for design modification
Applications
