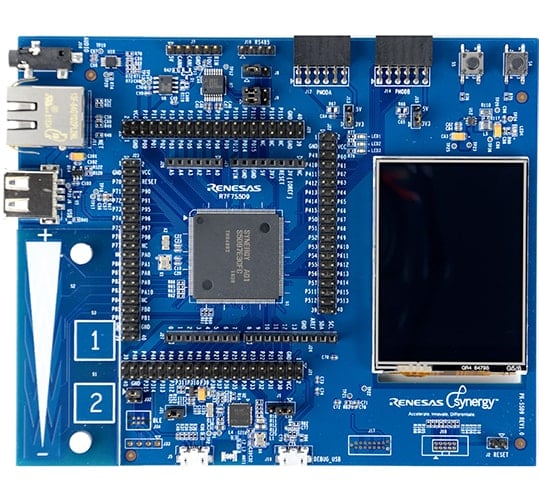

PK-S5D9 Promotion Kit

AI-generated Summary: Create a simple two-screen GUI application using GUIX Studio for SK-S7G2 and PK-S5D9 Synergy MCU kits. Configure hardware functions such as LCD, SPI, and I2C, manage threads, message passing, interrupts, LCD driver, and touchscreen. Develop and debug the project in e2 studio using the Renesas Synergy Software Package, which integrates ThreadX RTOS and X-Ware stacks. The package includes source files like guiapp_event_handlers.c and lcd_setup.c. The guide covers project creation, configuration, GUI design, custom controls, and running the application with touchscreen interaction.

AI-generated Summary: The document provides a comprehensive look-up table for Synergy MCU Kits, listing current and new orderable part numbers to assist customers in ordering through distributors. It emphasizes precautions for handling microprocessing and microcontroller units, including electrostatic discharge prevention, power-on processing, signal input during power-off, unused pin handling, clock signal stability, and voltage waveform considerations. It also covers prohibitions on accessing reserved addresses, product differences, and safety and legal disclaimers. The document includes URLs for support, software, and additional resources related to the Synergy Platform. It highlights quality grades and usage restrictions for Renesas products, emphasizing user responsibility for safety and compliance.

AI-generated Summary: The Cellular Framework provides a generic API interface to communicate with various cellular hardware modules without vendor-specific code. It abstracts the application from device drivers, enabling easy porting across modules. Key components include the application interface, Network Stack Abstraction Layer (NSAL) for NetX TCP/IP, cellular device drivers using AT commands over UART, and BSD socket-compatible APIs. The framework supports both host-based and on-chip TCP/IP stacks, using PPP for WAN communication and authentication. Initialization involves configuring the module, provisioning with APN and credentials, and establishing network connectivity.

AI-generated Summary: The document details the setup and configuration of the PE-HMI1 and DK-S7G2 boards for running the Weather Panel application, including specific DIP switch settings and J-Link programming interface connections. It highlights the application’s use of complex HMI designs with GUIX Studio, multi-threading with ThreadX RTOS, and Synergy messaging for inter-thread communication. The Weather Panel leverages Synergy S7G2 or S5D9 MCUs based on ARM Cortex-M4, utilizing various peripherals and drivers to streamline embedded application development.

AI-generated Summary: This document explains how to connect and configure a target board for use with the NetX Web Server on the Renesas Synergy Platform. It details setting up the SEGGER J-Link debugger, enabling Ethernet ports via DIP switches on specific DK-S7G2 board versions, and connecting the board to a PC using an Ethernet cable. It also guides configuring a static IP address on the PC and selecting a unique IP address for the board. Instructions for running the command prompt as an administrator and using the ipconfig command to verify network settings are included.

AI-generated Summary: The USBX Host Class Hub Module manages USB hubs, supporting stand-alone or compound devices, self-powered or bus-powered modes, and cascading of up to five hubs. It requires defining USB host controllers and device classes for operation. The module uses USB controller interrupts and transfer module interrupts, with priority settings configurable in the Synergy Configuration tool. Integration involves adding the module to a thread stack via the SSP configurator, which automatically includes necessary lower-level modules. The module itself has no user APIs or configurable properties; configuration occurs through associated modules.

AI-generated Summary: The document details secure data protection for embedded systems focusing on Data at Rest using Synergy MCUs. It covers access control methods like Write Once and Read/Write protection for internal SRAM and flash memory. The document emphasizes encryption and access control as key security measures, with example projects demonstrating internal storage protection. It also discusses data topology considerations and future plans for securing external storage.

AI-generated Summary: The guide explains how to import and build projects using IAR Embedded Workbench (EW) for Renesas Synergy. It details opening the workspace file from an extracted example project, viewing the project structure, and configuring settings for the Synergy Standalone Configurator (SSC) and Synergy Software Package (SSP). It also covers setting the SSC/SSP path and license file, and launching the Synergy Standalone Configurator within the IDE to generate project files.

AI-generated Summary: The Renesas Synergy BLE Framework provides a generic interface for Bluetooth Low Energy (BLE) stack APIs, enabling simplified and portable application development across different BLE modules. It supports Bluetooth v4.2, ThreadX RTOS, GAP and GATT profiles, security modes, bonding, and white list features. The framework architecture includes GAP/GATT APIs, on-board profile APIs, and BLE stack integration, interacting with device drivers and hardware abstraction layers for communication with BLE modules like RL78G1D.

AI-generated Summary: The DK-S7G2 kit powers on via a 5 V barrel connector, indicated by LED3 status lights. Connecting the USB J-Link OB to the PC enables programming through a batch file using SEGGER J-Link, with a recommended firmware update. The demonstration application loads automatically, initializing LEDs and Ethernet indicators. The LCD displays a splash screen with date and time. Users can access a Thermostat Demonstration, adjust settings such as time, date, and sound, and navigate the Thermostat Control Menu for further controls.
