PTX205R NFC Reader Evaluation Board for IoT Applications

PTX205RIOTEB

Active
Order Now

The PTX205RIOTEB combined with the Config Tool GUI allows an easy and fast evaluation of the PTX205R NFC IC performance. It enables rapid performance assessment and supports engineers in integrating NFC functionality through accessible hardware, software, and development resources.

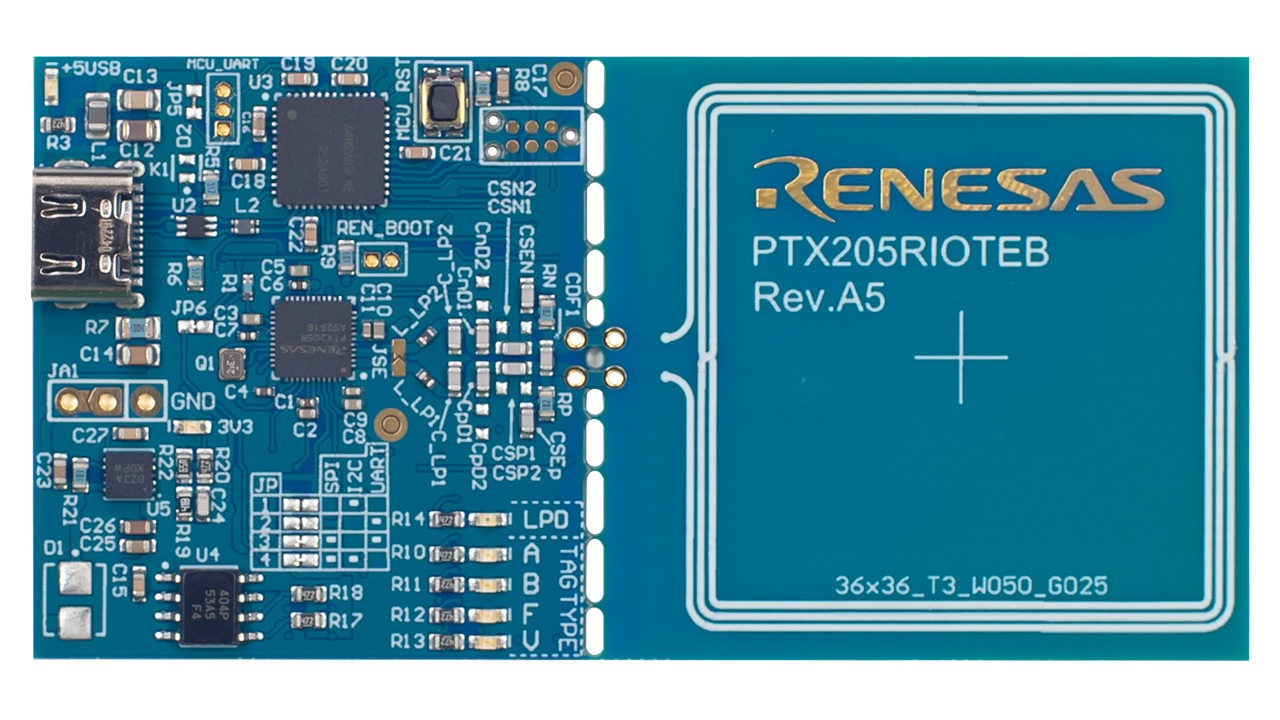

PTX205RIOTEB Evaluation Board - Top

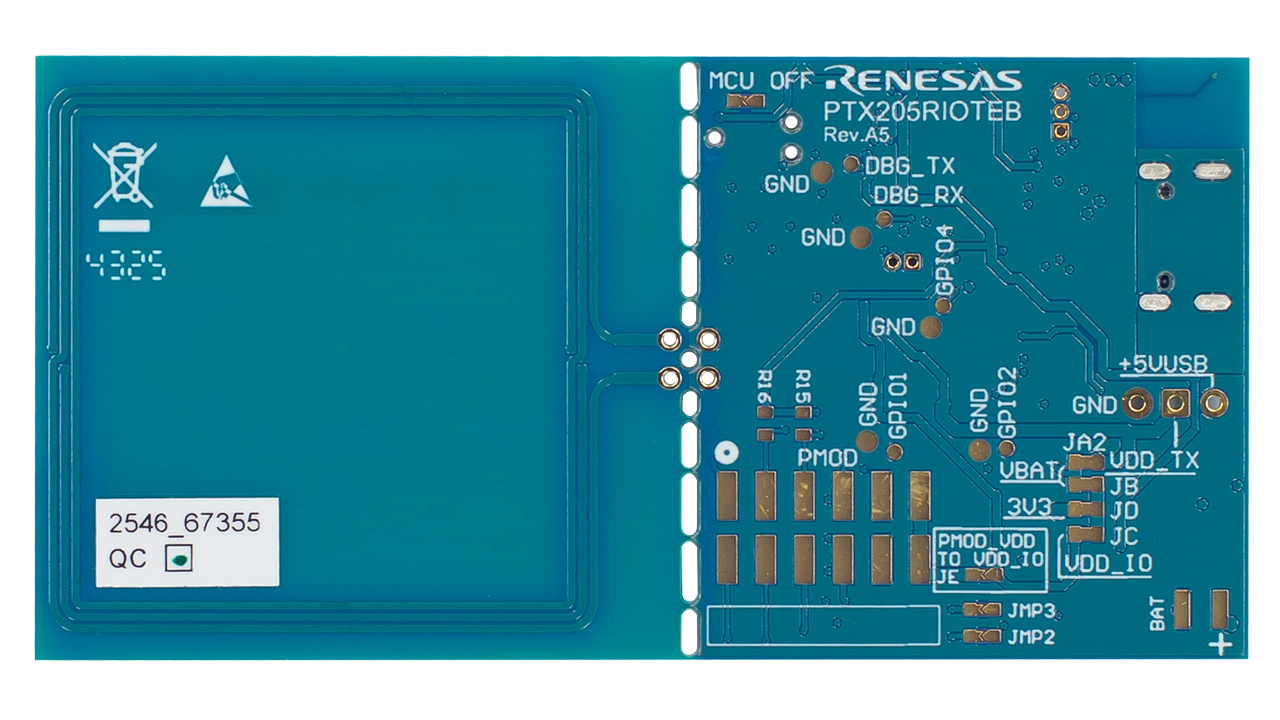

PTX205RIOTEB Evaluation Board - Bottom
PTX205RIOTEB Evaluation Board - Top
PTX205RIOTEB Evaluation Board - Bottom
  • The PTX205RIOTEB enables quick evaluation of NFC capabilities:
    • Antenna matching and diagnostic functionality
    • Reader/Writer performance
    • Host card emulation performance
    • FeliCa Data Terminal Equipment (DTE) operation
    • NFC Data Exchange Format (NDEF) data exchange
Featured Documentation
Type Title Date
Manual - Hardware
PTX205RIOTEB Evaluation Kit Manual (Rev.A5)
PDF 5.48 MB
PCB Design Files
Altium Design Files for PTX205RIOTEB Rev.A5
ZIP 5.73 MB
Manual - Software
PTX2xxR RUL Config Tool User Manual
3 items

Software Downloads
Type Title Date
Software & Tools - Software
PTX2xxR RUL Config Tool
ZIP 51.57 MB
1 item
Part NumberStatusStockBudgetary Price (USD)Sampleable
PTX205RIOTEBActiveOut of Stock1u | $138Available
