This product is a CPU board for motor control equipped with RA2T1. Motor control using RA2T1 can be easily realized by using it in combination with a supported inverter board. By using a supported communication board, the CPU board can be electrically isolated from the PC for safe motor control evaluation and debugging.

Supported inverter boards (kits)
MCI-LV-1 (P/N: RTK0EM0000S04020BJ)
Supported communication board
MC-COM (P/N: RTK0EMXC90S00000BJ)

Features

Compatible with Renesas Motor Workbench, a motor control development support tool
Equipped with on-board debugger circuit

Applications

Motor Control

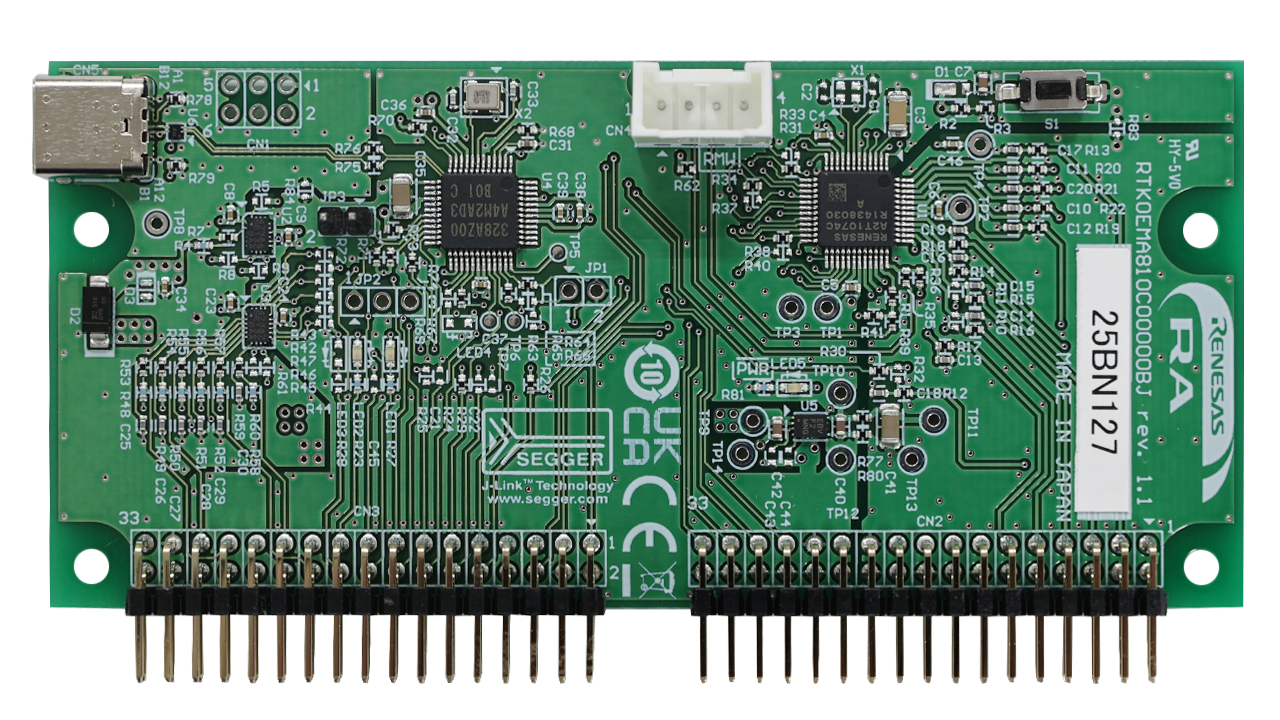

RTK0EMA810C00000BJ Development Board - Top

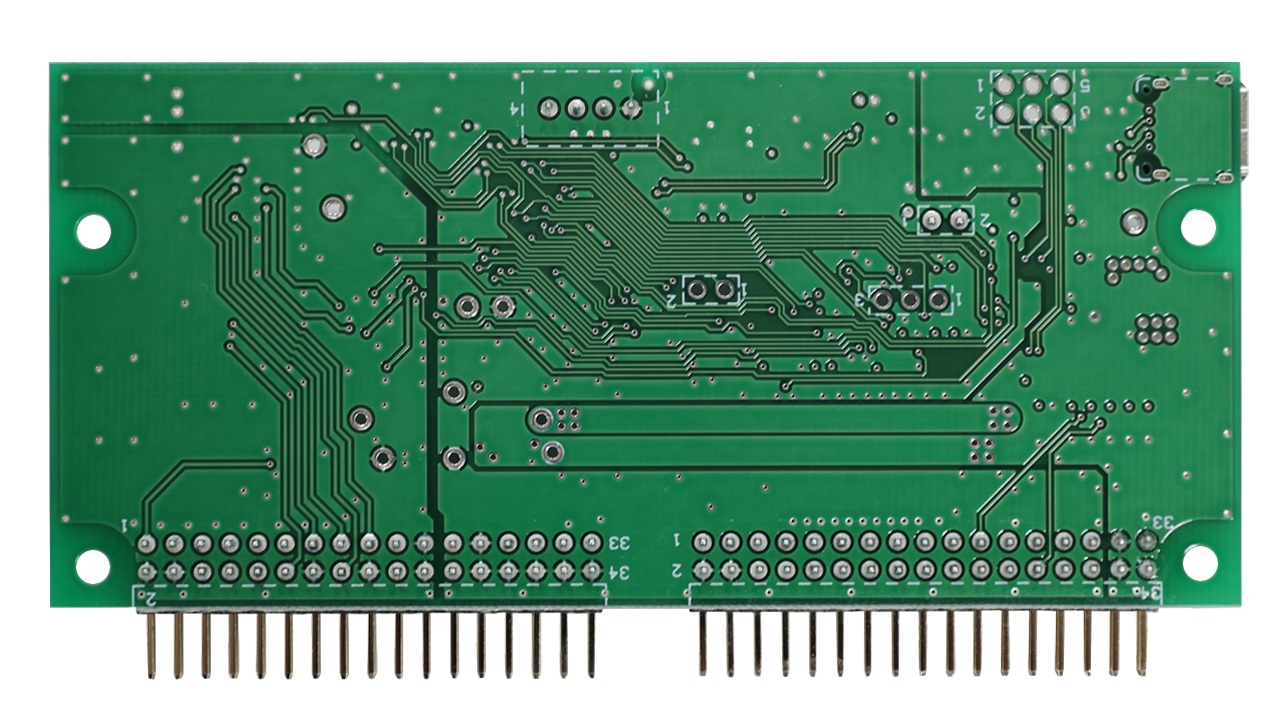

RTK0EMA810C00000BJ Development Board - Bottom

Products in the Design

3D illustration featuring top and bottom of LFQFP ic chip package with 48 leads

RA Arm Cortex-M MCUs

RA2T1

64MHz Arm Cortex-M23 Motor Control Microcontroller

Datasheet

ISL9005A

LDO with Low ISUPPLY, High PSRR

Sample & Buy

RTK0EMA810C00000BJ

1u | $152.94Budgetary Price

Add-on Hardware

Additional boards that work with this platform. Some may be required for full functionality or to evaluate specific features.

Renesas Flexible Motor Control Inverter Board – Low Voltage 48V/10A for Three-Phase BLDC/PMSM Motor

MCI-LV-1

Evaluate low-voltage three-phase BLDC and PMSM motor control using a flexible inverter board. Designed to work with compatible CPU boards for rapid motor control development.

Renesas Flexible Motor Control Communication Board

MC-COM

Enable safe and isolated serial communication between Renesas MCUs and motor control systems. Supports reliable debugging and evaluation in motor control development environments.
