ISL85413DEMO1Z

Active

Synchronous Buck Demo Board with 3.6V to 40V Input Range, 3.3V 300mA Output

Order Now
ISL85413DEMO1Z, ISL85412DEMO1Z User Guide

Overview

The ISL85413DEMO1Z demonstration kit is intended for use in point-of-load (POL) applications sourcing from 3.5V to 40V. The kit is used to demonstrate the performance of the ISL85413 wide VIN, low quiescent current, high-efficiency, synchronous buck regulators with 300mA of output current.

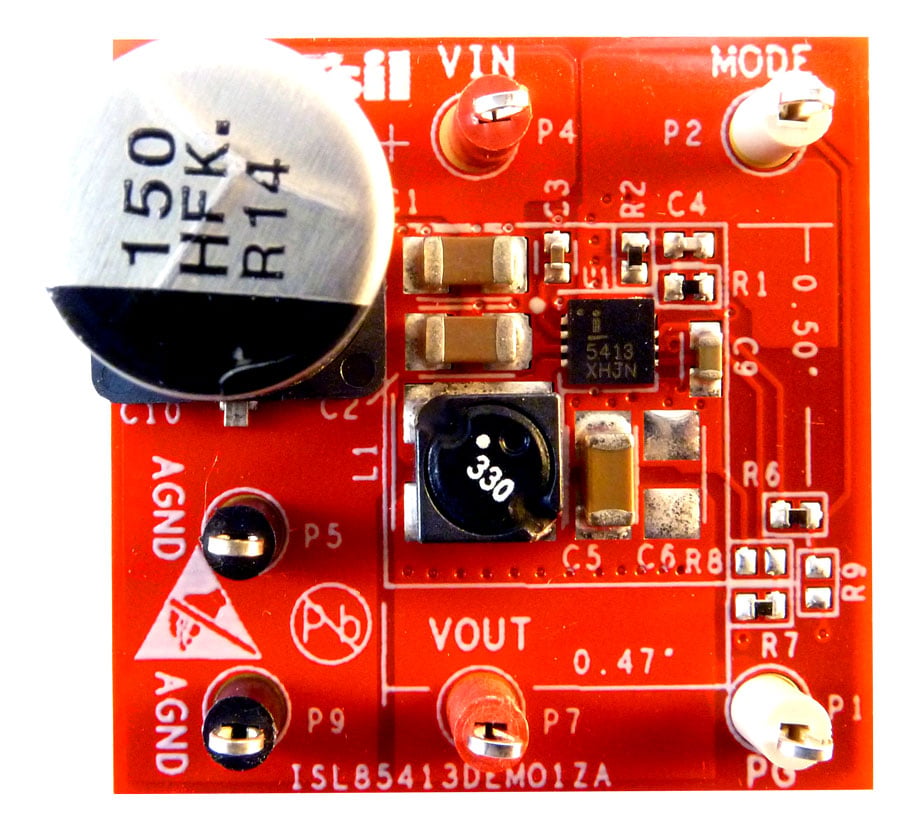

ISL85413DEMO1Z Buck Regulator Demo Board
  • Small, compact design
  • Switch selectable EN (enable/disabled)
  • Switch selectable mode (auto PFM/forced PWM)
  • Connectors, test points and jumpers for easy probing
