Light-to-Digital Output Sensor with I²C Interface Evaluation Board

ISL76682EVAL1Z

Last Time Buy
Order Now

The ISL76682EVAL1Z evaluation board is a RoHS compliant evaluation board designed for exploring the operation of the ISL76682 light-to-digital output sensor. The evaluation board is an easy-to-use platform for testing most of the specifications and functionalities of the ISL76682. The board has a self-contained USB connection that powers the board.

Features

  •  Low power
    • 65μA maximum operating current to IC
    • 0.5μA maximum shutdown current to IC
  • Ideal spectral response
    • Close to human eye response
    • Excellent UV rejection
  • Easy to use
    • Simple I2C and SMBus compatible output
  • Small form factor
    • 2.0 × 2.1 × 0.7 mm 6Ld ODFN package
  • 3.3V regulator located on USB board
  • AEC-Q100 qualified

Applications

Building Automation, Vehicle Control Systems, Cameras, Appliances, Retail, Automation & Payment

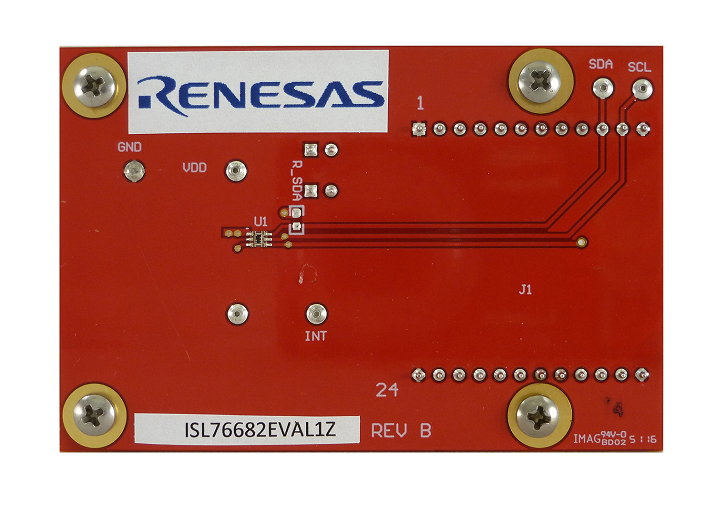

ISL76682EVAL1Z - Evaluation Board (top)

Products in the Design

3D illustration featuring top and bottom views of ODFN chip package with 6 lead count.
General Parts
ISL76682 Last Time Buy
Automotive Low Power, High Sensitivity, Light-to-Digital Sensor With I²C Interface
Datasheet

Sample & Buy

ISL76682EVAL1Z - Evaluation Board (top)

ISL76682EVAL1Z

Last Time Buy
Pb (Lead) Free:Yes
ECCN (US):EAR99
HTS (US):8473.30.1180
1u | $148.00Budgetary Price
