Overview
Description

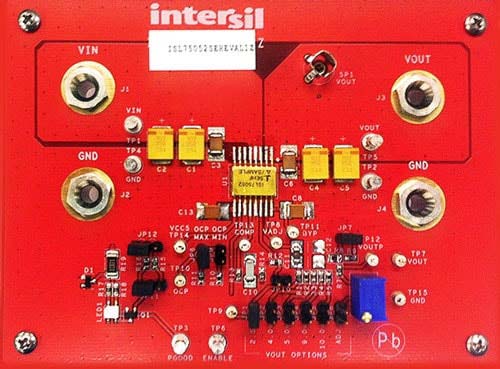

The ISL75052SEHEVAL1Z evaluation board provides a simple platform used to evaluate the performance of the ISL75052SEH radiation hardened, high-performance, adjustable, low-voltage, high-current, low-dropout linear regulator (LDO) specified at 1.5A rated output current for input voltages from 4.0V to 13.2V. The LDO outputs can be adjusted from 0.6V to 12.7V by means of two preset resistors. Salient features of the part include:
- TID, ELDRS and SEE rated
- Very fast load transient response
- ±2.0% guaranteed VOUT accuracy over line, load and temperature
- Typical dropout of 225mV at 1.5A
- EN feature
- PG feature
- OCP feature
- Short-circuit and over-temperature protection
Features
- DLA SMD 5962-13220
- Input supply range 4.0V to 13.2V
- Output current up to 1.5A at a TJ = +150 °C
- Best-in-class accuracy ±1.5%
- Over line, load and temperature
- Ultra-low dropout:
- 75mV dropout (typ.) at 0.5A
- 225mV dropout (typ.) at 1.5A
- Noise of 100µVRMS (typ.) between 300Hz to 300kHz
Applications
Videos & Training
The low dose rate ionizing dose response of semiconductors has become a key issue in space applications. We are addressing this changed market by introducing wafer by wafer low dose rate acceptance testing as a complement to current high dose rate acceptance testing.
Related Resources
Support
Support Communities
- Vout equation for ISL75052SEH
Hello, Can you please provide the equation for the output voltage for the ISL75052SEH linear regulator? The equation does not seem to be listed in the datasheet, and the standard equation of: Vout = (1 + (Rh / Rl)) does not provide a result with sufficient accuracy for my application. Specifically, the ...
