Radiation Hardened 40V Current Sense Amplifiers Evaluation Board

ISL73100SEHEV1Z

Active
Order Now

Overview

The ISL73100SEHEV1Z evaluation board is designed to evaluate the performance of the ISL70100SEH and ISL73100SEH radiation hardened 40V current sense amplifiers.

Built using the Renesas proprietary PR40 Silicon-on-Insulator (SOI) process, the ISL70100SEH and ISL73100SEH are transconductance amplifiers that monitor current using an external sense resistor and output a current proportional to the sensed voltage. The overall voltage gain is adjustable with a single resistor from the output to ground.

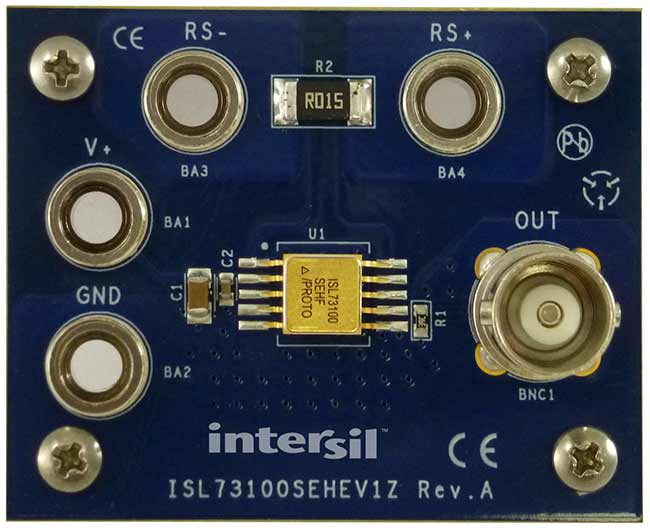

ISL73100SEHEV1Z Radiation Hardened 40V Current Sense Amplifier Evaluation Board
  • Large current sense resistor footprint (2512)
  • Easy gain configuration using a single resistor
  • Kelvin sensing for improved measurement accuracy
