Overview
Description

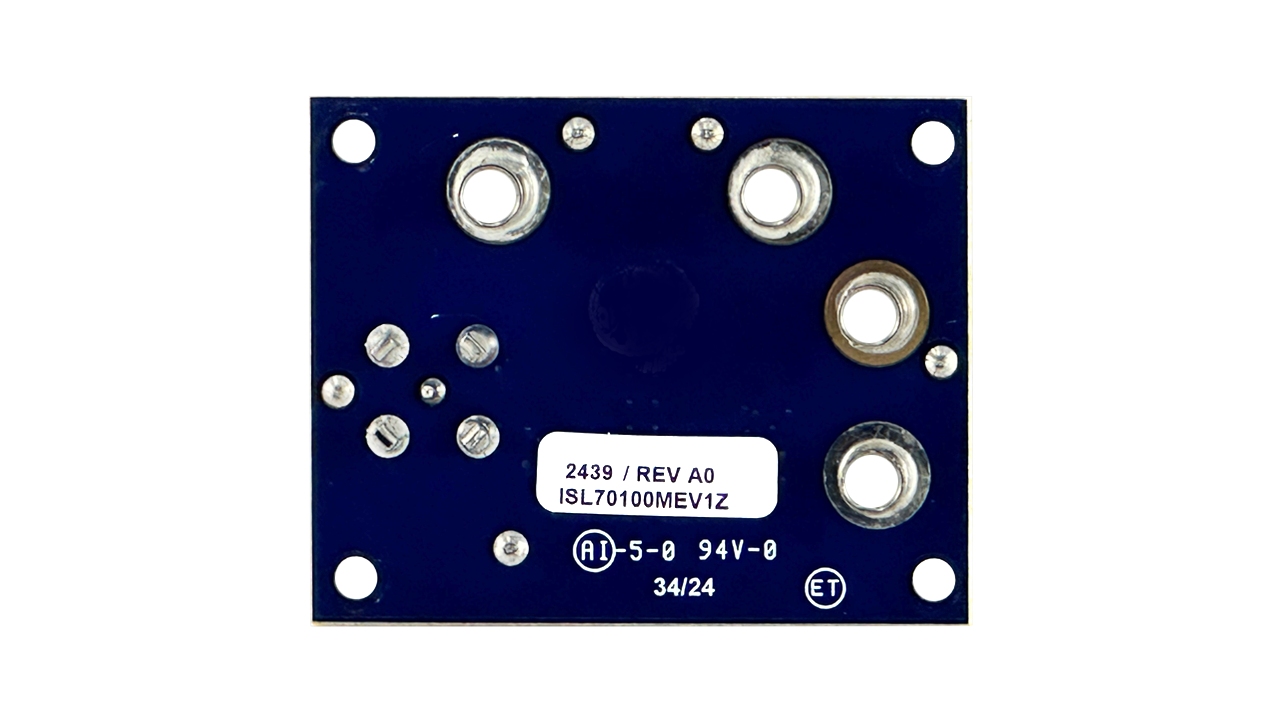

The ISL70100MEV1Z evaluation board is used to evaluate the performance of the ISL70100M radiation tolerant 40V current sense amplifier.
Built using the Renesas proprietary PR40 Silicon-on-Insulator (SOI) process, the ISL70100M is a transconductance amplifier that monitors current using an external sense resistor and outputs a current proportional to the sensed voltage. The overall voltage gain is adjustable with a single resistor from the output to ground.
Features
- Large current sense resistor footprint (2512)
- Easy gain configuration using a single resistor
- Kelvin sensing for improved measurement accuracy
Applications
- High-side or low-side current sensing
- Battery monitoring
- Power management
- Motor control
- Command, telemetry and control system
Documentation
Featured Documentation
Log in required to subscribe
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Development Tools | PDF 2.63 MB | |
| Technical Brief | PDF 344 KB | |
| Brochure | PDF 285 KB | |
3 items
|
||
Product Options
| Part Number | Status | Stock | Sampleable | Pb (Lead) Free | ECCN (US) | HTS (US) |
|---|---|---|---|---|---|---|
| ISL70100MEV1Z | Active | Out of Stock | Available | Yes | EAR99 | 8473.30.1180 |
