Overview
Description

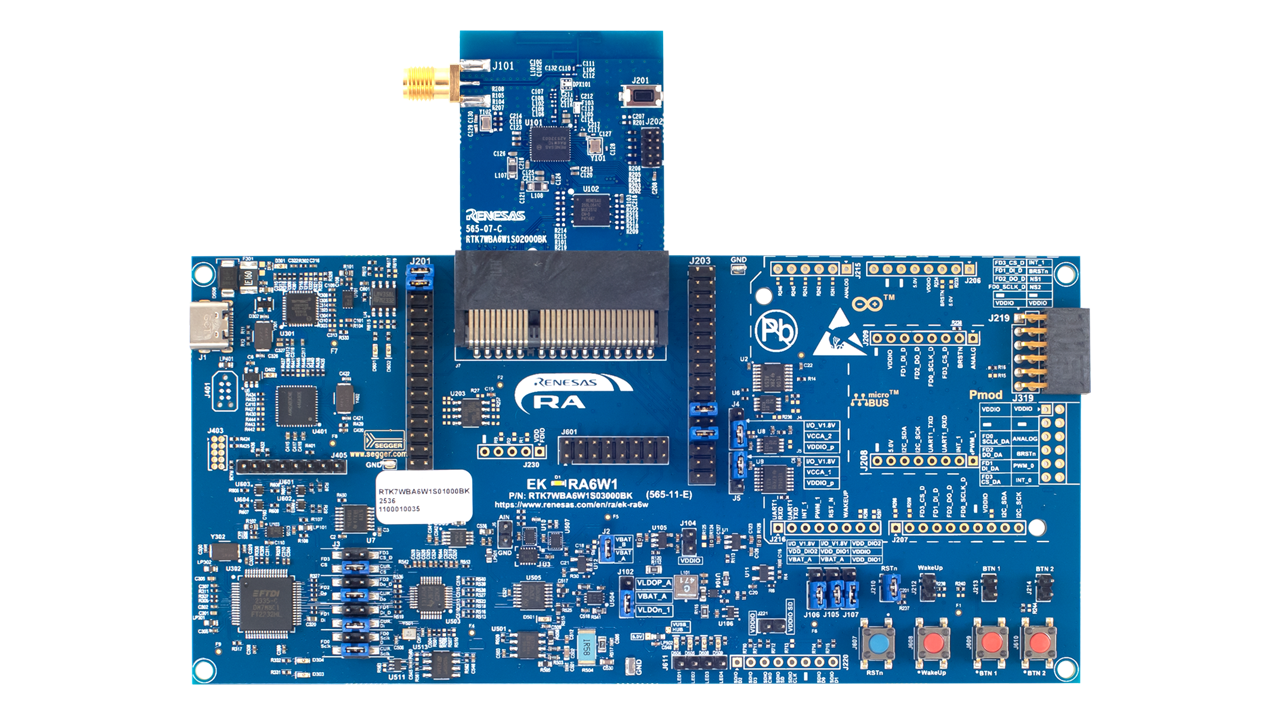

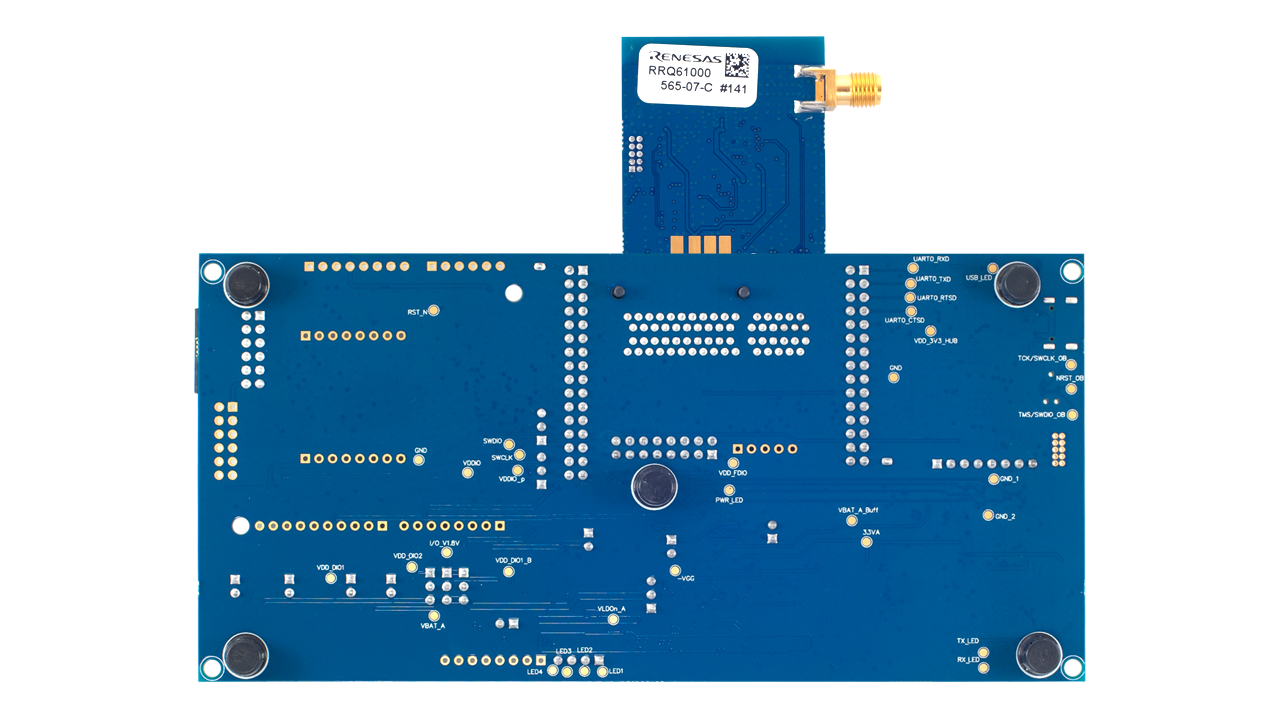

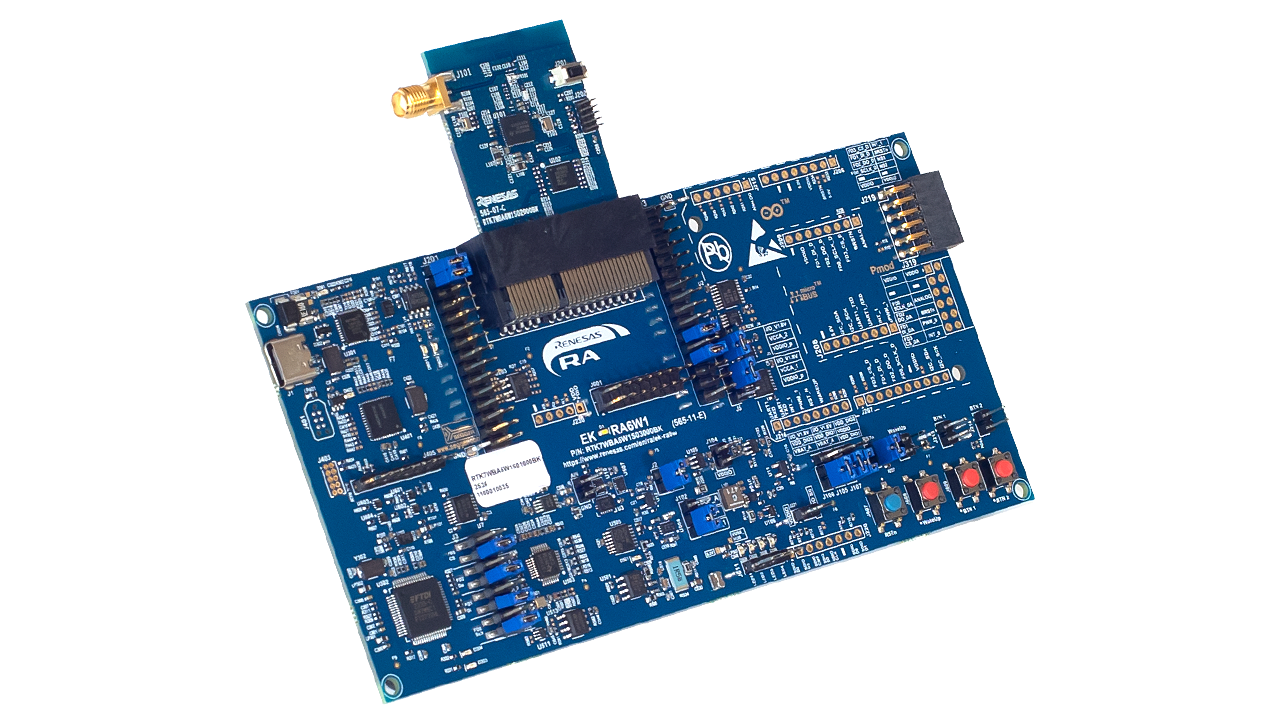

The EK-RA6W1 is a comprehensive development kit consisting of a main board and daughter card. This configuration facilitates easy software application development, providing tools and resources that simplify the process of writing and testing code. The EK-RA6W1 also supports RF (radio frequency) testing, allowing developers to measure and optimize performance, as well as evaluate how their developments integrate with cloud services. A unique feature of this kit is the integrated power profiler circuit, which enables power consumption measurements during low-power sleep with precision down to 1µA. To support full software application development and system validation, the EK-RA6W1 offers multiple expansion options, including mikroBUS™, Pmod™, and Arduino® UNO connectors. These standardized interfaces make it easy to add sensors, displays, etc. to EK-RA6W1.
Features
- Arm® Cortex®-M33: 160MHz, 704KB SRAM
- Wi-Fi 6, 802.11a/b/g/n/ac/ax 2.4/5GHz, 1x1, 20MHz, MCS9 115Mbps, OFDMA, TWT
- 8MB QSPI Flash, 8MB pSRAM
- 2x SPI, 3x UART, 2x I2C, SDIO 3.0 (Device)
- 12-bit ADC, I2S, PDM, PWM, Upto 28x GPIO
- Integrated dual-band antenna
- Integrated low-power measurements circuit
Applications
Documentation
|
|
|
|
|---|---|---|
| Type | Title | Date |
| Manual - Hardware |
PDF
19.13 MB
The EK‑RA6W1 and EK‑RA6W2 evaluation kits provide a comprehensive hardware platform for evaluating RA MCU-based designs. This manual describes system‑level architecture, supported MCU and module variants, and board features, with guidance on configuring jumpers and enabling or disabling hardware functions for efficient evaluation and application development.
|
|
| PCB Design Files |
ZIP
62.74 MB
Design files for the EK-RA6W1 main evaluation board. This package includes schematics, BOM, PCB layout, and Gerber files for the primary development platform used to evaluate RA6W1 devices and RRQ610x1 module families. Use these files as a reference for hardware development, board customization, system validation, and embedded wireless design.
|
|
| PCB Design Files | EK-RA6W1 RRQ61001 Module Daughter Board Design Files
Design files for the EK-RTK7WBRQ61S0x000BK sub-board support evaluation of the RRQ61001 module when used with the main development kit. The package includes schematic, BOM, PCB layout, and Gerber files to enable integration, validation, and customization of the sub-board within RF and wireless system designs.
|
|
| PCB Design Files | EK-RA6W1 SoC Daughter Board Design Files
Design files for the RA6W1 SoC daughter board used with the EK-RA6W1 development platform. The package includes schematics, BOM, PCB layout, and Gerber files for evaluating and developing applications based on the RA6W1 wireless microcontroller. These files support hardware integration, design modification, prototyping, and system evaluation.
|
|
| Certificate |
PDF
507 KB
The declaration describes in conformity with the essential cybersecurity requirements of the relevant Union harmonization legislation, namely the Radio Equipment Directive (RED) 2014/53/EU.
|
|
| Manual - Development Tools |
PDF
35.61 MB
The RA6W1 is a highly integrated, ultra-low-power Wi-Fi 6 MCU designed to enable the development of complete Wi-Fi solutions on a single device. To support evaluation and IoT application development, the EK-RA6W1 kit offers an ideal environment, combining hardware accessibility with robust software tools. Leveraging the Renesas e2 studio Integrated Development Environment (IDE) and the Flexible Software Package (FSP), developers can accelerate the creation of Wi-Fi prototypes and applications.
|
|
| Report | PDF 187 KB 日本語 | |
7 items
|
||
Design & Development
Lab on the Cloud
Lab on the Cloud
Product Options
| Part Number | Status | Stock | Budgetary Price (USD) | Sampleable |
|---|---|---|---|---|
| RTK7WKA6W1S04000BK | Active | In Stock | 1u | $69 | N/A |
