8V97051L-EVK

Active

Low-Power Wideband Fractional RF Synthesizer Evaluation Kit

Order Now
8V9705x Evaluation Board Manual

Overview

The 8V97051L-EVK is designed to help customers evaluate the 8V97051L RF synthesizer/phase-locked loop (PLL). When the board is connected to a PC running Timing Commander™ software through USB, the device can be configured and programmed through a graphical interface or using register settings to generate frequencies with best-in-class performance.

8V97051L-EVK Evaluation Board

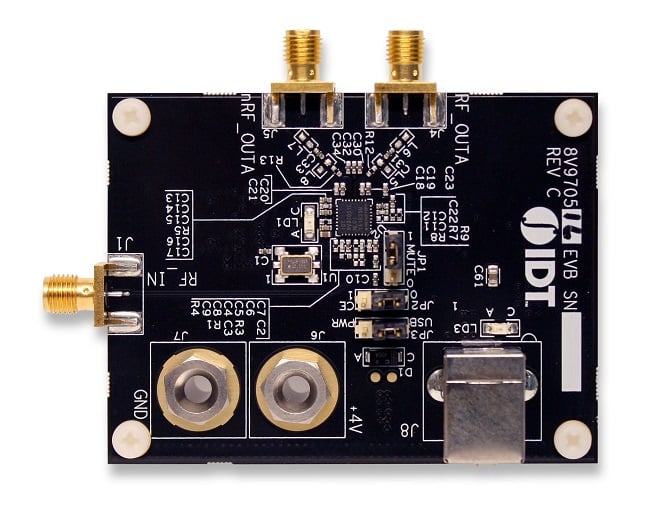

8V97051L-EVK Evaluation Board (Top)
8V97051L-EVK Evaluation Board
8V97051L-EVK Evaluation Board (Top)
  • Board comes pre-populated with the 8V97051L
  • Fully configurable through the Timing Commander software
  • USB powered for portability
  • Onboard 25MHz TCXO plus alternate SMA input provides flexibility for input reference selection
