General-Purpose Microcontrollers with Excellent Low-Power Performance and Rich Capacitive Touch Channels
Jump to Page Section:
Overview
Description
The RL78/G22 microcontroller features the industry's lowest current consumption levels of 37.5µA/MHz during CPU operation and 200nA during STOP, as well as a rich array of capacitive touch channels. The lineup of new-generation RL78 general-purpose microcontrollers is extended by offering a variety of 16-48-pin packages and 32-64 KB of flash memory.
Along with a maximum operating frequency of 32 MHz, a wide operating voltage range of 1.6 V to 5.5 V, and enhanced analog and security functions, the SNOOZE mode sequencer significantly reduces power consumption during intermittent operation. A rich development environment is provided for the RL78/G22 including an evaluation board (Fast Prototyping Board) that enables program writing/debugging without additional tools, simply by connecting a USB cable, and a Smart Configurator that facilitates design using a GUI. It is also compatible with the existing RL78 family and can be a seamless replacement, making it suitable for a wide range of applications from home appliances and consumer electronics to industrial equipment.
Features

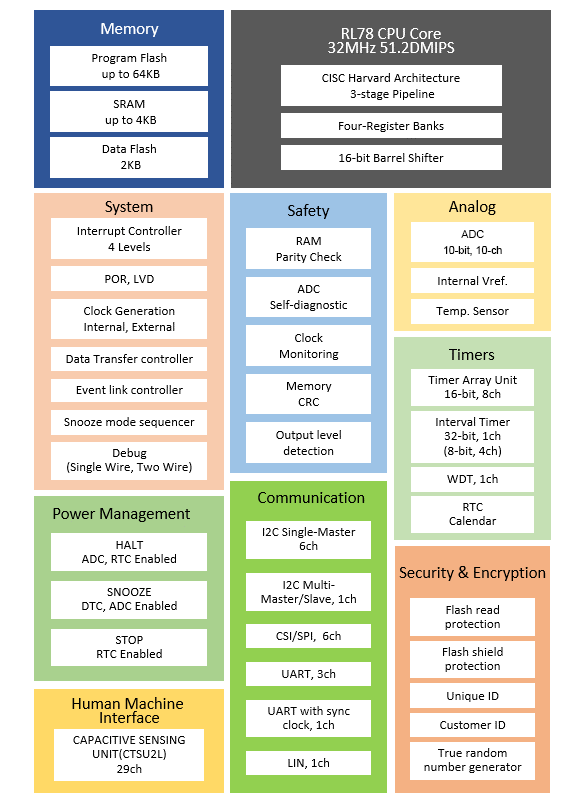

- CPU: RL78 core, Max. 32MHz
- Voltage: 1.6V to 5.5V
- Package: 16-pin to 48-pin
- Memory: Program Flash: 32-64KB, SRAM 4KB, Data Flash 2KB
- Operating temperature range: up to 105°C
- Enhanced Capacitive Sensing Unit (CTSU2L)
- Timer: 16-bit Timer (ch) x 8, Watchdog Timer (ch) x 1, 32-bit Interval Timer x 1 ch
- PWM: PWM Output x 7
- Analog function: 10-bit A/D Converter (ch) x 10
- On-chip Oscillator Freq. (MHz): High-Speed: up to 32MHz
- Middle-Speed: up to 4MHz
- Low-speed: 32.768kHz
- Snooze mode sequencer
- Event link controller
- Others: RTC, Power-On Reset, Low Voltage Detection
- Packages: SSOP, LQFP, HWQFN, WFLGA
Applications
Applications
- General Purpose
- Consumer Applications
- Home Appliances
- Industrial Automation
- Building Automation
