PCIe Gen6 2:16 Clock Multiplexer
Jump to Page Section:
Overview
Description
The RC19216 is a 2:16 PCIe Gen6 multiplexer that is backward compatible to earlier PCIe generations. The RC19216 provides ultra-low additive jitter and reduced in-to-out delay performance for better design-margin and incorporates several features for easier and more robust design.
Features
- LP-HCSL outputs eliminate up to 64 terminated resistors.
- PCIe Gen 1–6 compliance
- 2:16 or two 1:8 multiplexer options
- Drive both source-terminated and double-terminated loads selectable 85Ω and 100Ω output impedance
- Open-drain LOS (Loss-Of-Signal) indication output
- Power down tolerance (PDT)
- Flexible startup sequencing (FSS)
- Automatic clock parking (ACP)
- Dedicated OE# pins to control group output
- 4-wire Side-Band interface supports high-speed serial output enable
- SMBus write protection features with 9 selectable addresses

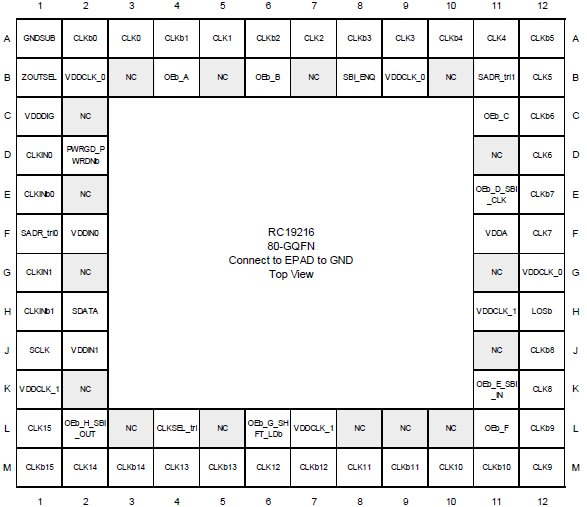

- 6 × 6 mm 80-GQFN package
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF793 KB
|
Datasheet
|
||
PDF91 KB
|
Application Note
|
||
PDF1.99 MB
|
Application Note
|
||
PDF480 KB
|
Application Note
|
||
PDF235 KB
|
Application Note
|
||
PDF495 KB
|
Application Note
|
||
PDF442 KB
|
Application Note
|
||
PDF160 KB
|
Application Note
|
||
PDF565 KB
|
Application Note
|
||
PDF2.40 MB
|
Overview
|
||
PDF1.83 MB
|
Overview
|
||
PDF100 KB
|
Product Change Notice
|
||
PDF125 KB
|
Schematic
|
||
PDF1.35 MB
|
White Paper
|
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| 85, 100 | Tray | -40 to 105°C | 80 | VFQFPN | Get Samples, | |
| 85, 100 | Reel | -40 to 105°C | 80 | VFQFPN |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
PCIe Gen 6 RC19 Family Clock Buffer and Multiplexer Overview
The RC family are PCIe Gen6 clock buffer and multiplexer solutions provide industry's smallest and most compact footprint.
