PCIe Gen6 13-Output Clock Buffer
Jump to Page Section:
Overview
Description
The RC19013 is a 13-output PCIe Gen6 buffer that is backward compatible to earlier PCIe generations. The RC19013 provides ultra-low additive jitter and reduced in-to-out delay performance for better design-margin and incorporates several features for easier and more robust design.
Features
- LP-HCSL outputs eliminate up to 52 terminated resistors
- PCIe Gen 1–6 compliance
- Drive both source-terminated and double-terminated loads
- Selectable output slew rate via pin
- Support both 85Ω and 100Ω output impedance versions
- Open-drain LOS (Loss-Of-Signal) indication output
- Power down tolerance (PDT)
- Flexible startup sequencing (FSS)
- Automatic clock parking (ACP)
- Dedicated OE# pins to control group output
- 4-wire Side-Band interface and device daisy-chaining
- SMBus write protection features with 9 selectable addresses

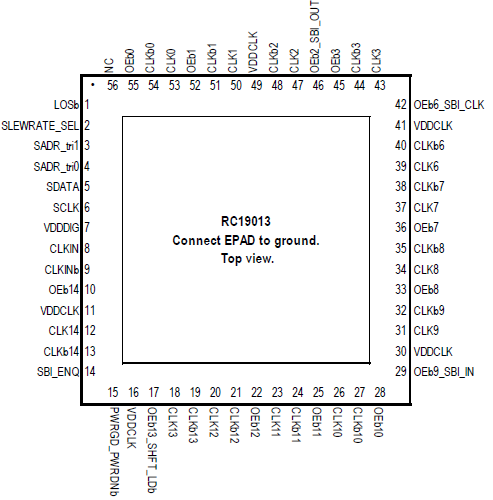

- 7 × 7 mm 56-VFQFPN package
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF1.34 MB
|
Datasheet
|
||
PDF91 KB
|
Application Note
|
||
PDF1.99 MB
|
Application Note
|
||
PDF480 KB
|
Application Note
|
||
PDF235 KB
|
Application Note
|
||
PDF495 KB
|
Application Note
|
||
PDF442 KB
|
Application Note
|
||
PDF160 KB
|
Application Note
|
||
PDF565 KB
|
Application Note
|
||
PDF2.40 MB
|
Overview
|
||
PDF1.83 MB
|
Overview
|
||
PDF122 KB
|
Schematic
|
||
PDF1.35 MB
|
White Paper
|
Design & Development
Software & Tools
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| 85 | Tray | -40 to 105°C | 56 | VFQFPN | Get Samples, | |
| 85 | Reel | -40 to 105°C | 56 | VFQFPN | ||
| 100 | Tray | -40 to 105°C | 56 | VFQFPN | Get Samples, | |
| 100 | Reel | -40 to 105°C | 56 | VFQFPN |
