Low Power Bluetooth® Pmod™ Board (Renesas Quick-Connect IoT)
Jump to Page Section:
Overview
Description

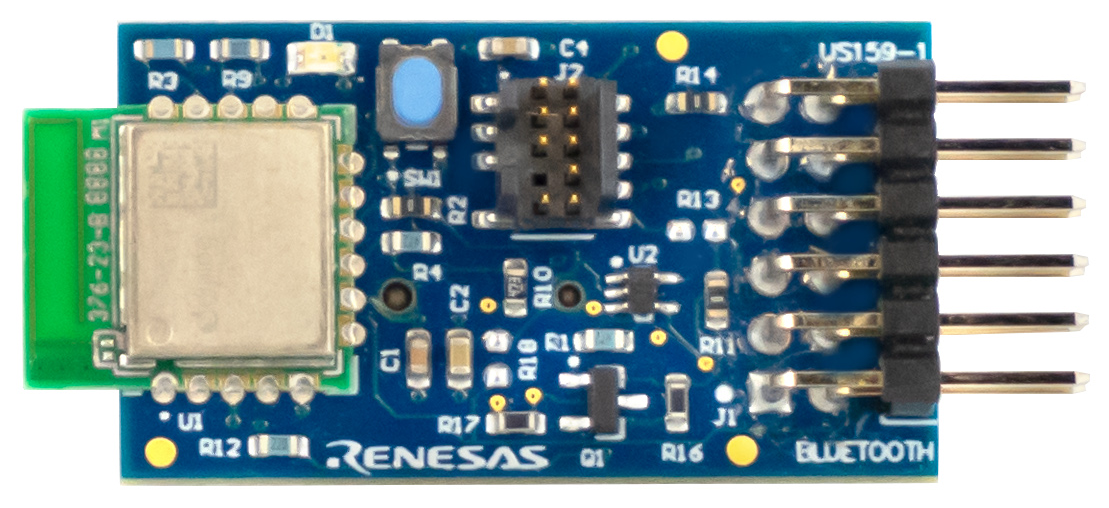

The US159-DA14531EVZ Low Power Bluetooth Pmod™ module enables the user to add low power Bluetooth capability to any evaluation kit or microcontroller board equipped with a Pmod expansion capability. The board provides a standard Pmod™ Type 3A (Expanded UART) connection for the on-board Bluetooth 5.1 module.
The US159-DA14531EVZ features a Type 3A Pmod™ connector and incorporates the DA14531 SmartBond TINY™ Module, based on the world’s smallest and lowest power Bluetooth 5.1 System-on-Chip. Thanks to the standard connector and software support, the US159-DA14531EVZ is ideal for Renesas’ Quick-Connect IoT to rapidly create an IoT system.
Features
- DA14531 SmartBond TINY™ Module
- Cortex M0+ @ 16 MHz
- Memory: 4kB RAM, 32kB OTP & 1Mb Flash
- Bluetooth 5.1 core qualified
- Integrated chip antenna
- Worldwide certification
- IoTMark™-BLE score of 18300
- 3.3V supply voltage
- +2.2dBm maximum output power
- -93dBm sensitivity
- Rx current 2mA @ 3.3V
- Tx current 4mA @ 3.3V @ 0dBm
- Standardized Type 3A Pmod™ connector supports Expanded UART interface
- Optional battery operation with on-board CR1220 coin cell
- Momentary pushbutton switch (SW1) to aid in user software debug
- LED (D1) to aid in user software debug
- 10-pin 1.27mm pitch Arm Cortex-Debug connector (J2) for software development and debug support
Documentation
| Document title | Document type Type | Date Date | |
|---|---|---|---|
| PDF 1.83 MB | Manual - Development Tools | ||
| PDF 1.92 MB | Datasheet | ||
| Manual - Software | |||
| PDF 854 KB | Quick Start Guide | ||
4 items
|
|||
