Overview

Description

The ZSSC4132 Evaluation Kit provides the hardware needed for configuration, calibration and evaluation of the ZSSC4132 Sensor Signal Conditioner (SSC) IC. The user's PC can communicate with the ZSSC4132 IC socketed on the ZSSC4132 evaluation board via the SSC communication board through a USB connection. The evaluation kit software is available on-line for free download. The evaluation board can connect to the user's sensor or to the SSC sensor replacement board (SRB). The SRB provides a replacement for an actual sensor and can be used for the first step of calibration or a dry-run calibration. The kit also includes a ZSSC4132 sample board and five VFQFPN samples.

Features

  • ZSSC4132 evaluation board
  • SSC communication board

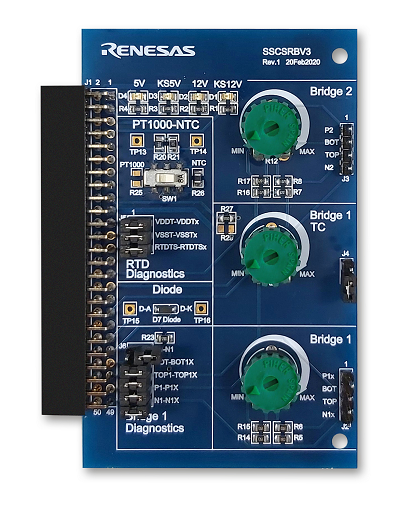

  • SSC sensor replacement board
  • ZSSC4132 sample board
  • Five ZSSC4132 VFQFPN samples
  • Tweezers
  • USB cable
  • Renesas EVK disclaimer

Documentation

Title Type Date
PDF3.71 MB
Manual - Hardware

Design & Development

Software & Tools

Software Downloads

Title Type Date
ZIP3.97 MB
Software & Tools - Evaluation Software

Support

Videos & Training

IDT Sensor Signal Conditioner (SSC) Evaluation Kit Overview

A brief introduction and overview of IDT's sensor signal conditioner evaluation kits. Evaluation kits generally consist of three parts: a communication interface board,  a device board, and a sensor simulator board - all connected together. A sophisticated software GUI accompanies the kit, enabling an engineer to learn how to use the part rapidly, do quick prototyping, and practice calibrations.

Presented by David Grice, applications engineer at IDT. For more information about IDT's sensor signal conditioner products, visit https://www.idt.com/ssc
