15W Wireless Charging Solution with Bi-Directional Data Communication
Jump to Page Section:
Back to top
Overview
Description

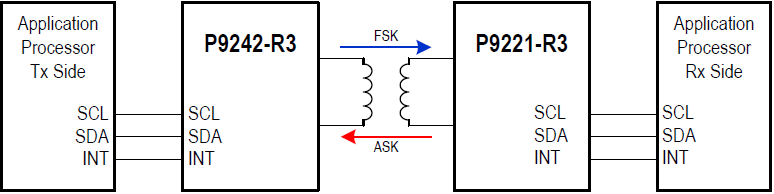

The WP15WBD-RK evaluation kit demonstrates 15W wireless power transfer and bi-directional data communication between a transmitter (Tx) board with the P9242-R3 wireless power transmitter IC and a receiver (Rx) board with the P9221-R3 wireless power receiver IC. The bi-directional data communication channel enables users to authenticate a wirelessly charged receiver device with a specific charging transmitter base or to transfer system data without any additional hardware.

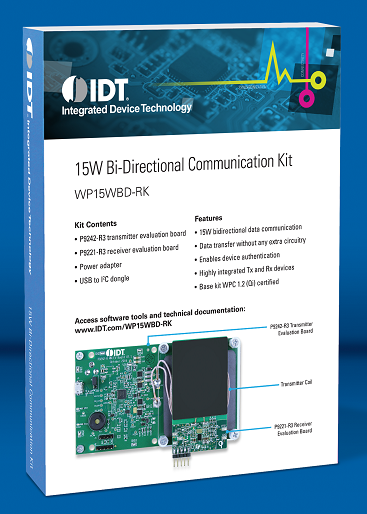

This evaluation kit adds bi-directional communication to Renesas’s standard, WPC 1.2-compliant, 15W transmitter P9242-R and receiver P9221-R evaluation kits without compromising any existing features. Its main contents are the transmitter P9242-R3-EVK Evaluation Board and the receiver P9221-R3-EVK Evaluation Board.
Features
- Supports bi-directional data communication
- Enables device authentication and system data transfer
- Up to 15W of power transfer
- 87% end-to-end efficiency
- Flexibility to program key parameters
- Intuitive Renesas I²C Lite GUI
- Base kit is WPC-1.2-complaint
Design & Development
Product Options
Processing table
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
Wurth 15W Bi-Directional Communication Kit
This short video reviews the Wurth 15W bi-directional wireless power communication kit and how to power it up and use the GUI to evaluate the bi-directional data communication feature, presented by Gopi Akkinepally, product marketing manager for Renesas Wireless Power products.
