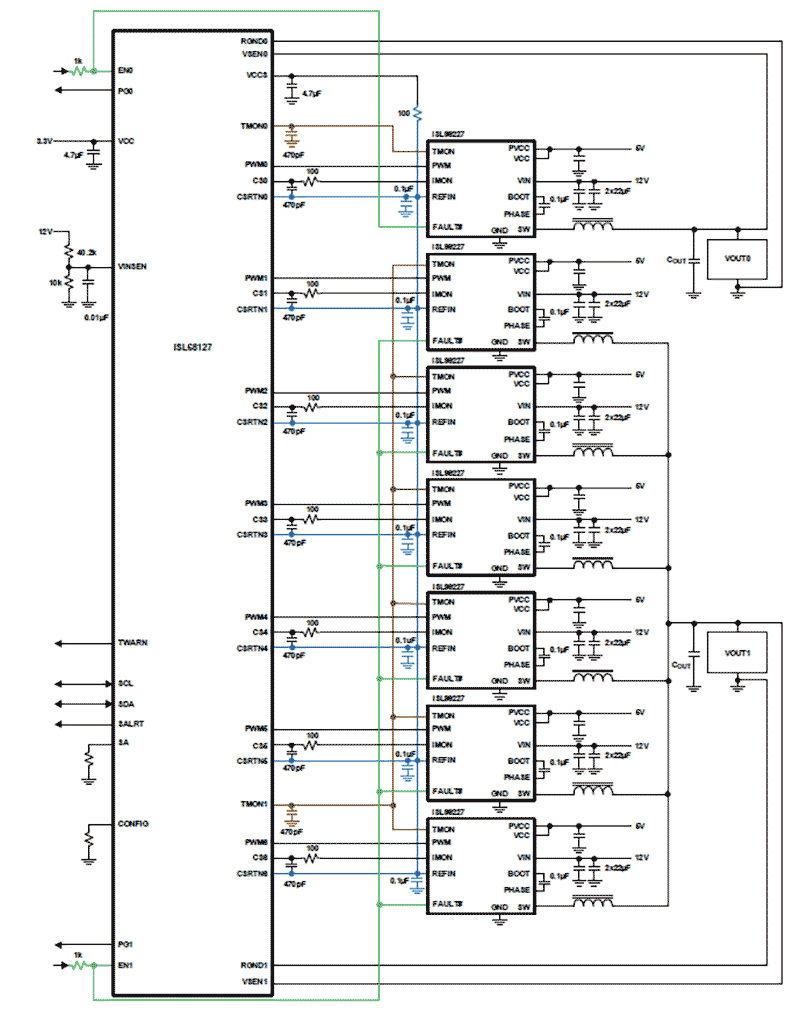

The ISL68127 is a digital dual output, flexible multiphase (X+Y ≤ 7) PWM controller supporting the latest PMBus V1. 3 specifications. The ISL68127can be configured to support any desired phase assignments up to a maximum of seven phases across the two outputs (X+Y). For example, 6+1, 5+2, 4+2, 3+3, 3+2, or even a single output operation as a 7+0 configuration are supported. The ISL68127 uses the Renesas proprietary linear synthetic digital current modulation scheme to achieve the industry's best combination of transient response and ease of tuning while addressing the challenges of modern multiphase designs. You can configure the device and monitor telemetry using the intuitive Renesas PowerNavigator GUI. The ISL68127 device supports on-chip nonvolatile memory to store various configuration settings that are user-selectable through pin-strap, giving system designers increased power density to configure and deploy multiple configurations. The automatic phase add/drop feature allows maximum efficiency across all load ranges. Thresholds for automatic phase add/drop are user-programmable using PowerNavigator. The ISL68127 supports a comprehensive fault management system to enable the design of highly reliable systems. From a multitiered overcurrent protection scheme to the configurable power-good and output overvoltage/undervoltage fault thresholds and temperature monitoring, almost any need is accommodated. With minimal external components, easy configuration, robust fault management, and highly accurate regulation capability, implementing a high-performance, multiphase regulator has never been easier.


  • Zero latency synthetic current control for excellent HF current balance
  • Dual edge modulation for fastest transient response
  • Auto phase add/drop for excellent load vs efficiency profile
  • PMBus V1.3 support - Telemetry: VIN, VOUT, IOUT, power IN/OUT, temperature, and various fault status registers; Up to 1MHz bus interface
  • Flexible phase configuration: 7+0, 6+1, 5+2, and 4+3 phase operation; Operation using fewer than seven phases between two outputs is also supported
  • Diode braking for overshoot reduction
  • Differential remote voltage sensing supports ±0.5% closed loop system accuracy over load, line, and temperature
  • Highly accurate current sensing for excellent load line regulation and accurate OCP
  • Comprehensive fault management enables high reliability systems
  • Intuitive configuration using PowerNavigator; NVM to store up to eight configurations
  • Pb-free (RoHS compliant)


Title language Type Format File Size Date
star ISL68127 Datasheet Datasheet PDF 1.79 MB
Production Configuration Utility User Guide Guide PDF 714 KB
ISLUSBEVAL1Z User's Manual Rev.1.00 Manual - Development Tools PDF 257 KB
PowerNavigator User Guide for Digital Multiphase Manual - Development Tools PDF 5.52 MB
PMBus Interface Install Guide - Win7 x86 and x64 Manual - Hardware PDF 693 KB
AN1681: Grounding Techniques Application Note PDF 509 KB
AN1684: Nonideality of Ground Application Note PDF 397 KB
Five Easy Steps to Create a Multi-Load Power Solution White Paper PDF 846 KB
IoT-Cloud-Systeme mit Strom versorgen White Paper PDF 298 KB
Powering IoT Infrastructure Systems with Digital Multiphase White Paper PDF 705 KB
PCN21048 - Alternate assembly facility of the listed Renesas QFN / TQFN packaged products Product Change Notice PDF 166 KB
PCN17030 - Datasheet specification change for Listed Intersil ISL68127* and ISL68137* Products Product Change Notice PDF 490 KB


Title language Type Format File Size Date
PMBus Conversion Software Tool Library ZIP 54.93 MB
ZLHLD Software v2.9 Library ZIP 119.19 MB
CompZL Software v1.5.1 Library ZIP 59.25 MB
PowerPilot Software GUI Library ZIP 435 KB
USB Drivers for the ZLUSBEVAL1Z (Windows 7) Library ZIP 1.75 MB
USB Drivers for the ZLUSBEVAL1Z (Windows XP/Vista) Library ZIP 166 KB
Production Configuration Utility v5.4.139 Software & Tools - Other ZIP 120.25 MB
PowerNavigator™ Software v5.4.139 Software & Tools - Software ZIP 96.49 MB

select_allSoftware & Tool Pages

Title Type Description Company
PowerNavigator Software Software Package Renesas' PowerNavigator™ software allows simple configuration and monitoring of multiple Digital-DC devices using a PC with a USB interface. Renesas
