Overview

This evaluation board kit is ideal for evaluating RZ/G2L. The RZ/G2L Evaluation Board Kit consists of a module board (SOM) and a carrier board. The carrier board can be commonly used with RZ/G2LC, RZ/G2UL, and RZ/V2L modules (SOM) prepared according to the SMARC v2.1 standard. This allows you to experience seamless and flexible evaluation between these devices.

RZ/G2L Evaluation Board Kit

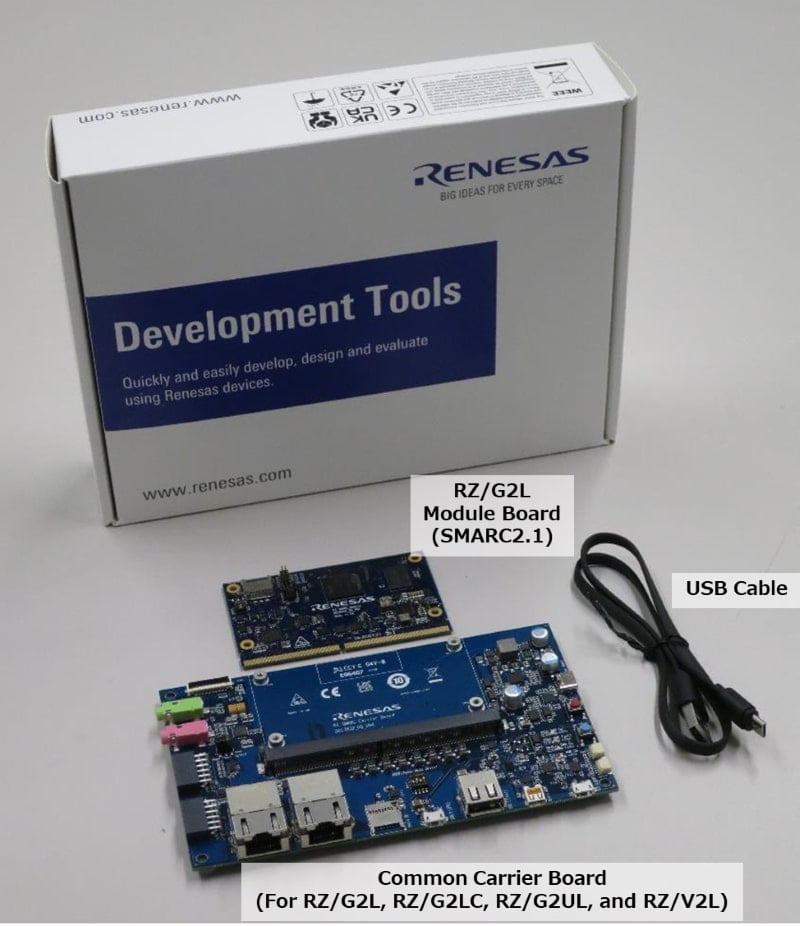

RZ/G2L Evaluation Board Kit Contents
RZ/G2L Evaluation Board Kit
RZ/G2L Evaluation Board Kit Contents
  • Device: RZ/G2L
    • Cortex-A55 Dual, Cortex-M33
    • BGA551pin, 15mmSq body, 0.5mm pitch
  • Module Board Function
    • DDR4 SDRAM: 2GB × 1pc
    • QSPI flash memory: 512Mb × 1pc
    • eMMC memory: 64GB × 1pc
    • The microSD card slot is implemented and used as an eSD for boot.
    • 5-output clock oscillator “5P35023” implemented
    • PMIC power supply “RAA215300” implemented
  • Carrier Board Function
    • The FFC/FPC connector is mounted as standard for connection to high-speed serial interface for camera module.
    • The Micro-HDMI connector via DSI/HDMI conversion module is mounted as standard for connection to high-speed serial interface for digital video module.
    • The Micro-AB receptacle (ch0: USB2.0 OTG) and A receptacle (ch1: USB2.0 Host) are respectively mounted as standard for connection to USB interface.
    • The RJ45 connector is mounted as standard for software development and evaluation using Ethernet.
    • The audio codec is mounted as standard for advance development of audio system. The audio jack is implemented for connection to audio interface.
    • The Micro-AB receptacles are implemented for connection to asynchronous serial port interface.
    • The microSD card slot and two sockets for PMOD are implemented as an interface for peripheral functions.
    • For power supply, a mounted USB Type-C receptacle supports the USB PD standard.
[RZ/G, RZ/V MPU] Micron NOR. DDR4 and eMMC
Title Category Buy/Sample
5P35023VersaClock® 3S Programmable Clock Generator
5P35023 Datasheet
 Programmable Clocks, PCI Express® Clocks, VersaClock® Programmable Clocks, Clocks - General Purpose, Timing Solutions for NXP (Freescale) Processors, Automotive Timing Buy/Quote
RAA215300High Performance 9-Channel PMIC Supporting DDR Memory, with Built-In Charger and RTC
RAA215300 Short-Form Datasheet
 SSD/SoC Power Management ICs (PMIC) and PMUs Buy/Quote
RZ/G2LGeneral-purpose Microprocessors with Dual-core Arm® Cortex®-A55 (1.2 GHz) CPUs and Single-core Arm® Cortex®-M33 (200 MHz) CPU, with 3D Graphics and Video CODEC Engine RZ 32 & 64-bit MPUs, MCU Selection Table Buy/Quote

Documentation

Title Type Date
RZ/G2L, RZ/V2L SMARC Module Board User's Manual: Hardware
PDF2.65 MB
Manual - Development Tools
ZMOD4xxx Sample application
PDF4.72 MB日本語
Related Files:
Application Note
RZ SMARC Series Carrier Board User's Manual: Hardware
ZIP3.70 MB
Manual - Development Tools

Design & Development

Software Downloads

Title Type Date
RZ SMARC Series Carrier Board Design Data V4.01
ZIP21.68 MB
PCB Design Files
RZ/G2L SMARC Module Board Design Data V2.01
ZIP5.72 MB
PCB Design Files

Sample Code

Title Type Date
Shopping Basket Demo Sample
Sample Code
ZMOD4xxx Sample application
[Software=FSP|v4.0.0;RX Driver Package|v1.35],[Toolchains=GNU ARM Embedded|v10.3.1.20210824;CC-RX|v3.02.00;GNURX|8.3.0.202004;CC-RL|v1.10.00;GNURL|4.9.2.202103;]
ZIP211.70 MB
Related Files:
Application: IoT Applications
Compiler: CC-RX, CC-RL, ICCRX, ICCRL78, GNURL78, GNURX, ICCARM, GNU ARM Embedded
Function: Communication Interface, Application Example
IDE: e2 studio, IAR EWRX, IAR EWRL78, IAR EWARM
Sample Code

Boards & Kits

RZ/G2LC Evaluation Board Kit

RZ/G2LC-Evaluation-Board-Kit

Evaluation
Order Now

RZ/G2LC Evaluation Board Kit

This evaluation board kit is ideal for evaluating RZ/G2LC. The RZ/G2LC Evaluation Board Kit consists of a module board (SOM) and a carrier board. The carrier board can...

Featured Documents:
RZ/G2LC SMARC Module Board User's Manual: Hardware

Product Options

    Processing table
    Part Number
    Description
    Security
    Buy / Sample
    RTK9744L23S01000BE
    play_circleActive
    memory
    		 Renesas Evaluation Board Kit for RZ/G2L (Non-Secure Type; Device: R9A07G044L23GBG) None
    RTK9744L27S01000BE
    play_circleActive
    memory
    		 Renesas Evaluation Board Kit for RZ/G2L (Secure Type; Device: R9A07G044L27GBG) Supported
