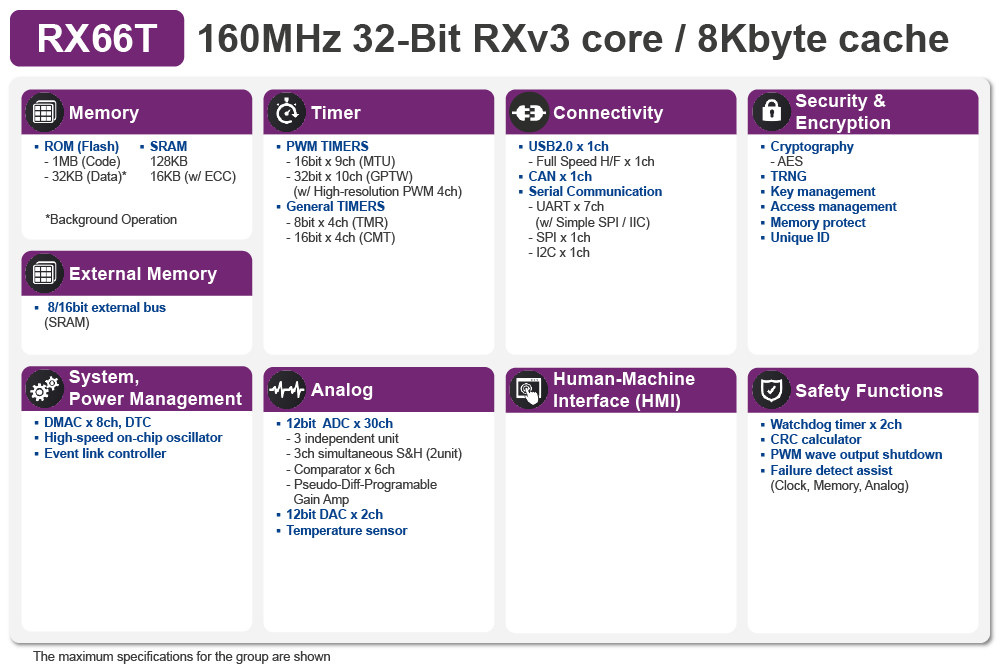

Overview

The RX66T group of microcontrollers is designed for motor control applications. The max. 160MHz RXv3 CPU core enables up to four inverters to be controlled simultaneously, with advanced security and safety functions for inverter control applications.

Pin-Memory Diagram of RX66T stanndard products

Pin-Memory Diagram of RX66T High-temperature products

RXv3 Core 160MHz operation (5.8 CoreMark/MHz), single-precision FPU
2.7V to 5.5V operation
Operating temperature -40 °C to 105 °C
Program Flash up to 1MB, SRAM up to 128KB
Enhanced Analog
- 12-bit A/D converter x 3 units, 12-bit D/A converter x 2 channels
- 6-channel comparators
- 6-channel pseudo-differential PGA
160MHz PWM
- 4 channels for 3-phase complementary switching, 2 channels for 5-phase complementary switching, 10 channels for single-phase complementary switching
- 4-channel high-resolution PWM enables a minimum 195ps timing adjustment
Trusted Secure IP Lite (AES/TRNG)

	Functional Safety Network with Safety Drive System
	Slave Actuator for Automatic Home or Building HVAC System
	AC Drives/GP Inverters Solution
	Three-Phase Induction Motor Solution
	3KW Off-Board Electric Vehicle (EV) Charger
	Industrial Automation Solution with Industrial Ethernet Module
	CT Green Tech 3kW Power Stage
	Digital control solution for 3-level inverters
	Three-Level (T-TYPE) DC AC Inverter
	Whole Speed Range Sensorless Motor Solution
	Digital Power Conversion with Totem Pole Interleaved PFC
	Solar Panel Tracker and Cleaning System

Applications

Industrial
Office automation
Home appliances
