Non-Volatile 32Mb MRAM, Parallel Interface, 35ns and 45ns
Jump to Page Section:
Overview
Description
The M3032316 is a high performance parallel interface non-volatile MRAM with 32Mbit density. It features SRAM compatible read and write access times of 35ns or 45ns. It operates from -40° to +85° (industrial version) and -40°C to +105°C (industrial plus version). The device is offered in 48-ball FBGA package.
Features
- Utilizing advanced pMTJ STT-MRAM technology
- Parallel Asynchronous x16
- 32Mb density
- Low active write and read current
- Operating temperature: Industrial -40°C to +85°C, Industrial Plus -40°C to +105°C
- Operating voltage: 2.70 V to 3.60V

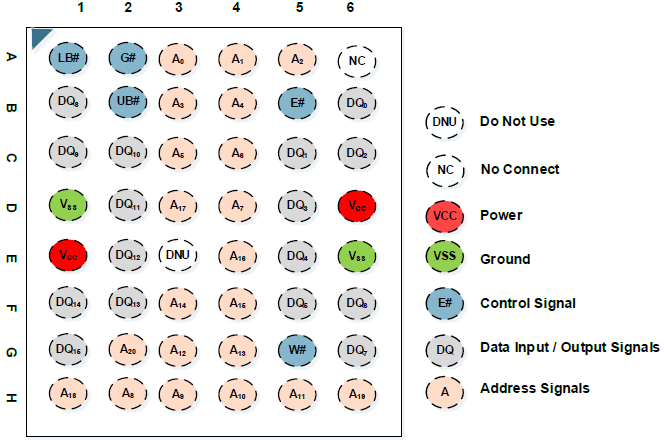

- Package: 48-pin FBGA
Documentation
| Document title | Document type Type | Date Date | |
|---|---|---|---|
| PDF 581 KB | Datasheet | ||
| PDF 98 KB | Application Note | ||
| PDF 1.26 MB | Overview | ||
3 items
|
|||
Design & Development
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Pkg. Type |
Lead Count (#) |
Description |
Temp. Range |
Carrier Type |
Buy / Sample |
|
|---|---|---|---|---|---|---|
| Part Number | ||||||
| CABGA | 48 | 32Mb Parallel Asynchronous x16, 35ns | -40 to 85°C | Tray | Get Samples, | |
| CABGA | 48 | 32Mb Parallel Asynchronous x16, 35ns | -40 to 85°C | Reel | ||
| CABGA | 48 | 32Mb Parallel Asynchronous x16, 45ns | -40 to 85°C | Tray | Get Samples, | |
| CABGA | 48 | 32Mb Parallel Asynchronous x16, 45ns | -40 to 85°C | Reel | ||
| CABGA | 48 | 32Mb Parallel Asynchronous x16, 35ns | -40 to 105°C | Tray | Get Samples, | |
| CABGA | 48 | 32Mb Parallel Asynchronous x16, 35ns | -40 to 105°C | Reel | ||
| CABGA | 48 | 32Mb Parallel Asynchronous x16, 45ns | -40 to 105°C | Tray | ||
| CABGA | 48 | 32Mb Parallel Asynchronous x16, 45ns | -40 to 105°C | Reel |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
High Performance Serial and Parallel MRAM Memory Family
Renesas’ high performance serial and parallel MRAM memory family provides the largest range of SPI and parallel interface non-volatile memory sizes, with fast read and write speeds. The MRAM family is ideal for applications ranging from factory automation equipment requiring fast back-up data retrieval to medical data units with long-term data storage requirements.
