The 5L1503 is a series of small form factor programmable clock generators intended for low-power, consumer, battery powered applications, wearable and smart devices.

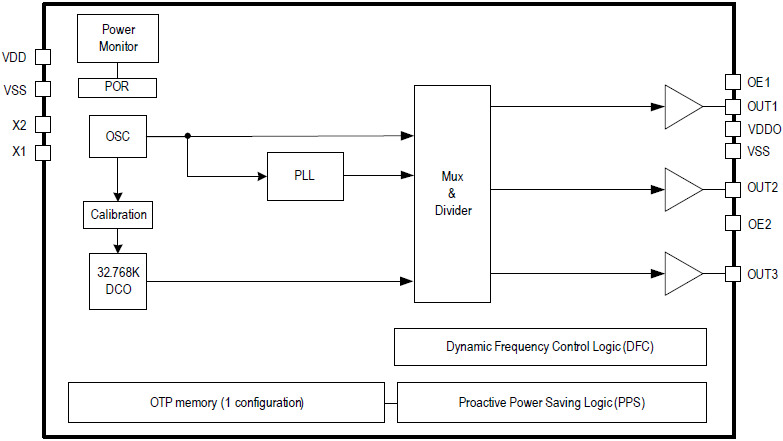

The device is a 1 PLL + DCO architecture design with an external fundamental crystal or clock input. The device allows up to 3 unique frequency outputs. The 5L1503 has built-in unique features such as Proactive Power Saving (PPS) and an extreme low power DCO to support system date/time keeping clock at 32.768kHz. Dynamic Frequency Control (DFC) supports dynamically changing between four different PLL frequencies via external requests with controlled frequency changes, reducing frequency overshoot and undershoot (ORT). The 5L1503S device can also support a spread clock output for EMI reduction.
An internal OTP memory allows the user to store up to four independent configurations that can be loaded on power-up without programming. The 5L1503 supports three LVCMOS type outputs with VDDO1.8V, as well as various amplitude clocks. A low-power 32.768kHz clock is supported with only less than 1μA current consumption for system RTC reference clock needs.
|Document title||Document type
|PDF 493 KB||Datasheet|
|PDF 348 KB||Application Note|
|PDF 358 KB||Application Note|
|PDF 307 KB||Application Note|
|PDF 146 KB||Application Note|
|PDF 495 KB||Application Note|
|PDF 565 KB||Application Note|
|PDF 438 KB||Application Note|
|PDF 220 KB||Guide|
|PDF 1023 KB||Overview|
|PDF 1.83 MB||Overview|
|PDF 58 KB||Schematic|
|Software title||Software type Type||Date Date|
|ZIP 18.02 MB||Software & Tools - Other|
|ZIP 8.19 MB||Software & Tools - Other|
The MicroClock 5L1503 / 5L1503L / 5L1503S Development Kit include a USB interface connecting board, 5L1503 / 5L1503L / 5L1503S evaluation board, tiny evaluation board...
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Brief overview of the MicroClock™ family of tiny, flexible clock generators designed for wearable, hearable and IoT applications.
