RL78/F1x 16bit microcontrollers are AEC-Q100 automotive qualified and providing super low power consumption. Its large product portfolio, scalable from 8 to 512KB flash / 0.5 to 32KB RAM, and from 20 to 144pins (QFN, LQFP, SSOP packages) enables optimal application demand coverages. Further key features are high temperature support up to 150°C ambient (optionally for RL78/F13 & F14), BLDC / FOC motor control, CAN, LIN, UART, CSI, I2C interfaces and hard- & software compatibility across family, as well as an extensive eco-system.

Additionally, RL78/D1A microcontrollers are equipped with up to four stepper motor drivers and an LCD controller that supports up to 216 segments.

Those innovative MCUs are ideal to realize all kinds of highly reliable automotive actuators & sensors, as well as low-end ECUs in body and instrument cluster areas.

Featured RL78 MCUs

These featured products are part of the Renesas Easy-to-Start MCU design, tool and documentation portal.

Design Support Page Product Series Description User's Manual
RL78/F13 RL78/F13 32MHz, up to 128KB ROM, 8KB RAM, LIN, CAN, lowest power consumption, Ta=150°C pdf_icon_for_table.png
RL78/F14 RL78/F14 32MHz, up to 256KB ROM, 20KB RAM, LIN, CAN, lowest power consumption, Ta=150°C pdf_icon_for_table.png
RL78/F15 RL78/F15 32MHz, up to 512KB ROM, 32KB RAM, LIN, CAN, lowest power consumption pdf_icon_for_table.png

Automotive Products

Product Selection Table

    Processing table
    Part Number
    Bit Size
    CPU
    Program Memory (KB)
    Data Flash (KB)
    RAM (KB)
    Lead Count (#)
    Supply Voltage (V)
    Operating Freq (Max) (MHz)
    RTC
    LVD
    DMA
    I/O Ports
    Timer
    ADC
    DAC
    CAN (ch)
    Ethernet
    USB
    PLP
    Pkg. Type
    Temp. Range
    RL78/D1A
    Microcontrollers for Automotive Low-end Instrument Clusters    		 16 RL78 24, 32, 48, 64, 96, 128, 256, 384, 512 8 24, 20, 16, 2, 3, 4, 6, 8 48, 64, 80, 100, 128 2.7 - 5.5 24, 32 Yes Yes Yes 38, 54, 68, 84, 112 16-bit x 24-ch 10-bit x 5-ch, 10-bit x 8-ch, 10-bit x 9-ch, 10-bit x 11-ch 1, 2 No N/A LQFP -40 to 85°C, -40 to 105°C
    RL78/F12
    Microcontrollers with Low Consumption Current for Automotive Applications    		 16 RL78 8, 16, 24, 32, 48, 64 4 1, 0.5, 1.5, 2, 3, 4 20, 30, 32, 48, 64 2.7 - 5.5, 1.8 - 5.5 32 No, Yes Yes Yes 16, 26, 28, 44, 58 16-bit x 8-ch 10-bit x 4-ch, 10-bit x 8-ch, 10-bit x 10-ch, 10-bit x 12-ch No N/A HWQFN, LQFP, LSSOP -40 to 85°C, -40 to 125°C
    RL78/F13
    Microcontrollers with Low Consumption Current for Automotive Applications    		 16 RL78 16, 32, 48, 64, 96, 128 4 1, 2, 3, 4, 6, 8 20, 30, 32, 48, 64, 80 2.7 - 5.5 24, 32 Yes Yes Yes 13, 23, 25, 38, 52, 68 16-bit x 11-ch, 16-bit x 15-ch
    10-bit x 4-ch, 10-bit x 8-ch, 10-bit x 10-ch, 10-bit x 12-ch and more...
    		 1 No N/A HVQFN, LFQFP, LQFP, LSSOP -40 to 105°C, -40 to 125°C, -40 to 150°C
    RL78/F14
    Microcontrollers with Low Consumption Current for Automotive Applications    		 16 RL78 48, 64, 96, 128, 192, 256 4, 8 4, 8, 10, 16, 6, 20 30, 32, 48, 64, 80, 100 2.7 - 5.5 24, 32 Yes Yes Yes 23, 25, 38, 52, 68, 86 16-bit x 15-ch, 16-bit x 19-ch
    10-bit x 10-ch, 10-bit x 12-ch, 10-bit x 15-ch, 10-bit x 18-ch and more...
    		 8-bit x 1-ch 1 No N/A HVQFN, LQFP, LSSOP -40 to 105°C, -40 to 125°C, -40 to 150°C
    RL78/F15
    Microcontrollers with Enhanced CAN / LIN / IEBus and Memory Lineup for Automotive Applications    		 16 RL78 128, 192, 256, 384, 512 16, 8 26, 32, 16, 20, 10 48, 64, 80, 100, 144 2.7 - 5.5 24, 32 Yes Yes Yes 38, 52, 68, 86, 130 16-bit x 19-ch, 16-bit x 27-ch 10-bit x 18-ch, 10-bit x 20-ch, 10-bit x 25-ch, 10-bit x 31-ch 8-bit x 1-ch 2 No N/A HVQFN, LQFP -40 to 105°C, -40 to 125°C
    RL78/F23
    Next Gen. Actuator and Sensor Microcontroller    		 16 RL78 128 8 12 Yes Yes N/A

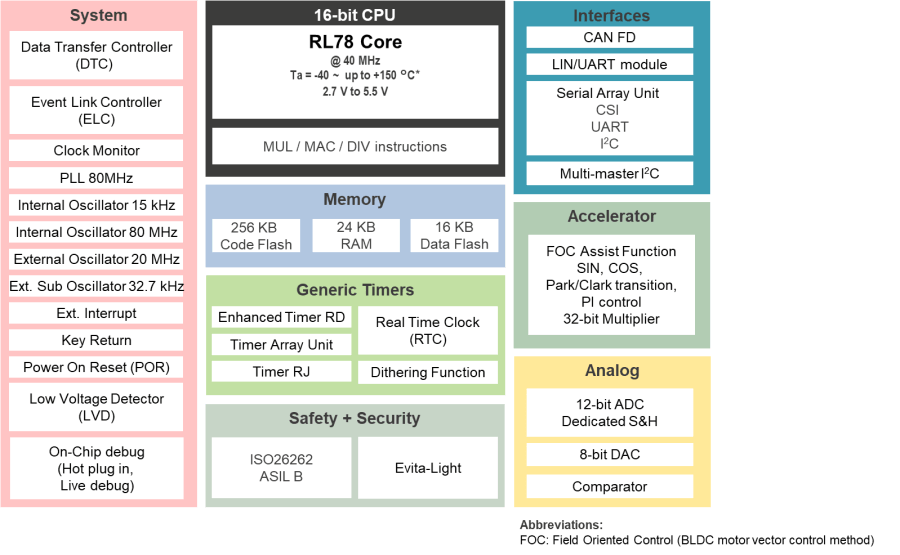

    RL78/F24
    Next Gen. Actuator and Sensor Microcontroller    		 16 RL78 256 16 24 32, 48, 64, 80, 100 2.7 - 5.5 40 Yes Yes Yes 25, 38, 52, 68, 86 16-bit x 19-ch
    12-bit x 10-ch, 12-bit x 19-ch, 12-bit x 24-ch, 12-bit x 25-ch and more...
    		 8-bit x 1-ch 1 No N/A -40 to 105°C, -40 to 125°C, -40 to 150°C
    Parametric Table tips

    Tips for Using This Parametric Table:

    • Hide Filters button in header: Collapse or expands filters
    • Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
    • Reset button in header: Reset all filters to the page default
    • Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
    • Export button in header: Export the filtered results of the table to an Excel document
    • Filter parts search bar in header: Type to filter table results by part number
    • Hide column button in column headers: Select to hide columns in table
    • AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
    • Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
    • Document icon next to product name in row: View the featured document for this product
    • Chip icon next to the right of the document icon in row: View the block diagram for this product
    • Cart icon to the right of the chip icon: Indicates that samples are available for this product
