Renesas' offers low, medium and high voltage analog switches, as well as USB 2.0 high and full-speed switches that provide excellent performance across a wide input voltage range. These devices can be used in a broad range of applications including audio and video switching, battery powered, handheld, and portable equipment, portable test and measurement, medical equipment, data acquisition, Hi-Rel systems, sample and hold circuits, communication systems, automatic test equipment, and USB switching.

Analog Products

Product Selection Table

    Processing table
    Part Number
    Switch or MUX
    Channels (#)
    Configuration
    TON (ns)
    TOFF (ns)
    Charge Injection (pC)
    Drain Capacitance
    Leakage (nA)
    RDS (ON) (Ohms)
    Source Cap (pf)
    Supply Voltage Vcc Range
    VCC (Single) (V)
    IS (mA)
    Type of Switch
    Qualification Level
    Lead Count (#)
    Pkg. Type
    Simulation Model Available

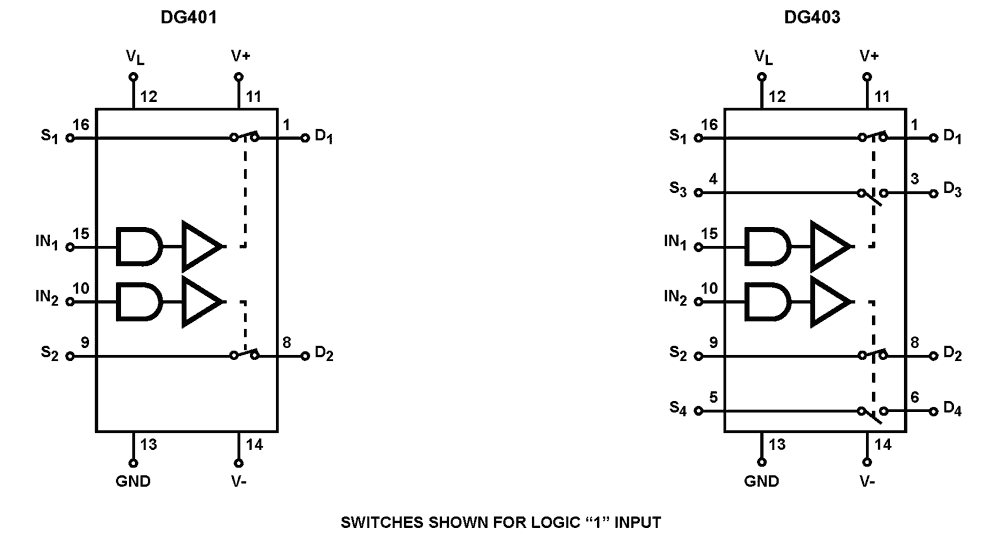

    DG403
    Monolithic CMOS Analog Switches    		 Switch 2 MIX 100 60 60 39 pF 0.04 20 12 5 to 34, ±5 to ±20 5 - 34 1E-05 DPST Standard 16 SOICN, TSSOP

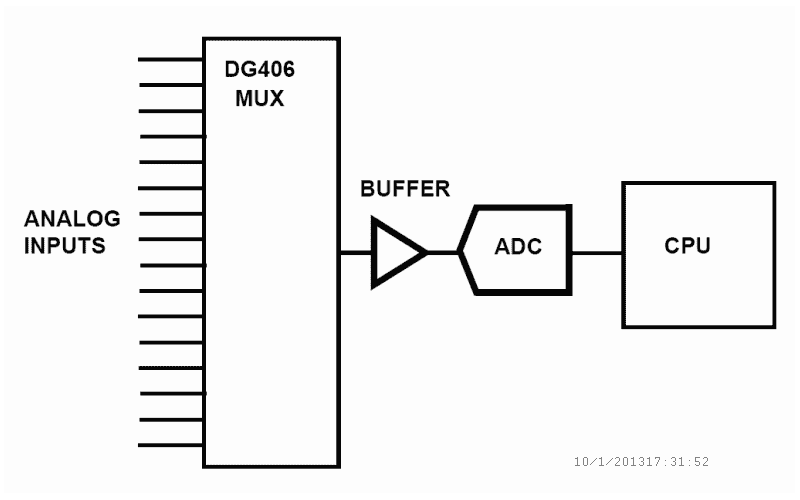

    DG406
    Single 16-Channel/Differential 8-Channel, CMOS Analog Multiplexers    		 MUX 16 1 x 16:1 150 70 40 180 pF 0.04 50 8 5 to 34, ±5 to ±20 5 - 34 0.08 Standard 28 SOICW
    DG407
    Single 16-Channel/Differential 8-Channel, CMOS Analog Multiplexers    		 MUX 16 2 x 8:1 150 70 40 90 pF 0.04 50 8 5 to 34, ±5 to ±20 5 - 34 0.08 Standard 28 SOICW
    DG408
    Single 8-Channel/Differential 4-Channel, CMOS Analog Multiplexers    		 MUX 8 1 x 8:1 115 105 20 37 pF 1 40 3 5 to 34, ±5 to ±20 5 - 34 0.2 Standard 16 CERDIP, PDIP, SOICN, TSSOP
    DG409
    Single 8-Channel/Differential 4-Channel, CMOS Analog Multiplexers    		 MUX 8 2 x 4:1 115 105 20 25 pF 1 40 3 5 to 34, ±5 to ±20 5 - 34 0.2 Standard 16 SOICN, TSSOP
    DG411
    Monolithic Quad SPST, CMOS Analog Switches    		 Switch 4 NC 110 100 5 35 pF 0.1 25 9 5 to 34, ±5 to ±20 5 - 34 1E-07 SPST Standard 16 PDIP, SOICN, TSSOP
    DG412
    Monolithic Quad SPST, CMOS Analog Switches    		 Switch 4 NO 110 100 5 35 pF 0.1 25 9 5 to 34, ±5 to ±20 5 - 34 1E-07 SPST Standard 16 PDIP, SOICN, TSSOP
    DG413
    Monolithic Quad SPST, CMOS Analog Switches    		 Switch 4 MIX 110 100 5 35 pF 0.1 25 9 5 to 34, ±5 to ±20 5 - 34 1E-07 SPST Standard 16 PDIP, SOICN, TSSOP
    DG441
    Monolithic, Quad SPST, CMOS Analog Switches    		 Switch 4 NC 150 90 1 16 pF 0.08 50 4 5 to 34, ±5 to ±20 5 - 34 0.015 SPST Standard 16 PDIP, SOICN, TSSOP
    DG442
    Monolithic, Quad SPST, CMOS Analog Switches    		 Switch 4 NO 150 110 1 16 pF 0.08 50 4 5 to 34, ±5 to ±20 5 - 34 0.015 SPST Standard 16 SOICN, TSSOP
    DG444
    Monolithic, Quad SPST, CMOS Analog Switches    		 Switch 4 NC 120 110 1 16 pF 0.08 50 4 5 to 34, ±5 to ±20 5 - 34 1E-06 SPST Standard 16 SOICN, TSSOP
    DG445
    Monolithic, Quad SPST, CMOS Analog Switches    		 Switch 4 NO 120 160 1 16 pF 0.08 50 4 5 to 34, ±5 to ±20 5 - 34 1E-06 SPST Standard 16 SOICN, TSSOP
    HI-201
    Dual/Quad SPST, CMOS Analog Switches    		 Switch 4 NC 185 220 10 11 pF 2 55 5.5 ±15 (Typ) 0 - 15 0.5 SPST Standard 16 CERDIP, PDIP, SOICN
    HI-201HS
    High Speed, Quad SPST, CMOS Analog Switch    		 Switch 4 NC 30 40 10 30 pF 0.3 30 10 ±15 (Typ) 0 - 15 4.5 SPST Standard 16 CERDIP, SOICW
    HI-303
    CMOS Analog Switches    		 Switch 4 MIX 210 160 30 35 pF 0.04 35 16 5 to 34, ±5 to ±20 5 - 34 0.09 SPDT Standard 14 CERDIP, SOICN
    HI-5042
    CMOS Analog Switches    		 Switch 2 MIX 370 280 50 22 pF 0.8 50 11 ±15 (Typ) 0 - 15 0.1 SPDT Standard 16 CERDIP
    HI-5043
    CMOS Analog Switches    		 Switch 2 MIX 370 280 50 22 pF 0.8 50 11 ±15 (Typ) 0 - 15 0.1 DPST Standard 16 CERDIP, SOICN
    HI-5051
    CMOS Analog Switches    		 Switch 2 MIX 370 280 50 22 pF 0.8 25 11 ±15 (Typ) 0 - 15 0.1 DPST Standard 16 CERDIP, SOICN
    HI-506
    Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers    		 MUX 16 1 x 16:1 250 250 15 52 pF 0.3 180 10 ±15 (Typ) 20 1.5 Standard 28 CERDIP, PLCC, SOICW
    HI-506A
    16-Channel, 8-Channel, Differential 8-Channel and Differential 4-Channel, CMOS Analog MUXs with Active Overvoltage Protection    		 MUX 16 1 x 16:1 300 300 4 52 pF 0.1 1200 10 ±15 (Typ) 0 - 15 0.5 QML Class Q (military) 28 CERDIP
    HI-508
    Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers    		 MUX 8 1 x 8:1 250 250 15 17 pF 0.3 180 10 ±15 (Typ) 20 1.5 QML Class Q (military) 20, 16 CERDIP, CLCC, SOICN
    HI-508A
    16-Channel, 8-Channel, Differential 8-Channel and Differential 4-Channel, CMOS Analog MUXs with Active Overvoltage Protection    		 MUX 8 1 x 8:1 300 300 4 25 pF 0.1 1200 10 ±15 (Typ) 0 - 15 0.5 QML Class Q (military) 16 CERDIP, PDIP
    HI-509
    Single 16 and 8/Differential 8-Channel and 4-Channel CMOS Analog Multiplexers    		 MUX 8 2 x 4:1 250 250 15 12 pF 0.3 180 10 ±15 (Typ) 20 1.5 Standard 16 CERDIP
    HI-509A
    16-Channel, 8-Channel, Differential 8-Channel and Differential 4-Channel, CMOS Analog MUXs with Active Overvoltage Protection    		 MUX 8 2 x 4:1 300 300 4 12 pF 0.1 1200 10 ±15 (Typ) 0 - 15 0.5 QML Class Q (military) 16 CERDIP, PDIP

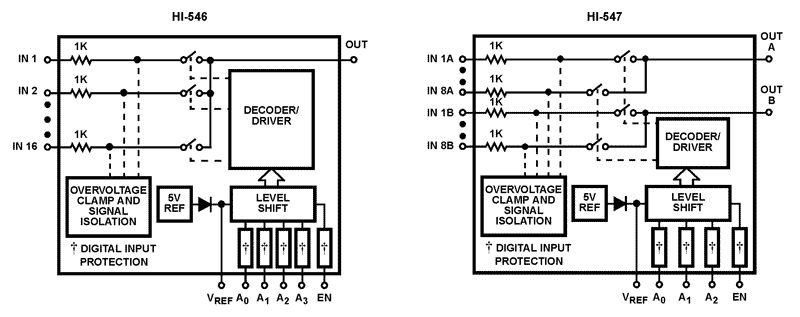

    HI-546
    Single 16 and 8, Differential 8-Channel and 4-Channel CMOS Analog MUXs with Active Overvoltage Protection    		 MUX 16 1 x 16:1 300 300 4 52 pF 0.1 1200 10 ±5 to ±18 0 - 18 0.5 QML Class Q (military) 28 CERDIP, PLCC, SOICW
    HI-547
    Single 16 and 8, Differential 8-Channel and 4-Channel CMOS Analog MUXs with Active Overvoltage Protection    		 MUX 16 2 x 8:1 300 300 4 30 pF 0.1 1200 10 ±5 to ±18 0 - 18 0.5 Standard 28 SOICW
    HI-548
    Single 16 and 8, Differential 8-Channel and 4-Channel CMOS Analog MUXs with Active Overvoltage Protection    		 MUX 8 1 x 8:1 300 300 4 25 pF 0.1 1200 10 ±5 to ±18 0 - 18 0.5 Standard 16 CERDIP, PDIP, SOICN
    HI-549
    Single 16 and 8, Differential 8-Channel and 4-Channel CMOS Analog MUXs with Active Overvoltage Protection    		 MUX 8 2 x 4:1 300 300 4 12 pF 0.1 1200 10 ±5 to ±18 0 - 18 0.5 QML Class Q (military) 16 CERDIP, SOICN
    ISL43111
    Low-Voltage, Single Supply, SPST, High Performance Analog Switches    		 Switch 1 NC 37 21 8 40 pF 0.01 7 15 2.4 to 12 2.4 - 12 0.001 SPST Standard 5 SOT23
    ISL43112
    Low-Voltage, Dual Supply, SPST, High Performance Analog Switches    		 Switch 1 NO 42 25 7 30 pF 0.01 15 13 ±1.5 to ±6 0 - 6 0.015 SPST Standard 5 SOT23
    ISL43113
    Low-Voltage, Dual Supply, SPST, High Performance Analog Switches    		 Switch 1 NC 42 25 7 30 pF 0.01 15 13 ±1.5 to ±6 0 - 6 0.015 SPST Standard 5 SOT23

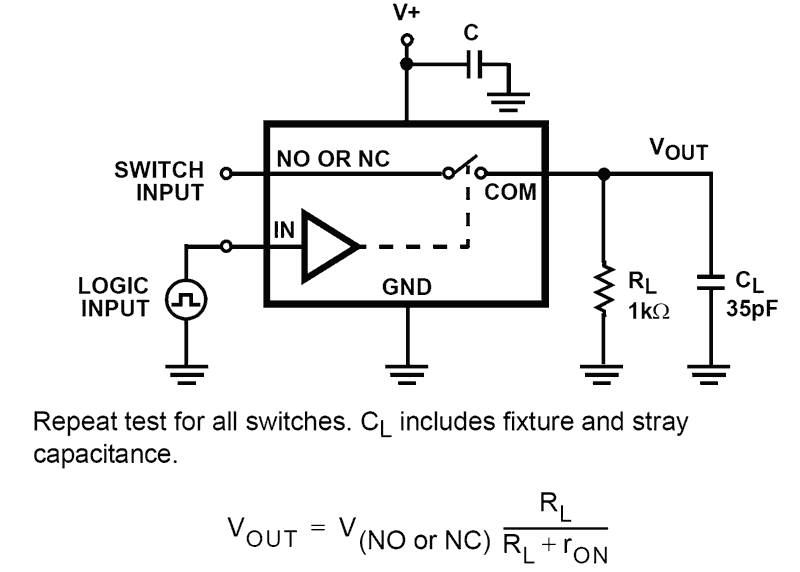

    ISL43120
    Low-Voltage, Single Supply, Dual SPST, SPDT Analog Switches    		 Switch 2 NO 25 17 5 21 pF 0.01 11 8 2.7 to 12 2.7 - 12 5E-05 SPST Standard 8 SOT23
    ISL43141
    Low-Voltage, Single and Dual Supply, High Performance, Quad SPST, Analog Switches    		 Switch 4 NO 40 15 1 14 pF 0.01 50 7 2 to 12, ±2 to ±6 2 - 12 5E-05 SPST Standard 16 SOICN, TSSOP

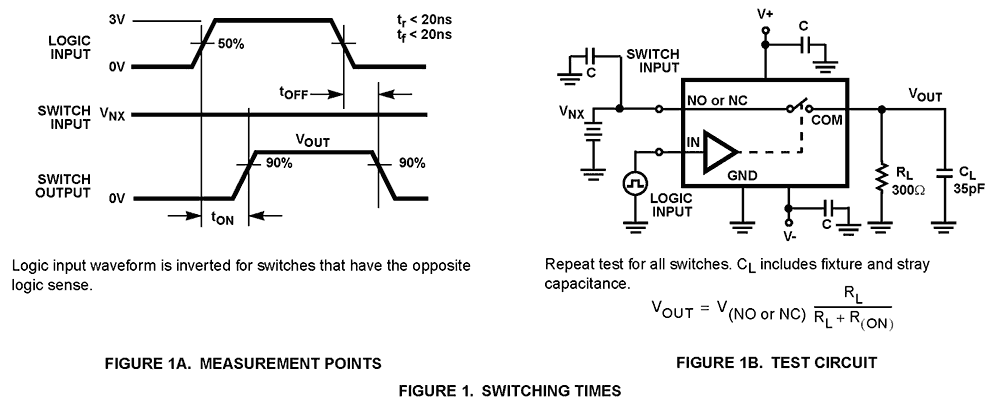

    ISL43144
    Low-Voltage, Single and Dual Supply, Quad SPST, High Performance Analog Switches    		 Switch 4 NO 52 40 5 34 pF 0.2 18 10 2 to 12, ±2 to ±6 2 - 12 1E-05 SPST Standard 16 TSSOP

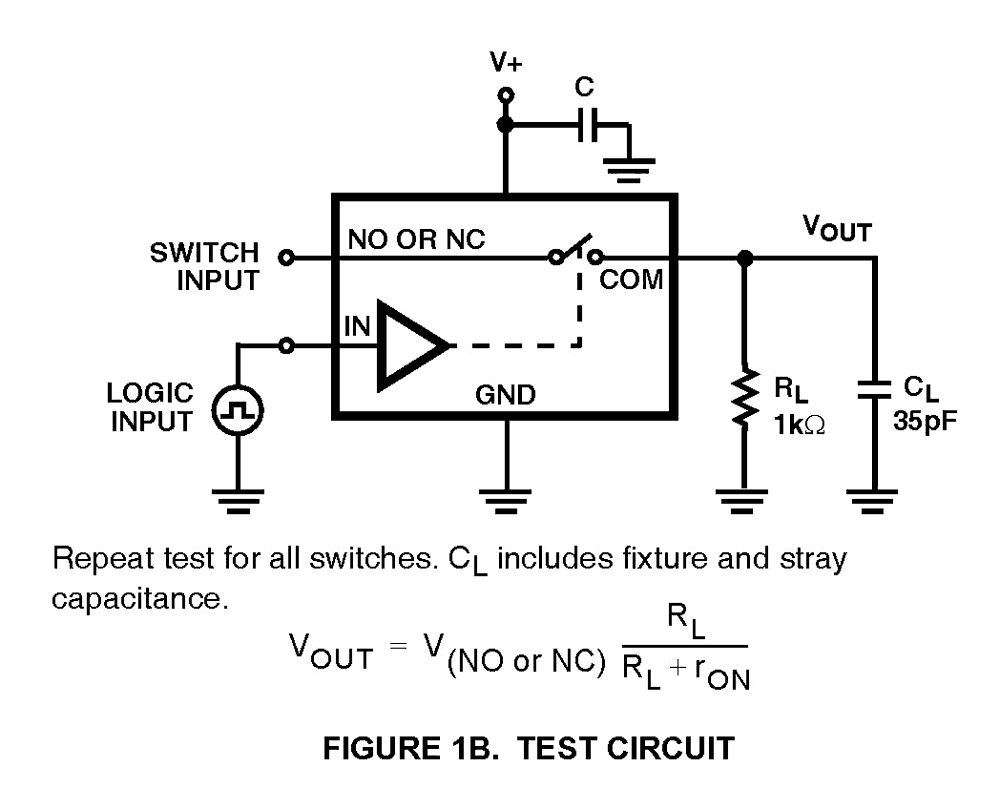

    ISL43210
    Low-Voltage, Single Supply, Single SPDT Analog Switch    		 Switch/MUX 2 1 x 2:1 28 20 5 28 pF 0.01 11 8 2.7 to 12 2.7 - 12 5E-05 SPDT Standard 6 SOT23
    ISL43210A
    Medium-Voltage, Single Supply, Single SPDT Analog Switch    		 Switch/MUX 2 1 x 2:1 25 17 5 28 pF 0.01 11 8 2.7 to 15 2.7 - 15 5E-05 SPDT Standard 6 SOT23

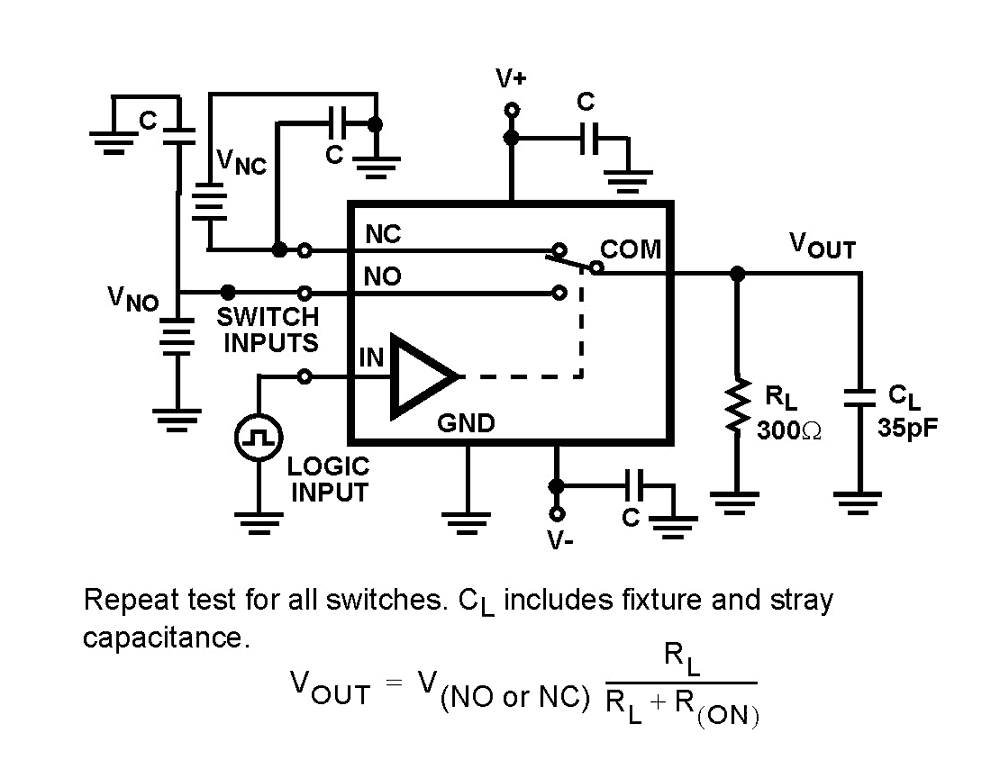

    ISL43240
    Low-Voltage, Single and Dual Supply, Quad SPDT, Analog Switches    		 Switch/MUX 8 4 x 2:1 52 40 5 30 pF 0.4 18 10 2 to 12, ±2 to ±6 2 - 12 1E-05 SPDT Standard 20 SSOP

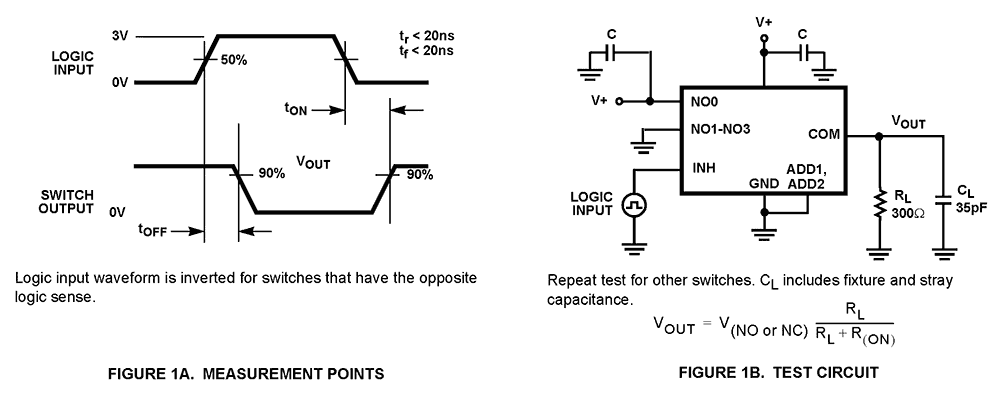

    ISL43640
    Low-Voltage, Single Supply, 4 to 1 Multiplexer, High Performance Analog Switch    		 Switch/MUX 4 Single 25 24 1.2 20 pF 1 45 4 2 to 12 2 - 12 1E-07 Standard 10 MSOP
    ISL43L110
    Ultra Low ON-Resistance, +1.1V to +4.5V Single Supply, SPST Analog Switches    		 Switch 1 NO 8 5 89 160 pF 30 0.24 68 1.1 to 4.5 1.1 - 4.5 5E-05 SPST Standard 5 SC70
    ISL43L210
    Ultra Low ON-Resistance, +1.1V to +4.5V Single Supply, SPDT Analog Switch    		 Switch 1 MIX 7 3 25 110 pF 30 0.38 40 1.1 to 4.5 1.1 - 4.5 5E-05 SPDT Standard 6 SC70
    ISL54058
    Ultra Low ON-Resistance, Low-Voltage, Single Supply, Dual 4 to 1 Analog Multiplexer    		 MUX 8 2 x 4:1 29 29 201 pF 8 0.43 44 1.6 to 3.6 1.6 - 3.6 5E-05 Standard 16 uTQFN
    ISL54059
    Negative Signal Swing, Sub-Ohm, Dual SPDT Single Supply Switch    		 Switch/MUX 2 MIX 43 23 170 100 pF 8.13 0.52 36 1.8 to 6.5 1.8 - 6.5 0.0001 SPDT Standard 10 TDFN, uTQFN
    ISL54060
    Negative Signal Swing, Sub-Ohm, Dual SPST Single Supply Switch    		 Switch 1 NO 43 23 170 100 pF 8.13 0.52 36 1.8 to 6.5 1.8 - 6.5 0.0001 SPST Standard 10 TDFN, uTQFN
    ISL54061
    Negative Signal Swing, Sub-ohm, Dual SPST Single Supply Switch    		 Switch 1 NC 43 23 170 100 pF 8.13 0.52 36 1.8 to 6.5 1.8 - 6.5 0.0001 SPST Standard 10 TDFN, uTQFN
    ISL84051
    Low Voltage, Single and Dual Supply, 8-to-1 Multiplexer, Dual 4-to-1 Multiplexer and a Triple SPDT Analog Switch    		 MUX 8 1 x 8:1 50 40 2 26 pF 0.002 60 3 2 to 12, ±2 to ±6 2 - 12 0.0001 Standard 16 QSOP, SOICN, TSSOP
    ISL84052
    Low Voltage, Single and Dual Supply, 8-to-1 Multiplexer, Dual 4-to-1 Multiplexer and a Triple SPDT Analog Switch    		 MUX 8 2 x 4:1 50 40 2 18 pF 0.002 60 3 2 to 12, ±2 to ±6 2 - 12 0.0001 Standard 16 QSOP, SOICN, TSSOP
    ISL84053
    Low Voltage, Single and Dual Supply, 8-to-1 Multiplexer, Dual 4-to-1 Multiplexer and a Triple SPDT Analog Switch    		 Switch/MUX 6 3 x 2:1 50 40 2 14 pF 0.002 60 3 2 to 12, ±2 to ±6 2 - 12 0.0001 SPDT Standard 16 QSOP, SOICN

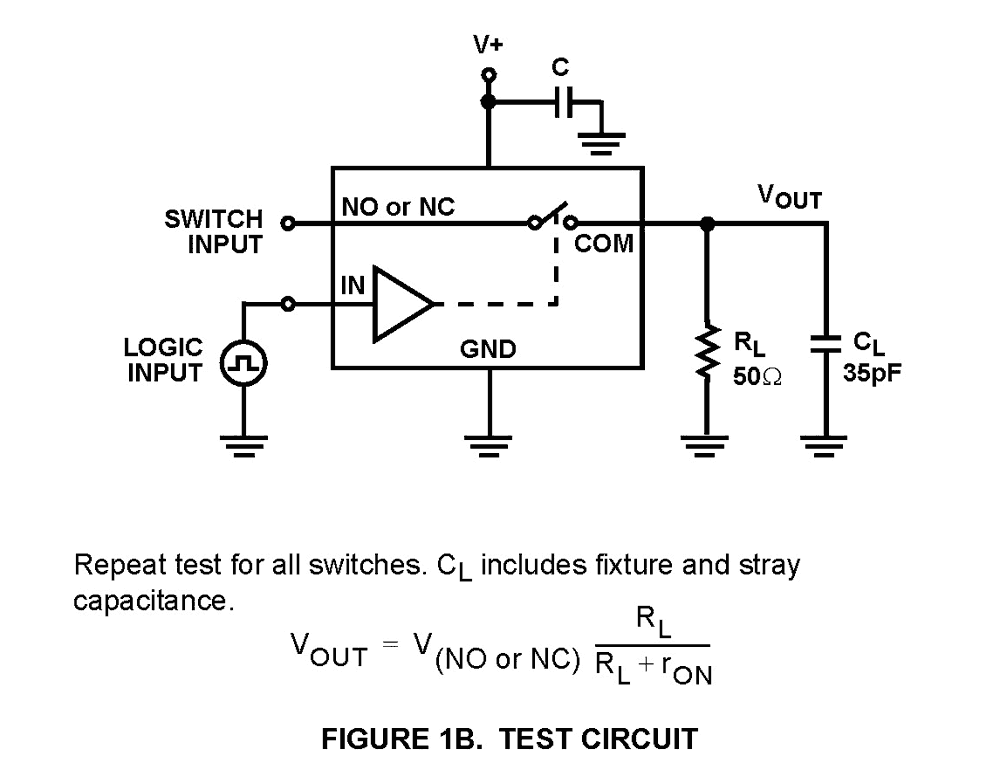

    ISL84467
    Ultra Low ON-Resistance, +1.65V to +4.5V, Single Supply, Quad SPDT (Dual DPDT) Analog Switch    		 Switch/MUX 8 4 x 2:1 33 16 248 102 pF 70 0.39 38 1.65 to 4.5 1.65 - 4.5 0.00015 SPDT (Dual DPDT) Standard 16 TQFN

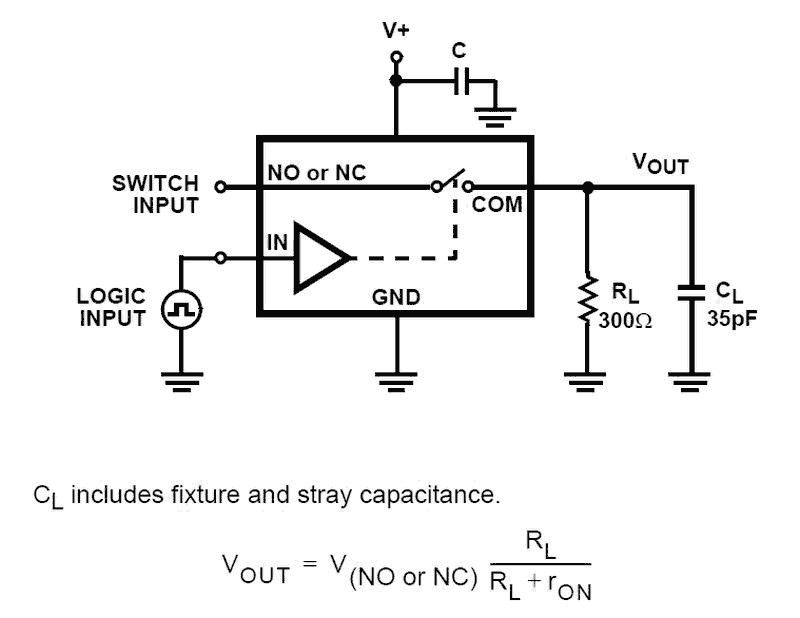

    ISL84515
    Low-Voltage, Single Supply, SPST, Analog Switches    		 Switch 1 NC 150 100 8 30 pF 4 10 14 2.4 to 12 2.4 - 12 0.002 SPST Standard 5 SOT23

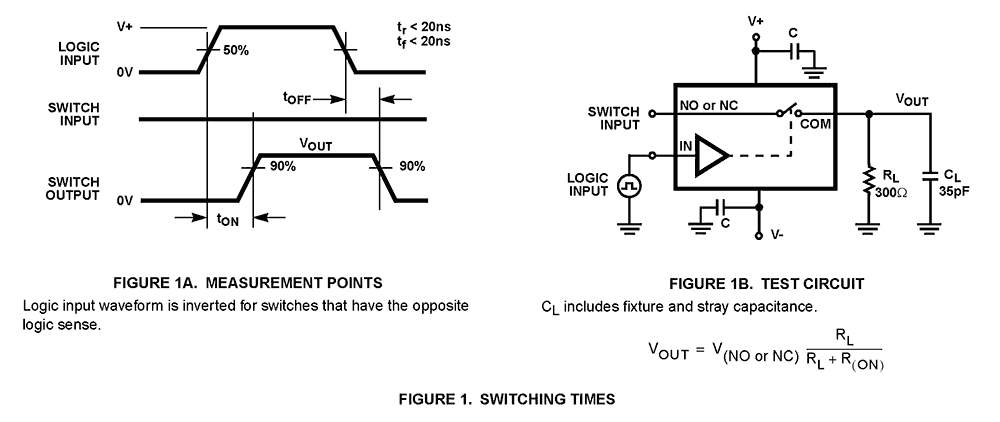

    ISL84516
    Low-Voltage, Dual Supply, SPST, Analog Switches    		 Switch 1 NO 40 30 10 22 pF 2 13 9 ±1.5 to ±6 0 - 6 0.04 SPST Standard 5 SOT23
