Digital DC/DC PMBus Module Evaluation Board
The ISL8277MEVAL1Z evaluation board is a 3in x 4.5in 4-layer FR4 board with 2 oz. of copper in all layers. This board comes with a placeholder for pin-strap resistors...
Digital DC/DC PMBus 25A Module
NOTICE - The following device(s) are recommended alternatives:
NRND - No Recommended Replacements Available - NRND
The ISL8277M is not recommended for new designs and has no alternative product available.
The ISL8277M is not recommended for new designs and has no alternative product available.
Jump to Page Section:
Overview
Description

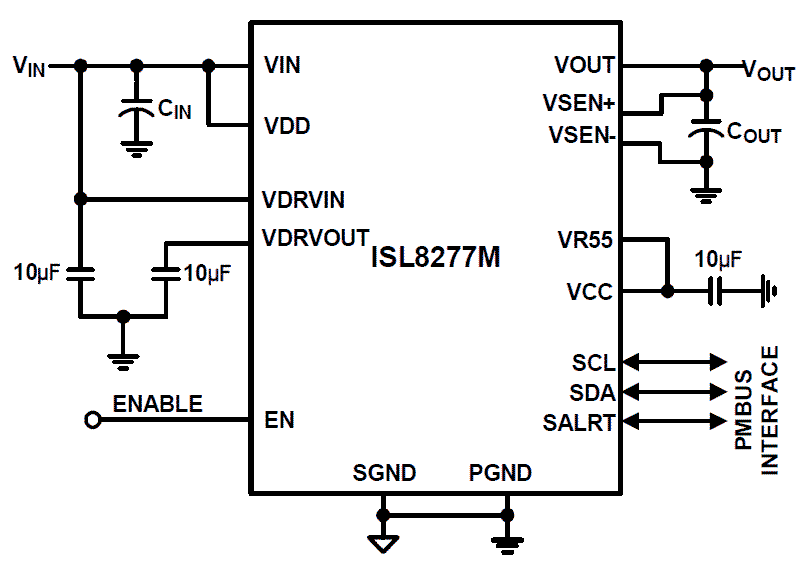

The ISL8277M is a 25A step-down DC/DC power supply module with an integrated digital PWM controller, synchronous power switches, an inductor, and passives. Only bulk input and output capacitors are needed to finish the design. The 25A of continuous output current can be delivered without a need of airflow or a heatsink. The thermally enhanced HDA module is capable of dissipating heat directly into the PCB. The ISL8277M uses ChargeMode™ control architecture, which responds to a transient load within a single switching cycle. The ISL8277M comes with a preprogrammed configuration for operating in a pin-strap mode. Output voltage, switching frequency, and device SMBus address can be programmed with external resistors. More configuration such as soft-start and fault limits can be easily programmed or changed using the PMBus compliant serial bus interface. PMBus can be used to monitor voltages, current, temperatures, and fault status. The ISL8277M is supported by PowerNavigator™ software, a graphical user interface (GUI) that can be used to configure modules to a desired solution. The ISL8277M is available in a 41-pin compact 17mmx19mm HDA module with very low profile height of 3. 6mm, suitable for automated assembly by standard surface mount equipment. The ISL8277M is RoHS compliant by exemption.
Features
- Complete digital switch mode power supply
- Wide VIN range: 4.5V to 14V
- Programmable VOUT range: 0.6V to 5V
- PMBus compliant I2C communication interface
- Programmable VOUT, margining, UV/OV, IOUT limit, soft-start/stop, sequencing, and external synchronization
- Monitor: VIN, VOUT, IOUT, temperature, duty cycle, switching frequency, and faults
- ChargeMode control architecture
- ±1.0% VOUT accuracy over line, load, and temperature
- Power-good indicator
- Over-temperature protection
- Internal nonvolatile memory and fault logging
- Patented thermally enhanced HDA package
- Intuitive configuration via PowerNavigator
Documentation
|
|
Date | |
|---|---|---|
| PDF 2.58 MB | Datasheet | |
| PDF 5.51 MB 日本語 | Brochure | |
| PDF 125 KB | Product Change Notice | |
| PDF 215 KB | End Of Life Notice | |
| PDF 295 KB | White Paper | |
| PDF 4.68 MB | Guide | |
| PDF 83 KB | Product Change Notice | |
| PDF 714 KB | Guide | |
| PDF 194 KB | Other | |
| PDF 693 KB | Manual - Hardware | |
| PDF 509 KB | Application Note | |
| PDF 397 KB | Application Note | |
