Renesas provides motor control solutions to support the entire development process. The product portfolio include devices that are particularly suitable for motor control, a motor control kit that can be used as a reference design, and complete software and tools.

Motor Control Solutions



Resolver Motor Control Solutions for Consumer and Industrial Applications

Renesas has developed motor solutions using resolver sensors. These solutions optimize resolvers which have been widely applied in automotive applications for motor control in the consumer and industrial fields. A resolver solution that combines a Renesas resolver to digital converter and RX Family 32-bit microcontroller (MCU) not only performs high-precision motor control, but also makes it possible to reduce the size of the motor and improve the environmental resistance of the system.

Features

  • High-precision motor control is possible even in harsh environments with heat, dust or vibration
  • Realize high-precision control at low cost using resolver control with superlative cost performance
  • Resolver signal gain, phase and angle error are automatically corrected through the driver API that can be used in combination with an RX 32-bit MCU to achieve high precision

In particular, the resolver motor control solution using the stepping motor with resolver manufactured by MinebeaMitsumi Inc. can control the motor with high precision even in harsh environments and rotation does not stop even at high loads.

Motor Control Evaluation System

Renesas high-performance MCU and analog and power (A&P) devices are ideally suited for motor control applications. Reference boards mounted with the inverter circuitry necessary for driving the motor and various sample code and application notes are ready to use. Complete motor control evaluation and development tools help reduce time to market, and they are ideal for the following purposes:

  1. Evaluation of Renesas devices (MCUs, A&P products)
  2. Reference for board and software design
  3. Learning about motor control

Evaluation System for BLDC Motor

Evaluation Kit for Permanent Magnet Synchronous Motors (Brushless DC Motor)

The Evaluation System for BLDC Motor is a solution kit for easily evaluating permanent magnet synchronous motors. When used in combination with a CPU card, various Renesas MCUs can control the motor. By using the Renesas Motor Workbench sample software and development support tool, evaluation and analysis can easily be performed, so you can start evaluation immediately after purchasing the kit.

Evaluation System for BLDC Motor User's Manual
Purchase the Evaluation System for BLDC Motor

Evaluation System for BLDC Motor

Evaluation System for Stepping Motor with Resolver

Stepping Motor Drive Evaluation Kit Using the Renesas Resolver to Digital Converter IC

The Evaluation System for Stepping Motor with Resolver is composed of a motor control MCU, an inverter circuit, a stepping motor with resolver sensor, and a resolver to digital converter IC. In addition, it supports the Renesas Motor Workbench motor control development support tool, which makes it easy to debug software and understand motor control.

Note: The 24V Motor Control Evaluation System for RX23T option CPU card cannot be used to operate the resolver sensor of this kit.

Evaluation System for Stepping Motor with Resolver User's Manual (PDF | English, 日本語)
Resolver Solutions
Resolver to Digital Converter IC

Evaluation System for Stepping Motor with Resolver

Motor Control Evaluation System for RAJ306000

Easy BLDC Motor Control Using RAJ 306000 Motor Control IC

The Renesas Motor Control Evaluation System for RAJ306000 allows you to control a permanent magnet synchronous motor (brushless DC motor) using the RAJ306000 motor control IC. Get up and running fast with the motor included in the kit or by using the downloadable sample software. A waveform table tool is available by purchasing an optional communication card.

RAJ306000 Motor Control IC
Purchase the Motor Control Evaluation System for RAJ306000

Motor Control Evaluation System for RAJ306000

Renesas Motor Workbench 2.0: Motor Control Development Tool 2.0

Using the 24V Motor Control Evaluation System for RX23T, Renesas Motor Workbench can display waveforms of the internal variables of the microcontroller in real time and automatically extract vector control parameters. To download Renesas Motor Workbench, please sign in or register for a My Renesas account.

Renesas Motor Workbench is updated to 2.0.

With this update, high-speed communication of ICS++ (In Circuit Scope plus) by Desk Top Laboratories Inc. has been supported, and functions and usability have been improved. It greatly contributes to improvement of debugging efficiency in the user system.

Motor RSSK Tool

Features

  • Analyzer
  • Math function
    • Calculate the waveform to the real time waveform display
    • Perform arithmetic operations, trigonometric functions and arithmetic of waveforms
    • Possible to display only the arithmetic expression
    • Effective for checking the deviation and displaying the model formula
  • Display of average value added to each channel of the waveform display
  • Expand waveform display candidate channel number to 32
    • The number of variables that can be set as waveform display candidates has been expanded to 32
    • Since it is possible to select the variable you want to check from the preset maximum of 32 variables according to the application, it is easy to switch the variable to display the waveform
  • Alias definition of variable name
    • Added a function to define an alias as a display name to be used in RMW as a variable
    • Defines aliases for variables with long names and variable names difficult to understand meanings
    • Useful when operating with development members other than software developers
  • Status indicator
    • This function changes the color of the status lamp and displays the status name when the variable value matches the set condition
    • It is a convenient function for mode transition confirmation and error cause display
  • Scope capture and image editor
    • Function to capture the waveform display screen and an editor function to insert a textbox and a markup balloon have been added
    • Convenient function when saving measured waveforms, comparing and creating reports
  • Tuner
  • Reduce input parameters to two
    • The input parameter of auto-adjust parameters has been reduced to two, rated current and number of pole pairs
  • Scope and memory
    • Display waveform after auto-adjust parameters
    • Up to three waveforms can be stored in the GUI, so comparison can be done easily
  • Skip
    • It inputs known parameters and omits the identification of the entered parameters
Motor Control Development Support Tool Renesas Motor Workbench 2.0 (ZIP | English, 日本語)



Authentication Expiration Notice

When starting this tool, the following messages about the expiration date of authentication may be displayed.

License expires soon: Displays when less than 30 days remain before the expiration date.

Renesas Motor Workbench License Expires Soon

Expiration date out: Displays when the expiration date is passed.

Renesas Motor Workbench License Expiration Date Out

To continue using the tool after the certificate expires, you need to import the latest authentication file and update the authentication.

  1. Download the latest authentication file after answering a simple questionnaire.
    Download Authentication File
  2. Import the authentication file by clicking the "Select" button on the certificate expiration message screen.

CPU Cards

These optional CPU cards for the 24V Motor Control Evaluation System for RX23T allow you to evaluate motor control using a different microcontroller by purchasing an additional CPU card and swapping it.

RX24T CPU Card



Renesas CPU Cards

Purchase Renesas CPU Cards

Desk Top Laboratories Inc. CPU Cards

  • RL78/G1F CPU Card (64-pin, 64KB) - T5103
  • RL78/G1G CPU Card (32-pin, 16KB) - T5104
  • RL78/G14 CPU Card (64-pin, 64KB) - T5101
  • RL78/G14 CPU Card (32-pin, 64KB) - T5105

Purchase Desk Top Laboratories CPU Cards

RZ/T1 Motion Control Solution Kit

Easy Development for Industrial Servo Drives

The RZ/T1 Motion Control Solution Kit delivers a complete hardware/software solution to help simplify embedded development for industrial servo drives and controllers, industrial robotic systems, factory equipment, and other machine tools that require high speed, responsiveness and excellent real-time performance.

RZ/T1 Motion Control Solution Kit
Purchase the RZ/T1 Motion Control Solution Kit

RZ/T1 Motion Control Solution Kit

Application Notes & Sample Code

Sample code and application notes for each type of motor control are listed below. A My Renesas ID is required.

Evaluation System for BLDC Motor
Permanent Magnet Synchronous Motor (Brushless DC Motor)

Control Method Download
Application Notes
About Algorithm
Download
Application Notes & Sample Code
About Implementation
Integrated
Development
Environment
Sensorless 120-degree conducting control 120-degree conducting control of permanent magnetic synchronous motor (Algorithm) (PDF | English, 日本語) RX23T  RX24T CS+
e2 studio
Sensorless 120-degree conducting control (with initial position detect function ) RX23T  RX24T CS+
e2 studio
Sensorless vector control Sensorless Vector Control for Permanent Magnet Synchronous Motor (Algorithm) (PDF | English, 日本語) Please contact us CS+
e2 studio
Encoder vector control Vector Control for Permanent Magnet Synchronous Motor with Encoder (Algorithm) (PDF | English, 日本語) Please contact us CS+
e2 studio

Evaluation System for Stepping Motor with Resolver Sensor

Control Method Download
Application Notes
About Algorithm
Download
Application Notes & Sample Code
About Implementation
Integrated
Development
Environment
Resolver vector control Vector control (position)
(algorithm)
RX24T Group Vector Control of a Two-Phase Stepping Motor Incorporating a Resolver Sensor (PDF | English, 日本語) (RX24T) CS+
e2 studio

30V Motor Control Evaluation System for RAJ306000
Permanent Magnet Synchronous Motor (Brushless DC Motor)

e2 studio
Control Method Download
Application Notes & Sample Code
About Implementation
Integrated
Development
Environment
Hall 120-degree conducting control 120 degrees conducting control with hall IC (RAJ306000 implementation guide) (PDF | English, 日本語)
120 degrees conducting speed control with hall IC (RAJ306000 implementation guide) (PDF | English, 日本語)
CS+
e2 studio
Sensorless 120-degree conducting control 120 degrees conducting control by Sensor-less drive (RAJ306000 implementation guide) (PDF | English, 日本語)
Encoder vector control Vector control with encoder (RAJ306000 implementation guide) (PDF) CS+
e2 studio

24V Motor Control Evaluation System for RX23T
Permanent Magnet Synchronous Motor (Brushless DC Motor)

Control Method Download
Application Notes
About Algorithm
Download
Application Notes & Sample Code
About Implementation
Integrated
Development
Environment
Hall 120-degree conducting control 120-degree conducting control of permanent magnetic synchronous motor (Algorithm) (PDF | English, 日本語) RX23T 120-degree conducting control of permanent magnetic synchronous motor using hall sensors (Implementation) (PDF | English, 日本語) (RX23T)

RX24T 120-degree conducting control of permanent magnetic synchronous motor using hall sensors (Implementation) (PDF | English, 日本語) (RX24T)

RL78/G1F 120-degree conducting control of permanent magnetic synchronous motor (Implementation) (PDF | English, 日本語) (RL78/G1F)

Speed control of 120-degree conducting controlled permanent magnetic synchronous motor using hall sensors (Implementation) (PDF | English, 日本語) (RL78/G1G*1)

Speed control of 120-degree conducting controlled permanent magnetic synchronous motor using hall sensors (Implementation) (PDF | English, 日本語) (RL78/G14)
CS+
e2 studio
Sensorless 120-degree conducting control RX23T Sensorless 120-degree conducting control of permanent magnetic synchronous motor (Implementation) (PDF | English, 日本語) (RX23T)

RX24T Sensorless 120-degree conducting control of permanent magnetic synchronous motor (Implementation) (PDF | English, 日本語) (RX24T)

RL78/G1F 120-degree conducting control of permanent magnetic synchronous motor (Implementation) (PDF | English, 日本語) (RL78/G1F)

RL78/G1G Sensorless Speed control of 120-degree conducting controlled permanent magnetic synchronous motor (Implementation) (PDF | English, 日本語) (RL78/G1G*1)

Sensorless Speed control of 120-degree conducting controlled permanent magnetic synchronous motor (Implementation) (PDF | English, 日本語) (RL78/G14)
CS+
e2 studio
Sensorless 120-degree conducting control (with initial position detect function ) RL78/G1F Sensorless speed control of 120-degree conducting controlled permanent magnetic synchronous motor with detection of initial position (Implementation) (PDF | English, 日本語) (RL78/G1F*3) CS+
e2 studio
Sensorless vector control Sensorless Vector Control for Permanent Magnet Synchronous Motor (Algorithm) (PDF | English, 日本語) RX13T Sensorless vector control for permanent magnetic synchronous motor (Implementation) (PDF | English, 日本語) (RX13T)

RX23T Sensorless vector control for permanent magnetic synchronous motor (Implementation) (PDF | English, 日本語) (RX23T)

RX24T/RX24U Sensorless vector control for permanent magnetic synchronous motor (Implementation) (PDF | English, 日本語) (RX24T, RX24U)

RX66T Sensorless vector control for permanent magnetic synchronous motor (Implementation) (PDF | English, 日本語) (RX66T (MTU/GPT)*4)

RX72T Sensorless vector control for permanent magnetic synchronous motor (Implementation) (PDF | English, 日本語) (RX72T (MTU/GPT)*4)

RL78/G1F (1 shunt)*2 *3  RL78/G1F (3 shunt)*2
CS+
e2 studio
Encoder vector control Vector Control for Permanent Magnet Synchronous Motor with Encoder (Algorithm) (PDF | English, 日本語) RX72T Vector control for permanent magnetic synchronous motor with encoder (Implementation) (PDF | English, 日本語) (RX72T (MTU/GPT)*4)

RX66T Vector control for permanent magnetic synchronous motor with encoder (Implementation) (PDF | English, 日本語) (RX66T (MTU/GPT)*4)

RX23T Vector control for permanent magnetic synchronous motor with encoder (Implementation) (PDF | English, 日本語) (RX23T)

RX24T/RX24U Vector control for permanent magnetic synchronous motor with encoder (Implementation) (PDF | English, 日本語) (RX24T, RX24U)
CS+
e2 studio

*1: Uses partner board.
*2: For information, contact Renesas sales or a distributor.
*3: To operate the program targeted by this application note, it is necessary to modify the circuit of the Renesas Solution Starter Kit 24V Motor Control Evaluation System for RX23T. If you modify the circuit, other programs for the Renesas Solution Starter Kit 24V Motor Control Evaluation System for RX23T will not be able to operate Regarding circuit modification, we do not guarantee the operation of this program after amendment.
*4: Two types of timer (MTU and GPT) settings are implemented as a PWM output timer, and it can be selected at compile time.

Combination of Partner Inverter Board (T1102 Trial Series) and Partner CPU Card (T5101 RL78/G14 64-pin)
(Three-Phase Induction Motor)

Control Method Download
Application Notes
About Algorithm
Download
Application Notes & Sample Code
About Implementation
Integrated
Development
Environment
V/f control V/f Control of Three-phase Induction Motor (Algorithm) (PDF | English, 日本語) V/f Control of Induction Motor(RL78/G14) (PDF | English, 日本語) (RL78/G14) CS+



Types of Motors

Types of Motors
  • Brushed DC Motor
  • Permanent Magnet Synchronous Motor (Brushless DC Motor)
  • Three-phase Induction Motor
  • Single-phase Induction Motor
  • Stepper Motor

Learn more about the various motors on the Motors Types page.

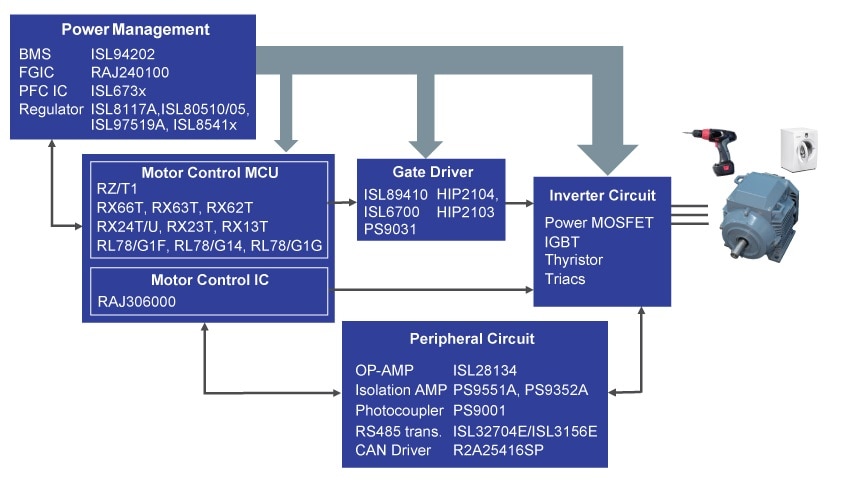

Recommended Products for Motor Control

Recommended Products for Motor Control



Partners

Desk Top Laboratories Inc.

Desk Top Laboratories Inc.

Sales of development tools for power electronics, consignment of motor control program development, consulting services

TEL: 81-42-689-6247
e-mail: saka@desktoplab.co.jp
http://desktoplab.co.jp/

Desk Top Laboratories Inverters and CPU Cards

Desk Top Laboratories Inverters and CPU Cards

Applications

Documentation & Downloads

Title Other Languages Type Format File Size Date
User Guides & Manuals
Evaluation System for Stepping Motor with Resolver User's Manual 日本語 Manual PDF 3.58 MB
Evaluation System for BLDC Motor with User's Manual 日本語 Manual PDF 969 KB
RX13T CPU Card User's Manual 日本語 Manual PDF 943 KB
RX72T CPU Card User's Manual 日本語 Manual PDF 1.25 MB
RX24T CPU Card User's Manual 日本語 Manual PDF 1011 KB
RX66T CPU Card User's Manual Manual PDF 1.28 MB
Renesas Solution Starter Kit 24V Motor Control Evaluation System for RX23T User's Manual 日本語 Manual PDF 1.71 MB
RX23T CPU Card User's Manual 日本語 Manual PDF 980 KB
RL78/G14 CPU Card User's Manual 日本語 Manual PDF 862 KB
RL78/G1F CPU Card User's Manual 日本語 Manual PDF 1.30 MB
RX24U CPU Card User's Manual 日本語 Manual PDF 1.14 MB
Application Notes & White Papers
- RX23T Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 1.03 MB
- RX24T Sensorless 120-degree conducting control for permanent magnetic synchronous motor (Implementation) For “Evaluation System for BLDC Motor” 日本語 Application Note PDF 1.66 MB
- RX23T 120-degree conducting control for permanent magnetic synchronous motor using hall sensors (Implementation) For "Evaluation System for BLDC Motor" 日本語 Application Note PDF 2.01 MB
- RX23T Sensorless 120-degree conducting control for permanent magnetic synchronous motor (Implementation) For “Evaluation System for BLDC Motor” 日本語 Application Note PDF 1.79 MB
- RX24T 120-degree conducting control for permanent magnetic synchronous motor using hall sensors (Implementation) For “Evaluation System for BLDC Motor” Application Note PDF 1.77 MB
- 永久磁石同期モータのホールセンサ利用120度通電制御 RX24T実装編 (Evaluation System for BLDC Motor用) Application Note PDF 1.82 MB
RX23T 120-degree conducting control for permanent magnetic synchronous motor using hall sensors (Implementation) For "Evaluation System for BLDC Motor" 日本語 Application Note PDF 2.01 MB
RX23T Sensorless 120-degree conducting control for permanent magnetic synchronous motor (Implementation) For “Evaluation System for BLDC Motor” 日本語 Application Note PDF 1.79 MB
RX24T 120-degree conducting control for permanent magnetic synchronous motor using hall sensors (Implementation) For “Evaluation System for BLDC Motor” Application Note PDF 1.77 MB
RX24T Sensorless 120-degree conducting control for permanent magnetic synchronous motor (Implementation) For “Evaluation System for BLDC Motor” 日本語 Application Note PDF 1.66 MB
RL78/G1F 120-degree conducting control of permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 1.47 MB
- RL78/G1F 120-degree conducting control of permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 1.47 MB
RX24T Group Vector Control of a Two-Phase Stepping Motor Incorporating a Resolver Sensor 日本語 Application Note PDF 1.70 MB
- RX24T Group Vector Control of a Two-Phase Stepping Motor Incorporating a Resolver Sensor 日本語 Application Note PDF 1.70 MB
RX13T Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 910 KB
- 120 degrees conducting speed control with hall IC (RAJ306000 implementation guide) 日本語 Application Note PDF 1.19 MB
- 120 degrees conducting control with hall IC (RAJ306000 implementation guide) 日本語 Application Note PDF 1.04 MB
120 degrees conducting speed control with hall IC (RAJ306000 implementation guide) 日本語 Application Note PDF 1.19 MB
120 degrees conducting control with hall IC (RAJ306000 implementation guide) 日本語 Application Note PDF 1.04 MB
120 degrees conducting control by Sensor-less drive (RAJ306000 implementation guide) 日本語 Application Note PDF 1.32 MB
- 120 degrees conducting control by Sensor-less drive (RAJ306000 implementation guide) 日本語 Application Note PDF 1.32 MB
RX72T Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Application Note PDF 962 KB
RX72T Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 811 KB
- RX72T Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Application Note PDF 962 KB
- RX72T Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 811 KB
- Vector control with encoder (RAJ306000 implementation guide) Application Note PDF 1.27 MB
- エンコーダ利用ベクトル制御(RAJ306000 実装編) Application Note PDF 1.57 MB
RX24T 120-degree conducting control of permanent magnetic synchronous motor using hall sensors (Implementation) 日本語 Application Note PDF 910 KB
RX23T 120-degree conducting control of permanent magnetic synchronous motor using hall sensors (Implementation) 日本語 Application Note PDF 901 KB
- RX24T 120-degree conducting control of permanent magnetic synchronous motor using hall sensors (Implementation) 日本語 Application Note PDF 910 KB
- RX23T 120-degree conducting control of permanent magnetic synchronous motor using hall sensors (Implementation) 日本語 Application Note PDF 901 KB
Vector Control for Permanent Magnet Synchronous Motor with Encoder (Algorithm) 日本語 Application Note PDF 529 KB
Sensorless Vector Control for Permanent Magnet Synchronous Motor (Algorithm) 日本語 Application Note PDF 557 KB
- RX66T Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Application Note PDF 959 KB
- RX66T Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 815 KB
RX66T Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Application Note PDF 959 KB
RX66T Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 815 KB
- RL78/G1F Sensorless speed control of 120-degree conducting controlled permanent magnetic synchronous motor with detection of initial position (Implementation) 日本語 Application Note PDF 2.38 MB
RL78/G1F Sensorless speed control of 120-degree conducting controlled permanent magnetic synchronous motor with detection of initial position (Implementation) 日本語 Application Note PDF 2.38 MB
- Speed control of 120-degree conducting controlled permanent magnetic synchronous motor using hall sensors (Implementation) 日本語 Application Note PDF 1.73 MB
RX23T Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Application Note PDF 1.12 MB
RX24T/RX24U Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Application Note PDF 1.08 MB
RX24T/RX24U Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 1.04 MB
RX23T Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 1.03 MB
- RX24T/RX24U Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Application Note PDF 1.08 MB
- RX23T Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Application Note PDF 1.12 MB
- RX24T/RX24U Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 1.04 MB
- Speed control of 120-degree conducting controlled permanent magnetic synchronous motor using hall sensors (Implementation) 日本語 Application Note PDF 1.95 MB
RL78/G1G Sensorless Speed control of 120-degree conducting controlled permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 1.99 MB
- RL78/G1G Sensorless Speed control of 120-degree conducting controlled permanent magnetic synchronous motor (Implementation) 日本語 Application Note PDF 1.99 MB
120-degree conducting control of permanent magnetic synchronous motor (Algorithm) 日本語 Application Note PDF 583 KB
- V/f Control of Induction Motor(RL78/G14) 日本語 Application Note PDF 849 KB
V/f Control of Induction Motor(RL78/G14) 日本語 Application Note PDF 849 KB
V/f Control of Three-phase Induction Motor (Algorithm) 日本語 Application Note PDF 215 KB
Downloads
RX23T Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Sample Code ZIP 3.74 MB
RX24T Sensorless 120-degree conducting control for permanent magnetic synchronous motor (Implementation) For “Evaluation System for BLDC Motor” Sample Code ZIP 4.54 MB
RX23T 120-degree conducting control for permanent magnetic synchronous motor using hall sensors (Implementation) For “Evaluation System for BLDC Motor” Sample Code ZIP 4.89 MB
RX23T Sensorless 120-degree conducting control for permanent magnetic synchronous motor (Implementation) For “Evaluation System for BLDC Motor” Sample Code ZIP 4.58 MB
RX24T 120-degree conducting control for permanent magnetic synchronous motor using hall sensors (Implementation) For “Evaluation System for BLDC Motor” Sample Code ZIP 4.77 MB
- RX23T 120-degree conducting control for permanent magnetic synchronous motor using hall sensors (Implementation) For “Evaluation System for BLDC Motor” Sample Code ZIP 4.89 MB
- RX23T Sensorless 120-degree conducting control for permanent magnetic synchronous motor (Implementation) For “Evaluation System for BLDC Motor” Sample Code ZIP 4.58 MB
- RX24T 120-degree conducting control for permanent magnetic synchronous motor using hall sensors (Implementation) For “Evaluation System for BLDC Motor” Sample Code ZIP 4.77 MB
- RX24T Sensorless 120-degree conducting control for permanent magnetic synchronous motor (Implementation) For “Evaluation System for BLDC Motor” Sample Code ZIP 4.54 MB
- RL78/G1F 120-degree conducting control of permanent magnetic synchronous motor (Implementation) Sample Code ZIP 5.82 MB
RL78/G1F 120-degree conducting control of permanent magnetic synchronous motor (Implementation) Sample Code ZIP 5.82 MB
- RX24T Group Vector Control of a Two-Phase Stepping Motor Incorporating a Resolver Sensor Sample Code ZIP 4.83 MB
RX24T Group Vector Control of a Two-Phase Stepping Motor Incorporating a Resolver Sensor Sample Code ZIP 4.83 MB
- RX13T Sensorless vector control for permanent magnetic synchronous motor (Implementation) Sample Code ZIP 3.51 MB
120 degrees conducting speed control with hall IC (RAJ306000 implementation guide) 日本語 Sample Code ZIP 2.17 MB
120 degrees conducting control with hall IC (RAJ306000 implementation guide) 日本語 Sample Code ZIP 2.02 MB
- 120 degrees conducting speed control with hall IC (RAJ306000 implementation guide) 日本語 Sample Code ZIP 2.17 MB
- 120 degrees conducting control with hall IC (RAJ306000 implementation guide) 日本語 Sample Code ZIP 2.02 MB
- 120 degrees conducting control by Sensor-less drive (RAJ306000 implementation guide) 日本語 Sample Code ZIP 2.35 MB
120 degrees conducting control by Sensor-less drive (RAJ306000 implementation guide) 日本語 Sample Code ZIP 2.35 MB
- RX72T Vector control for permanent magnetic synchronous motor with encoder (Implementation) Sample Code ZIP 4.08 MB
- RX72T Sensorless vector control for permanent magnetic synchronous motor (Implementation) Sample Code ZIP 3.61 MB
RX72T Vector control for permanent magnetic synchronous motor with encoder (Implementation) Sample Code ZIP 4.08 MB
RX72T Sensorless vector control for permanent magnetic synchronous motor (Implementation) Sample Code ZIP 3.61 MB
Vector control with encoder (RAJ306000 implementation guide) 日本語 Sample Code ZIP 1.45 MB
- RX24T 120-degree conducting control of permanent magnetic synchronous motor using hall sensors (Implementation) Sample Code ZIP 3.18 MB
- RX23T 120-degree conducting control of permanent magnetic synchronous motor using hall sensors (Implementation) Sample Code ZIP 3.21 MB
RX24T 120-degree conducting control of permanent magnetic synchronous motor using hall sensors (Implementation) Sample Code ZIP 3.18 MB
RX23T 120-degree conducting control of permanent magnetic synchronous motor using hall sensors (Implementation) Sample Code ZIP 3.21 MB
RX66T Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Sample Code ZIP 2.87 MB
RX66T Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Sample Code ZIP 2.58 MB
- RX66T Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Sample Code ZIP 2.87 MB
- RX66T Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Sample Code ZIP 2.58 MB
RL78/G1F Sensorless speed control of 120-degree conducting controlled permanent magnetic synchronous motor with detection of initial position (Implementation) 日本語 Sample Code ZIP 3.81 MB
- RL78/G1F Sensorless speed control of 120-degree conducting controlled permanent magnetic synchronous motor with detection of initial position (Implementation) 日本語 Sample Code ZIP 3.81 MB
Speed control of 120-degree conducting controlled permanent magnetic synchronous motor using hall sensors (Implementation) 日本語 Sample Code ZIP 15.69 MB
- RX23T Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Sample Code ZIP 3.05 MB
- RX24T/RX24U Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Sample Code ZIP 4.96 MB
- RX24T/RX24U Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Sample Code ZIP 4.01 MB
- RX23T Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Sample Code ZIP 3.74 MB
RX24T/RX24U Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Sample Code ZIP 4.96 MB
RX23T Vector control for permanent magnetic synchronous motor with encoder (Implementation) 日本語 Sample Code ZIP 3.05 MB
RX24T/RX24U Sensorless vector control for permanent magnetic synchronous motor (Implementation) 日本語 Sample Code ZIP 4.01 MB
Speed control of 120-degree conducting controlled permanent magnetic synchronous motor using hall sensors (Implementation) 日本語 Sample Code ZIP 3.39 MB
- RL78/G1G Sensorless Speed control of 120-degree conducting controlled permanent magnetic synchronous motor (Implementation) 日本語 Sample Code ZIP 3.27 MB
RL78/G1G Sensorless Speed control of 120-degree conducting controlled permanent magnetic synchronous motor (Implementation) 日本語 Sample Code ZIP 3.27 MB
V/f Control of Induction Motor(RL78/G14) 日本語 Sample Code ZIP 1.12 MB
- V/f Control of Induction Motor(RL78/G14) 日本語 Sample Code ZIP 1.12 MB
Other
Motor Control Development Support Tool Renesas Motor Workbench 2.0 日本語 Software & Tools - Others ZIP 38.54 MB
- Motor Control Development Support Tool 2.0Renesas Motor Workbench" Software License Agreement" 日本語 Others PDF 189 KB

Boards & Kits

Part Number Title Type Company
RTK0EMX270S00020BJ Evaluation System for BLDC Motor Starter
RTK0EMX270S01020BJ Evaluation System for Stepping Motor with Resolver Starter
RTK0EM0006S01212BJ 24V Motor Control Evaluation System for RX23T Starter
YDRIVE-IT-RZT1 RZ/T1 Motion Control Solution Kit Reference
RX62T-Low-Voltage-Motor-Control RX62T Low Voltage Motor Control Evaluation System Starter
RL78/G14-Low-Voltage-Motor-Control Low Voltage Motor Control Evaluation System with RL78/G14 Starter

News & Additional Resources
