Overview

The Evaluation System for BLDC Motor provided by Renesas is a low-voltage permanent magnet synchronous motor (brushless DC motor) solution that allows anyone to easily evaluate the motor. After purchase, you can download the software from the website and start evaluating immediately.

Renesas Evaluation System for BLDC Motor

Permanent magnet synchronous motor (brushless DC motor)
Three-shunt current detection function

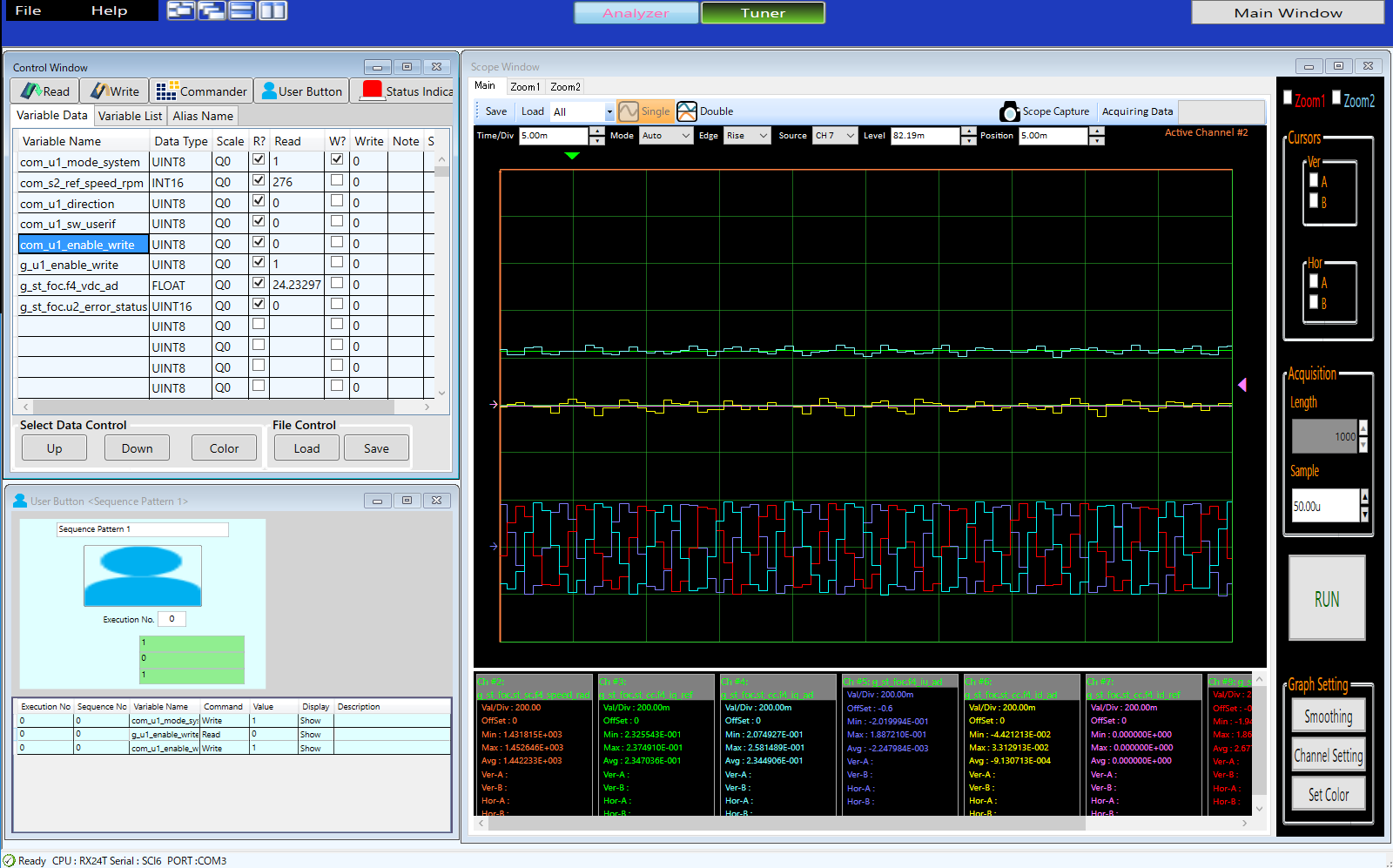

Supports Motor Control Development Support Tool Renesas Motor Workbench
Overcurrent protection function
With optional CPU cards (sold separately), various motor control MCUs can be evaluated.
This product is a successor product of "24V Motor Control Evaluation System for RX23T"
Compatible with higher voltage and current than conventional kits (48V / 5A)
Compatible with existing CPU cards
Since the sample programs released in Evaluation System for BLDC Motor and 24V Motor Control Evaluation System for RX23T are different, please use the appropriate kit according to the control method you are considering. 24V Motor Control Evaluation System for RX23T will be integrated into the Evaluation System for BLDC Motor in the future.

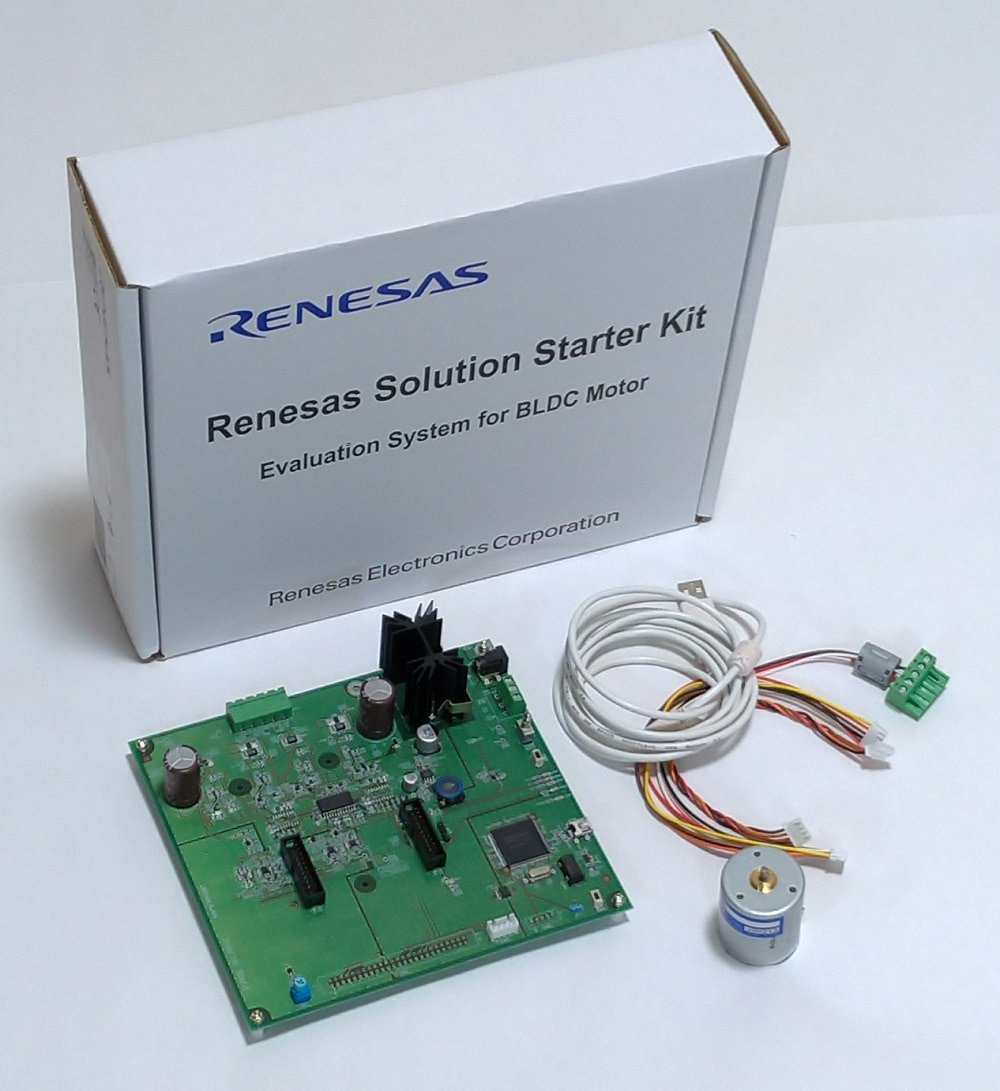

Included items
