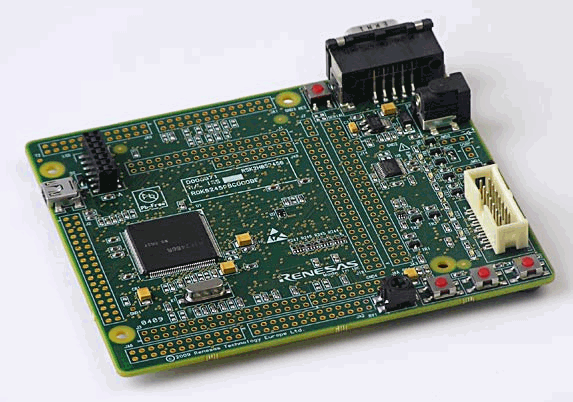

The Renesas Starter Kit for H8S/2456R is intended as a user-friendly introductory and evaluation tool for the H8S/2456R microcontroller. The board also provides a useful platform for evaluating the Renesas suite of development tools for coding and debugging, using High-performance Embedded Workshop as well as programming the device using E10A emulator. The Renesas Starter Kit for H8S/2456R may be connected to the host PC using a simple RS232 serial connection or via the included USB E10A on chip debugging interface.

The purpose of the board is to enable the user to evaluate the capabilities of the device and its peripherals by giving the user a simple platform on which code can be run only minutes from opening box. It can also prove an invaluable tool in development by providing a useful test platform for code already debugged using one of our more powerful emulation tools.

Configuration

  • CPU Board
  • Detachable LCD Display Module
  • Detachable AD Adjustment Shaft
  • E10A-USB for Starter Kit (a special emulator for only Renesas Starter Kit products.)
  • Connection Cable (USB Cable, User Interface Cable)
  • Multi region 5 V power supply
  • Quick Start Guide
  • CD-ROM
    - Documents: User Manual, Tutorial, and more
    - IDE: High-performance Embedded Workshop
    - C/C++ Compiler: C/C++ Compiler Package for H8SX, H8S, H8 Families Evaluation Version
    - Debugger: E10A-USB Emulator Debugger
    - Flash Memory Programmer: Flash Development Toolkit Evaluation Version

Notes

Evaluation versions differ from their full-versions in functionality and performance. And technical support services are NOT available.

Learn More (Evaluation Software Tools) >>

Ordering Information

This product can be purchased through the normal sales channels.

Product Name Debugger
Supplied
Part Number
(Ordering Number)
Availability
Renesas Starter Kit for H8S/2456R E10A R0K524568S000BE Available

Documentation & Downloads

Title Other Languages Type Format File Size Date
User Guides & Manuals
Renesas Starter Kit for H8S/2456R CPU Board Schematics Manual PDF 193 KB
Renesas Starter Kit for H8S/2456R USB Sample Code User's Manual Manual PDF 449 KB
Renesas Starter Kit for H8S/2456R User's Manual Manual PDF 736 KB
Renesas Starter Kit for H8S/2456R Quick Start Guide Manual PDF 188 KB
Renesas Starter Kit for H8S/2456R Tutorial Manual Manual PDF 336 KB
Application Notes & White Papers
- H8S/2456 Renesas Starter Kit Sample Code 日本語, 简体中文 Application Note PDF 73 KB
H8S/2456 Renesas Starter Kit Sample Code 日本語, 简体中文 Application Note PDF 73 KB
Downloads
[Evaluation Software] Flash Development Toolkit V.4.09 Release 03 日本語 Evaluation Software EXE 40.31 MB
H8S/2456 Renesas Starter Kit Sample Code Sample Code ZIP 6.43 MB
- H8S/2456 Renesas Starter Kit Sample Code Sample Code ZIP 6.43 MB
- タイマAが不足したときのタイマパルス出力応用例 Sample Code ZIP 409 KB
- 定时器RD(复位同步PWM模式) Sample Code ZIP 970 KB
[Evaluation Software]C/C++ Compiler Package for H8SX,H8S,H8 Family V.7.00 Release 00 日本語 Evaluation Software EXE 97.60 MB
Other
Renesas Starter Kit for H8S/2456R Installer V.1.00 Software & Tools - Others ZIP 322.61 MB
