Versatile, High Resolution 18-Bit Sensor Signal Conditioner
Jump to Page Section:
Overview
Description

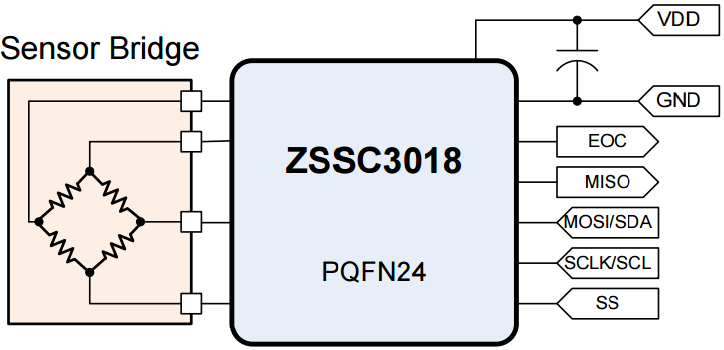

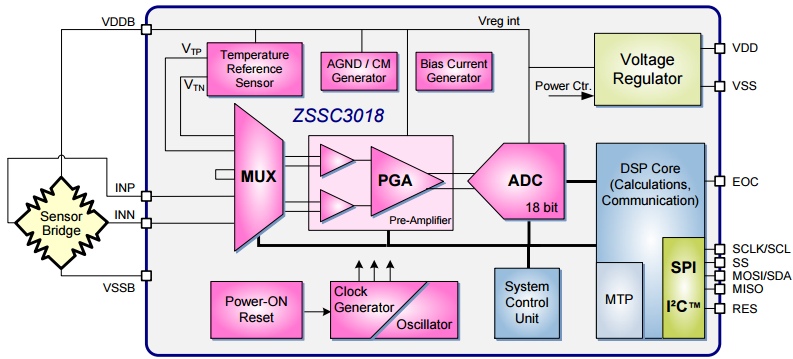

The ZSSC3018 is a sensor signal conditioner (SSC) integrated circuit for high-accuracy amplification and analog-to-digital conversion of differential or pseudo-differential input signals. Designed for high-resolution sensor module applications, the ZSSC3018 can perform offset, span, and 1st and 2nd order temperature compensation of the measured signal. Developed for correction of resistive bridge or absolute voltage sensors, it can also provide a corrected temperature output measured with an internal sensor. The measured and corrected sensor values are provided at the digital output pins, which can be configured as I2C (≤ 3.4MHz) or as SPI (≤ 10MHz). Digital compensation of signal offset, sensitivity, temperature, and non-linearity is accomplished via a 26-bit internal digital signal processor (DSP) running a correction algorithm. Calibration coefficients are stored on-chip in a highly reliable, non-volatile, multiple-time programmable (MTP) memory. Programming the ZSSC3018 is simple via the serial interface. The interface is used for the PC-controlled calibration procedure, which programs the set of calibration coefficients in memory. The ZSSC3018 provides accelerated signal processing, increased resolution, and improved noise immunity in order to support high-speed control, safety, and real-time sensing applications with the highest requirements for energy efficiency.
Features
- Flexible, programmable analog front-end design, up to 18-bit analog-to-digital converter (ADC)
- Fully programmable gain amplifier with gain range from 6.6 to 216 (linear)
- Internal auto-compensated temperature sensor
- Digital compensation of individual sensor offset
- 1st and 2nd order digital compensation of sensor gain as well as of 1st and 2nd order temperature gain and offset drift
- Programmable interrupt operation
- High-speed sensing: e.g., 16-bit conditioned sensor signal measurement rate >500s-1
- Typical sensor elements can achieve an accuracy of better than ±0.01% full-scale output
Design & Development
Software & Tools
Boards & Kits
Boards & Kits
Evaluation Kit for ZSSC3018
The ZSSC3018KIT Evaluation Kit provides the hardware needed for configuration, calibration and evaluation of the ZSSC3018 Sensor Signal Conditioner (SSC) IC. The user's...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
| VFQFPN | 24 | -40 to 125°C | Reel | Get Samples, | ||
| WAFER | 304µm thickness | 0 | -40 to 125°C | Wafer | ||
| WAFER | 725µm thickness | 0 | -40 to 125°C | Wafer | ||
| WAFER | 725µ die on sawn wafer | 0 | -40 to 125°C | Wafer | ||
| WAFER | 725µ die in waffle pack | 0 | -40 to 125°C | WFP |
