Renesas offers several hot swap and hot plug controllers that enable inserting and/or removing components without interruption to a system.
Hot Swap/Hot Plug Controllers
ページセクションへ移動：
セレクションテーブル
Processing table
Outputs (#) |
Internal / External FET |
VBIAS (Min) (V) |
VBIAS (Max) (V) |
Controlled Voltages (V) |
Regulation or Latch-Off for Overcurrent |
Adjustable or Fixed OC VTH |
Adjustable Gate Ramp |
Advanced Fault Protection |
RDS (ON) (Ohms) |
Reporting |
System Management: System Resets, Power Indicators, Fault Detection |
UV/OV Feature |
Bias Voltage Range (V) |
Qualification Level |
Lead Count (#) |
Pkg. Type |
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 型名 | |||||||||||||||||
| Single, Double or Triple-Output Hot Plug™ Controller | 3 | Ext | 5 | 12 | ≤ Bias Voltage | N/A | いいえ | いいえ | N/A | いいえ | N/A | 5 - 12 | Standard | 5 | SOT23 | ||
| Power Distribution Controllers | 1 | Ext | 12 | 12 | 12 | Current Regulation | Adjustable | はい | はい | PGOOD + Fault Off | はい | UV Lockout | 12 | Standard | 8 | SOICN | |
| 12V Power Distribution Controllers | 1 | Ext | 12 | 12 | 12 | Current Regulation | Adjustable | はい | はい | PGOOD + Fault Off | はい | UV Lockout | 12 | Standard | 8 | SOICN | |
| Negative Voltage Hot Plug Controller | 1 | Ext | -80 | -20 | -20 to - 80, 80 | Current Regulation | Fixed | はい | はい | PWRGD-bar | はい | UV/OV Lockout | -80 - -20 | Standard | 8 | SOICN | |

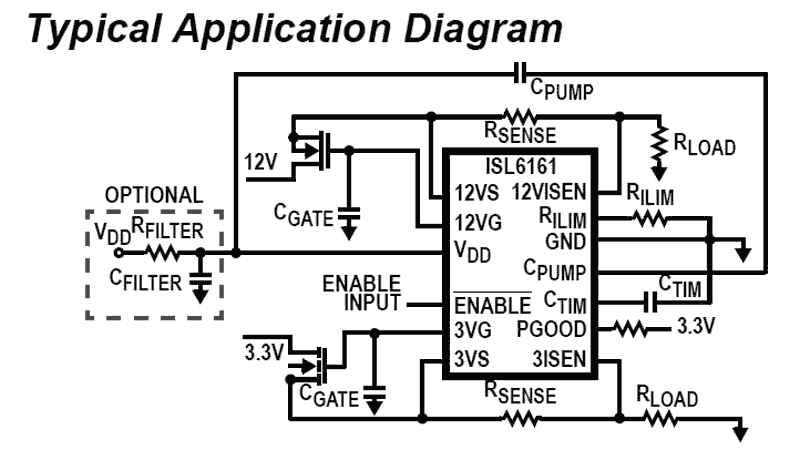

| Dual Power Distribution Controller | 2 | Ext | 10.5 | 13.2 | +12 and +3.3 | Current Regulation | いいえ | いいえ | PGOOD for UV or OC | いいえ | UV Notification | 1.5 - 13.2 | Standard | 14, 16 | SOICN, TSSOP | ||
| デュアルUSBポート電源コントローラ - 商用温度範囲0℃～+70℃をカバー | 2 | Int | 2.5 | 5.5 | +2.5 to +5.5 | Current Regulation (0.6A , 1.1A, 1.5A, 1.8A) | いいえ | いいえ | 0.071 | FAULT-bar for OC | いいえ | UV Lockout | 2.5 - 5.5 | Standard | 8 | DFN, SOICN | |
| デュアルUSBポート電源コントローラ – 産業用温度範囲（-40℃～+85℃）をカバー | 2 | Int | 2.5 | 5.5 | +2.5 to +5.5 | Current Regulation (0.6A , 1.1A, 1.5A, 1.8A) | いいえ | いいえ | 0.071 | FAULT-bar for OC | いいえ | UV Lockout | 2.5 - 5.5 | Standard | 8 | DFN, SOICN | |
| USBポート電源コントローラ - 産業用温度範囲（-40℃～＋85℃）をカバー | 1 | Int | 2.5 | 5.5 | +2.5 to +5.5 | Current Regulation (1.5A, 3A, 3.6A) | いいえ | いいえ | 0.045 | FAULT-bar for OC, Unique in class PGOOD Output | いいえ | UV Lockout | 2.5 - 5.5 | Standard | 8 | SOICN |
