概要

説明

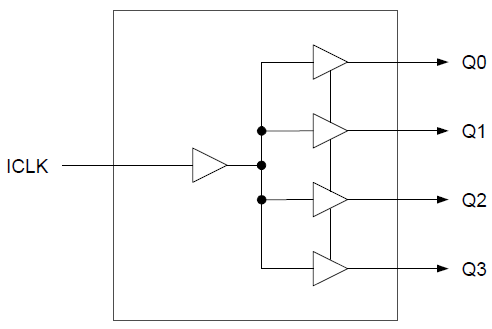

The 524S is a low skew, single input to four output, LVCMOS clock buffer. The 524S has best in class additive phase Jitter of sub 50 fsec.


特長

  • Low additive phase jitter RMS: 50fs
  • Extremely low skew outputs (50ps)
  • Low cost clock buffer
  • Packaged in 8-SOIC and 8-DFN, Pb-free
  • ICLK is PDT and may be driven before VDD is applied
  • Direct-coupled signal path suitable for 1pps clocks
  • Input / Output clock frequency up to 200MHz
  • Non-inverting output clock
  • Ideal for networking clocks
  • Operating voltages: 1.8V to 3.3V
  • Advanced, low power CMOS process
  • Extended temperature range (-40°C to +105°C)

製品比較

アプリケーション

ドキュメント

分類 タイトル 日時
データシート PDF 267 KB
アプリケーションノート PDF 187 KB
概要 PDF 217 KB
製品変更通知 PDF 268 KB
製品変更通知 PDF 611 KB
製品変更通知 PDF 611 KB
アプリケーションノート PDF 495 KB
アプリケーションノート PDF 442 KB
アプリケーションノート PDF 565 KB
9 items

設計・開発

モデル

Low-jitter LVCMOS Fanout Clock Buffers by IDT

This video overviews the LVCMOS Fanout Buffers, showcasing their best-in-class performance with extremely low phase jitter, minimal output skew, and low power consumption, along with other competitive features.
