8SLVP2102I

アクティブ
長期製品供給対象

Dual 1:2, 3.3V, 2.5V LVPECL Output Fanout Buffer

ご購入

特長

  • Two low skew, low additive jitter LVPECL output pairs
  • Two selectable, differential clock input pairs
  • Differential pairs can accept the following differential input levels: LVDS, LVPECL, CML
  • Maximum input clock frequency: 2GHz
  • Output skew: 5ps (typical)
  • Propagation delay: 225ps (maximum)
  • Low additive phase jitter, RMS, fREF = 156.25MHz, VPP = 1V, 12kHz – 20MHz: 36fs (maximum)
  • Full 3.3V and 2.5V supply voltage
  • Maximum device current consumption (IEE): 56mA (maximum)
  • Available in lead-free (RoHS 6), 16-Lead VFQFN package
  • -40°C to 85°C ambient operating temperature
RFバッファ内の他の製品を探す

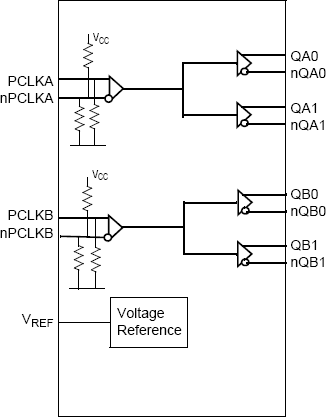

8SLVP2102I - Block Diagram
8SLVP2102I - Pinout
8SLVP2102I - Block Diagram
8SLVP2102I - Pinout

説明

The 8SLVP2102I is a high-performance differential LVPECL fanout buffer. The device is designed for the fanout of high-frequency, very low additive phase-noise clock and data signals. The 8SLVP2102I is characterized to operate from a 3.3V or 2.5V power supply. Guaranteed output-to-output and part-to-part skew characteristics make the 8SLVP2102I ideal for those clock distribution applications demanding well-defined performance and repeatability. Two selectable differential inputs and four low skew outputs are available. The integrated bias voltage reference enables easy interfacing of single-ended signals to the device inputs. The device is optimized for low power consumption and low additive phase noise.

パラメータ

属性 値
Outputs (#) 4
Inputs (#) 2
Channels (#) 2
Input Freq (MHz) 2000
Output Freq Range (MHz) 2000
Output Skew (ps) 15
Adjustable Phase No
Noise Floor (dBc/Hz) -162
Additive Phase Jitter Typ RMS (fs) 31
Output Type LVPECL
Supply Voltage (V) 2.5 - 2.5, 3.3 - 3.3
Advanced Features Dual Buffer

パッケージオプション

Pkg. Type Pkg. Dimensions (mm) Lead Count (#) Pitch (mm)
VFQFPN 3.0 x 3.0 x 1.0 16 0.5

適用されたフィルター

読込中
読込中

Overview of IDT's 8LSVP (LVPECL) and 8SLVD (LVDS) families of low-jitter fanout buffers from IDT. Fanout buffers are a useful building block of many clock trees, providing signal buffering and multiple low-skew copies of the input signal. IDT's high-performance, low additive phase noise, differential clock fan-out buffers offer up to 2 GHz clock operation, low additive phase jitter (12kHz - 20MHz) of 50 to 100 femtoseconds RMS max, fast output rise & fall times (less than 150ps), and single and dual channel functions (dual: matched propagation delay). Presented by Baljit Chandhoke, Product Marketing Manager at Integrated Device Technology, Inc. To learn more about IDT's industry-leading portfolio of fanout buffers, visit Renesas's RF Buffer page.
