特長

  • Traditional 8 OE# pins allow hardware control of 8 outputs and 20 SMBus bits allow software control of each output
  • Simple 3-wire Side-Band Interface allows real-time control of all 20 outputs
  • Outputs remain Low/Low when powered up with a floating input clock
  • Low-Power HCSL (LP-HCSL) outputs reduce device power consumption by 50%
  • Zo = 85Ω outputs eliminate 80 resistors, saving 130mm2 of area
  • 9 selectable SMBus addresses
  • Spread spectrum compatible

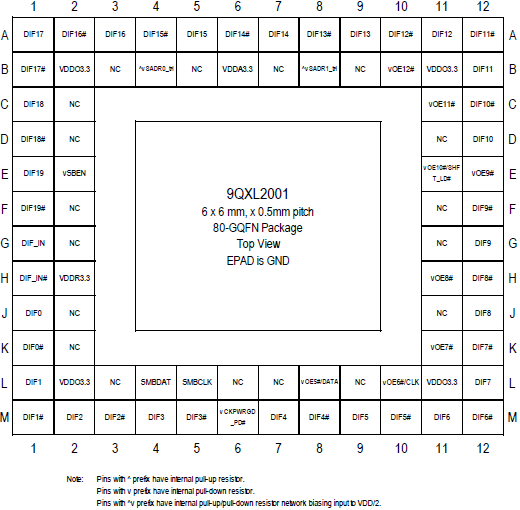

  • 6mm × 6mm dual-row 80-GQFN

説明

The 9QXL2001B is a 20-output very-low-additive phase jitter fanout buffer for PCIe Gen 4, Gen 5, and UPI applications. The 9QXL2001B provides two methods to control output enables; standard OE# pins and SMBus enable bits, or a simple 3-wire serial interface that is independent of the SMBus. The OE Control Mode is set via a hardware strap. It offers integrated terminations for 85Ω transmission lines.

パラメータ

属性
Diff. Outputs20
Diff. Output SignalingLP-HCSL
Output Freq Range (MHz)1 - 400
Diff. Inputs1
Diff. Input SignalingHCSL
Accepts Spread Spec InputYes
Power Consumption Typ (mW)488
Supply Voltage (V)3.3 - 3.3
Output TypeLP-HCSL
Diff. Termination Resistors24
Package Area (mm²)81
Battery BackupNo
Battery SealNo
CPU Supervisory Function PORNo
Crystal Frequency TrimmingNo
Frequency Out PinNo
Inputs (#)1
Input Freq (MHz)1 - 400
FunctionFanout Buffer
Input TypeHCSL
Output Banks (#)1
Core Voltage (V)3.3
Output Voltage (V)0.7
Product CategoryPCI Express Clocks, Processor Clock Buffers, Zero Delay Buffers

パッケージオプション

Pkg. TypePkg. Dimensions (mm)Lead Count (#)Pitch (mm)
VFQFPN6.0 x 6.0 x 0.85800.5

アプリケーション

  • Servers
  • Storage
  • Networking
  • Accelerators
