The ISL24822 is a programmable 14-Channel, 10-bit reference voltage generator with a digitally-controlled VCOM Calibrator and op amp. Two selectable banks of 14 channels allow fast hardware or software switching between 2 different gamma curves. The ISL24822 is configured and controlled via a standard I2C Interface. The ISL24822 is available in a 32 Ld TQFN package and is specified for operation over the -40°C to +85°C temperature range.

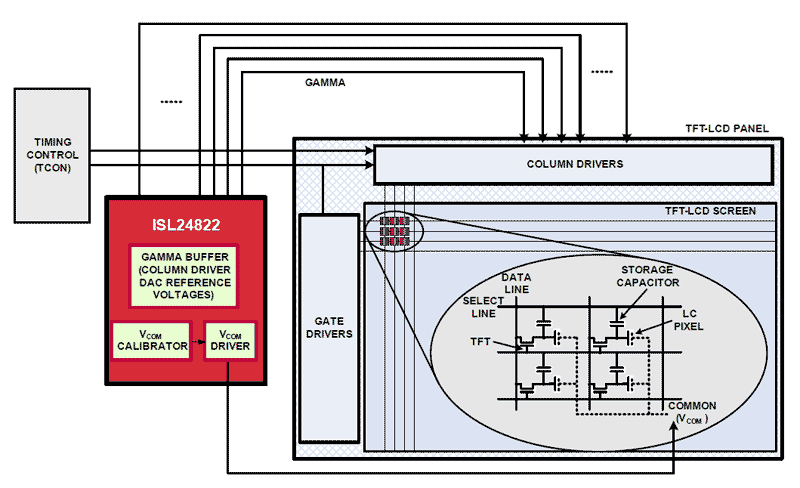

ISL24822 Functional Diagram
ISL24822 Functional Diagram
  • 14 I2C-programmable 10-bit DACs
  • Integrated programmable VCOM calibrator
  • VCOM op amp
  • 2 Banks of volatile memory for DACs
  • 4.5V to 19V analog supply range
  • 2.25V to 3.6V digital supply range
  • 20mA analog supply current (unloaded)
  • 700μA digital supply current
  • I2C serial interface
  • Pb-free (RoHS compliant)
