Programmable 18-Channel x 2 Bank, 10-Bit TFT-LCD VREF Generator with Buffered VCOM Calibrator
ページセクションへ移動：
概要
説明

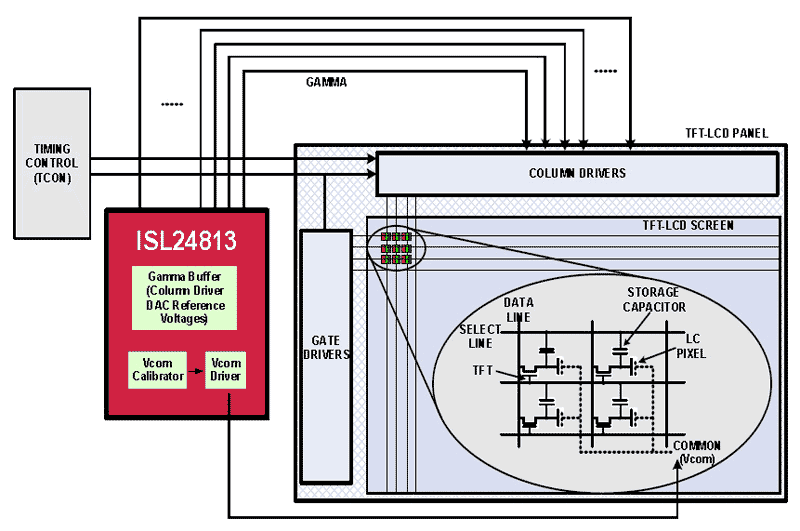

The ISL24813 is an I2C programmable 18-channel, 10-bit reference voltage generator with a digitally controlled VCOM Calibrator and op-amp. Two selectable banks of 18 channels allow fast hardware or software switching between two different gamma curves. The ISL24813 is configured and controlled via a standard I2C interface. ISL24813 is available in a 32 Ld TQFN package and is specified for operation over the -40°C to +85°C temperature range.
特長
- 18 I2C Programmable 10-Bit DACs
- Integrated Programmable VCOM Calibrator
- One VCOM Op Amp
- Two Banks of Volatile Memory for DACs
- 5V to 18V Analog Supply Range
- 2.5V to 3.3V Digital Supply Range
- 20mA Analog Supply Current (Unloaded)
- 700µA Digital Supply Current
- I2C Serial Interface
- Pb-free (RoHS compliant)
製品比較
アプリケーション
アプリケーション
- TFT-LCD Column Driver Reference Generator
- General-Purpose Reference Voltage Generators
ドキュメント
|
|
|
|
|---|---|---|
| 分類 | タイトル | 日付 |
| データシート－簡略版 | PDF 199 KB | |
| トレーニング | PDF 258 KB | |
| トレーニング | PDF 325 KB | |
| アプリケーションノート | PDF 564 KB | |
| データシート | PDF 1.07 MB | |
| 製品変更通知 | PDF 135 KB | |
| アプリケーションノート | PDF 357 KB | |
7 items
|
||
