パッケージ情報
| Pkg. Code | pkg_10216 |
| Lead Count (#) | 8 |
| Pkg. Type | TSSOP |
| Pkg. Dimensions (mm) | 4.4 x 3 x 1.1 |
環境及び輸出分類情報
| Moisture Sensitivity Level (MSL) | 1 |
| RoHS (R1EX25008ATA00I#S0) | 英語日本語 |
| Pb (Lead) Free | Yes |
| ECCN (US) | |
| HTS (US) |
製品スペック
| Carrier Type | Embossed Tape |
| Moisture Sensitivity Level (MSL) | 1 |
| Price (USD) | 0.75398 |
| Application | Industrial |
| Clock frequency (kHz) | 5000 |
| Family Name | Serial EEPROM |
| Interface | SPI bus |
| Lead Compliant | Yes |
| Lead Count (#) | 8 |
| Length (mm) | 3 |
| Longevity | 2032 12月 |
| MOQ | 3000 |
| Memory Capacity (kbit) | 8 |
| Organization (bit) | x 8 |
| Organization (kword) | 1 |
| Pb (Lead) Free | Yes |
| Pkg. Dimensions (mm) | 3 x 4 x 1.1 |
| Pkg. Type | TSSOP |
| Supply Voltage (V) | 1.8 - 5.5 |
| Tape & Reel | No |
| Thickness (mm) | 1.1 |
| Width (mm) | 4 |
R1EX25008A に関するリソース
説明

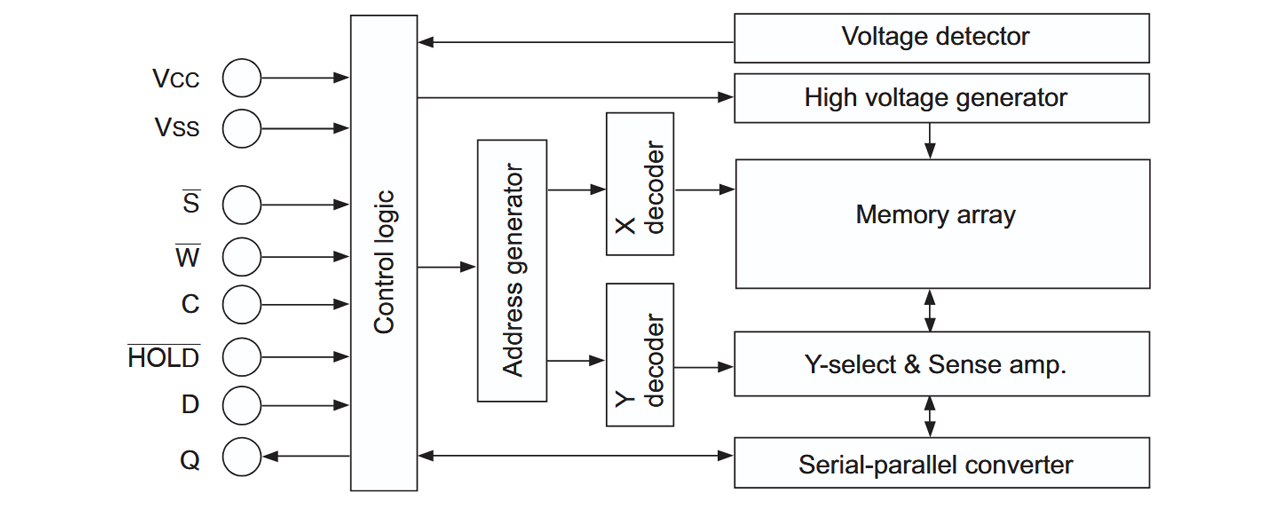

The R1EX25008A is a Serial Peripheral Interface (SPI) compatible EEPROM (Electrically Erasable and Programmable ROM). It realizes high-speed, low-power consumption, and a high level of reliability by employing advanced MONOS memory technology and the CMOS process, and low-voltage circuitry technology. It also has a 32-byte page programming function to make its write operation faster.
