特長
- Fifteen 0.7V HCSL differential output pairs
- Phase jitter: PCIe Gen3 < 1ps rms
- Phase jitter: PCIe Gen2 < 3.1ps rms
- Phase jitter: PCIe Gen1 < 86ps peak to peak
- Phase jitter: QPI 9.6GT/s < 0.2ps rms
- Supports zero delay buffer mode and fanout mode
- Bandwidth programming available
- 9 selectable SMBus addresses
- 7 OE# pins; 90–140MHz operation in PLL mode
- 33–150MHz operation in Bypass mode
説明
The 9ZX21501 is an Intel™ DB1900Z-compatible differential buffer suitable for PCI Express Gen3 or QPI applications. The part is backwards compatible to PCIe Gen1 and Gen2. A fixed external feedback maintains low drift for critical QPI applications.
パラメータ
| 属性 | 値 |
|---|---|
| Chipset Manufacturer | Intel |
| Clock Spec. | DB1900Z Derivative |
| Diff. Outputs | 15 |
| Diff. Output Signaling | HCSL |
| Output Enable (OE) Pins | 7 |
| Output Freq Range (MHz) | - |
| Diff. Inputs | 1 |
| Diff. Input Signaling | HCSL |
| Accepts Spread Spec Input | Yes |
| Power Consumption Typ (mW) | 1287 |
| Advanced Features | Multiple SMBus addresses, HW PLL mode control, Adjustable Feedback |
| App Jitter Compliance | PCIe Gen1, PCIe Gen2, PCIe Gen3, QPI |
| Package Area (mm²) | 81 |

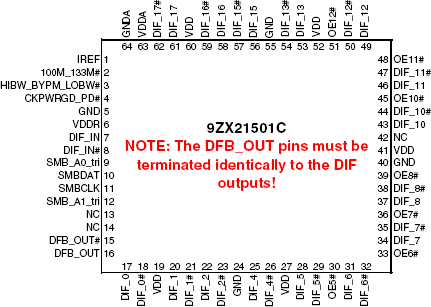

パッケージオプション
| Pkg. Type | Pkg. Dimensions (mm) | Lead Count (#) | Pitch (mm) |
|---|---|---|---|
| VFQFPN | 9.0 x 9.0 x 0.9 | 64 | 0.5 |
