Renesas RX65N Cloud Kit
Jump to Page Section:
Overview
Description
The Renesas RX65N Cloud Kit is an RX65N microcontroller-based cloud communications evaluation kit which is an ideal evaluation environment for IoT device developers. You can easily provide Wi-Fi connectivity to Amazon Web Services (AWS) and Microsoft Azure (Azure) to help start developing IoT devices.
The kit includes a Wi-Fi communication module, a temperature and humidity sensor, an optical sensor, a 3-axis acceleration sensor, a USB port for serial communication, and a USB port for debugging. The sensor data that is uploaded to AWS and Azure from this kit can be observed on cloud services. In addition, the e2 studio integrated development environment has been enhanced for this kit. The network stack for FreeRTOS and Azure RTOS, the configuration of component libraries, and the generation of source code can be done within e2 studio.
The RX65N microcontroller included in this kit is a next-generation general-purpose MCU with a human machine interface (HMI) and security features that are ideal for IoT edge devices. The built-in dual-bank capability and trusted secure IP features make secure cloud communications and firmware updates both easy and robust.
Cloud Connectivity Sample Program
Features
- Securely and reliably connect to cloud services
- The Renesas RX65N Cloud Kit, combined with a real-time OS from cloud services has the following certifications:
- AWS FreeRTOS certification
- Microsoft Azure RTOS certification
- The Renesas RX65N Cloud Kit, combined with a real-time OS from cloud services has the following certifications:
- Assists in IoT device prototyping
- Free editing and debugging sample programs for AWS and Azure communications.
- Comprehend the behavior of the sample programs from the application notes.
- Reduction in actual product development manhours
- The sample programs are based on the real-time OS provided by cloud service. You can leverage the large ecosystem of existing tools that have been developed for FreeRTOS and Azure RTOS kernels.
- You can easily program commonly needed IoT features to devices using the software library embedded in the real-time OS by cloud service.
Evaluate cloud communications using a variety of programs
- Basic AWS communications program
- Sends a "Hello World" text message to the AWS cloud at regular intervals
- FreeRTOS certified
- Communicates wirelessly using Wi-Fi

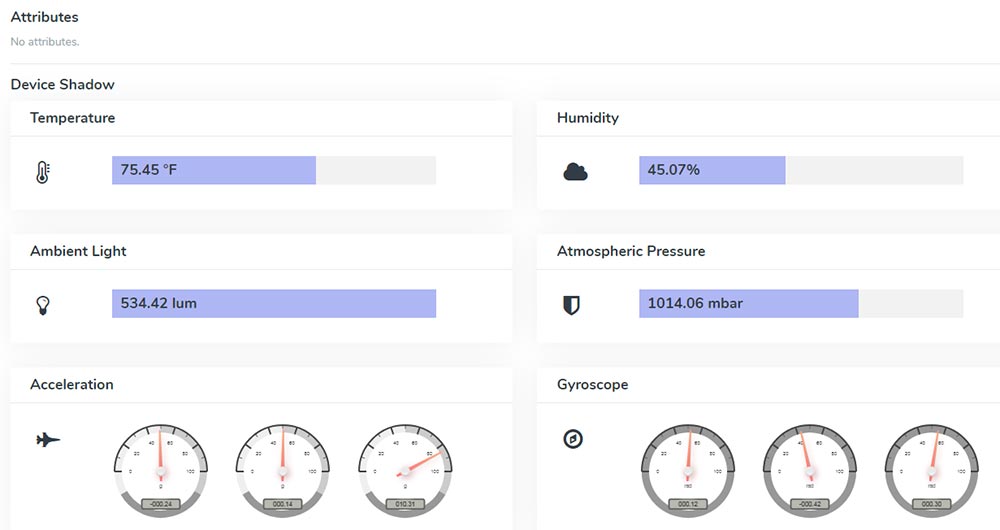

- Program for uploading sensor and other data to the AWS cloud, and for observing the information in the dashboard
- Sends data from its three on-board sensors to the AWS cloud at regular intervals
- Allows for observation of the sensor data in the dashboard
- Azure IoT plug and play certified programs
- Connects to Azure Central without coding, and monitors sensor data in a dashboard
- A program that uploads sensor data to Microsoft Azure, and then monitors it on Azure IoT Explorer's Telemetry
- Send MCU temperature data to Azure Cloud at regular intervals
- Monitor sensor data with Telemetry in Azure IoT Explorer
- A variety of sample programs that can be utilized to develop IoT devices
Applications
Documentation
| Title | Type | Date | |
|---|---|---|---|
PDF574 KB
|
Manual - Software
|
||
PDF2.97 MB
|
Application Note
|
||
Application Note
|
|||
Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
Application Note
|
|||
Application Note
|
|||
Flyer
|
|||
Related Files:
|
Manual - Development Tools
|
||
PDF448 KB
|
Manual - Development Tools
|
||
PDF525 KB
|
Manual - Development Tools
|
||
PDF77 KB
|
Manual - Development Tools
|
||
PDF660 KB
|
Manual - Development Tools
|
||
PDF467 KB
|
Manual - Development Tools
|
||
PDF149 KB
|
Manual - Development Tools
|
||
PDF530 KB
|
Manual - Development Tools
|
||
PDF768 KB
|
Manual - Development Tools
|
||
PDF367 KB
|
Manual - Development Tools
|
||
PDF338 KB
|
Other
|
||
PDF723 KB
|
Quick Start Guide
|
||
Tool News - Note
|
|||
White Paper
|
Design & Development
Software & Tools
Sample Code
Sample Code
| Title | Type | Date | |
|---|---|---|---|
[Software=RX-Driver-Package|V122],[Toolchains=GNURX|V8.3.0.2019.4] Related Files:
Application: IoT Applications, Industrial, Power and Energy Function: Application Example, Communication Interface, Driver or Library, Other peripherals Compiler: GNURX IDE: e2 studio |
Sample Code |
||
[Software=RX Driver Package|v1.34],[Toolchains=CC-RX|v3.04.00;GNURX|8.3.0.202202] ZIP265.17 MB Related Files:
Application: IoT Applications, Industrial, Consumer Electronics Function: Application Example Compiler: CC-RX, RenesasGCC IDE: e2 studio |
Sample Code |
Product Options
Processing table
| FCC : Renesas RX65N Cloud Kit (for US) | ||
| CE, TELEC :Renesas RX65N Cloud Kit (for EU, Japan, Singapore) |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
play_circle_filledVideos & Training
Azure RTOS Tutorial (1/3) RX65N Cloud Kit: Development Environment Setup
This video shows you how to make Microsoft's Azure RTOS work on the RX65N Cloud Kit.
This is a tutorial on how to connect the RX65N Cloud Kit to the Azure IoT Hub and display the sensor data.
This video is the development environment setup section. It shows where to download and install the development environment used in this tutorial.
The tools shown in this video can be downloaded from the links below.
- Renesas e2 studio (with GCC Compiler): https://www.renesas.com/software-tool/e-studio
- Azure IoT Explorer: https://github.com/Azure/azure-iot-explorer/releases
- Git: https://www.git-scm.com/downloads
- npm (Node Package Manager): https://nodejs.org/
- Tera Term: https://osdn.net/projects/ttssh2/releases/
* Next video.
- Azure RTOS Tutorial (2/3) RX65N Cloud Kit: Set up the Program
- Azure RTOS Tutorial (3/3) RX65N Cloud Kit: Operate Azure Cloud
The application note shown in this video can be downloaded here: RX65N Group Visualization of Sensor Data using RX65N Cloud Kit and Azure RTOS Rev.1.00 (PDF | English, 日本語)
