AnalogPAK™
Jump to Page Section:
Low energy consumption, miniaturization and functional integration are the main trends in modern consumer electronics. AnalogPAK products perfectly accomplish these requirements.

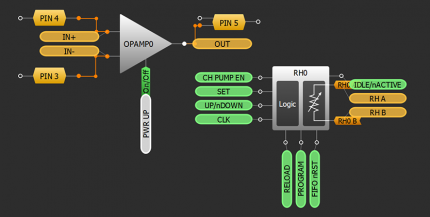

Embedded high-performance analog blocks, such as operational amplifiers, can be configured and controlled by customer-defined logic functions to implement various Wake/Sleep scenarios as well as improve accuracy. All macrocells are packed in one IC to achieve a high integration level of common analog and digital components.
Target Applications
- Gas sensor analog front-end
- Analog front-end for bridge sensors
- Instrumentation amplifier with offset and gain trim
- Tunable analog filters
- Analog front-end for photodiode
- Triangle wave generator with frequency trim
- Button replacement using force-sensitive resistor sensor
- Thermal protection with trimmable threshold
- Other size/price critical analog circuits
View our AnalogPAK Application Notes
Product Selection Table
Processing table
| Programmable Mixed-Signal Matrix with In-System Programmability and Advanced Analog Features | 2.4-5.5 | 8 | 2x Op Amp or 1x In-Amp, 2x Rheostat, 2x An Switch, 2-Ch Auto-Trim, EEPROM, Pattern Generator | 3 | 7 | 20 | 18 | 16-stage | 1 | RC OSC, LF OSC, Ring OSC | 1 | Absolute Voltage, GPIO, I2C, Switch Output | MTP | 3.0 x 3.0 | TQFN | 24 | ||
| Micropower Operational Amplifier for GreenPAK™ | 1.8 - 5.0 | 0 | Op Amp | 0 | 0 | 0 | 0 | 0 | 2.0 x 2.0 | STDFN | 10 | |||||||
| Micropower Operational Amplifier for GreenPAK™ | 1.8 - 5.0 | 0 | Op Amp | 0 | 0 | 0 | 0 | 0 | 2.0 x 3.5 | STQFN | 20 |
