Entry-Line 200MHz Arm® Cortex®-M33 General Purpose Microcontroller
Jump to Page Section:
Overview
Description
The RA6E2 entry-line microcontroller is based on the 200 MHz Arm® Cortex®-M33 core with TrustZone.
RA6E2 MCUs offer best-in-class performance as an entry-line microcontroller while pursuing cost optimization. Pin and peripheral compatibility with the RA4E2 group make it ideal for applications requiring higher performance, small footprint, and lower pin counts.

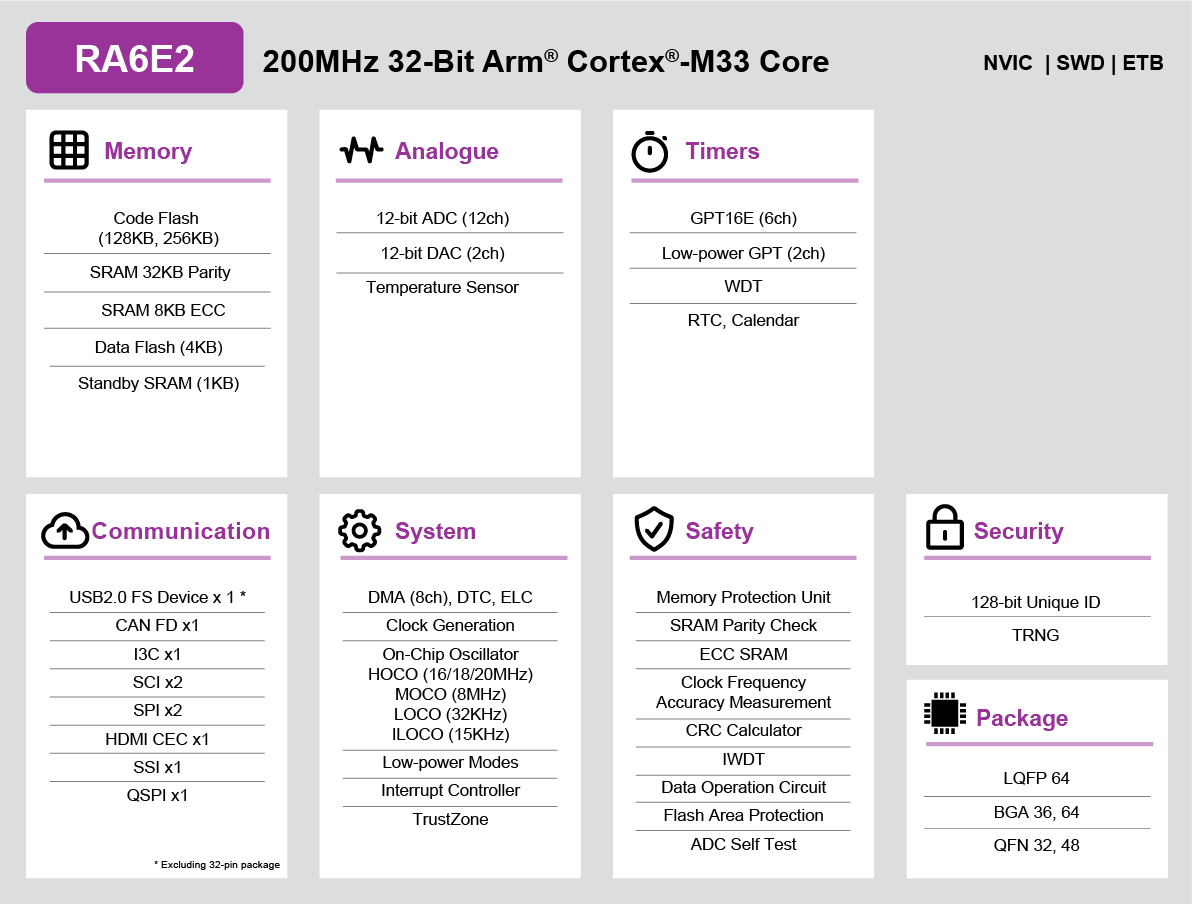

Features
- 200MHz Arm Cortex-M33 with TrustZone
- 128KB - 256KB Flash memory and 40KB SRAM
- 4KB Data Flash to store data as in EEPROM
- 1KB Standby SRAM
- Scalable from 32-pin to 64-pin packages
- USB 2.0 Full Speed
- CAN FD, I3C
- HDMI CEC, SSI
- Quad SPI
- 12-bit A/D Converter
- 12-bit D/A Converter
- General PWM Timer
Applications
Applications
- General purpose
- Sensor applications (Medical, Industrial, Wearable)
- Communication/Network module
- Home appliances
- Fingerprint reader module
- Home entertainment (Voice command/recognition)
Documentation
| Title | Type | Date | |
|---|---|---|---|
Datasheet
|
|||
Manual - Hardware
|
|||
PDF1.91 MB
|
Application Note
|
||
PDF84 KB Related Files:
|
Application Note
|
||
Related Files:
|
Application Note
|
||
PDF252 KB
|
Application Note
|
||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Application Note
|
|||
Brochure
|
|||
Flyer
|
|||
Flyer
|
|||
Flyer
|
|||
General Reliability Literature
|
|||
PDF652 KB
|
Guide
|
||
Manual - Development Tools
|
|||
Manual - Development Tools
|
|||
Manual - Development Tools
|
|||
Other
|
|||
PDF429 KB
|
Product Reliability Report
|
||
Quick Start Guide
|
|||
PDF3.02 MB
|
Release Note
|
||
PDF2.64 MB
|
Release Note
|
||
PDF2.87 MB
|
Release Note
|
||
PDF2.32 MB
|
Release Note
|
||
PDF3.00 MB
|
Release Note
|
||
ZIP71.92 MB
|
Schematic
|
||
Technical Update
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
|||
Tool News - Release
|
Design & Development
Software & Tools
Software & Tools
| E2 emulator Lite [RTE0T0002LKCE00000R]On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RL78, RX] | Emulator | Renesas |
| E2 emulator [RTE0T00020KCE00000R]On-chip debugging emulator. Also available as a flash memory programmer. [Support MCU/MPU: RA, RE, RH850, R-Car D1, RL78, RX] | Emulator | Renesas |
| e² studio - information for RA FamilyEclipse-based Renesas integrated development environment (IDE). [Support MCU/MPU: RA, RE, RX, RL78, RH850, Renesas Synergy, RZ] | IDE and Coding Tool | Renesas |
| E2 Emulator (With Programming Function)On-chip debugging emulator available as a flash memory programmer [Available flash programming software: Renesas Flash Programmer] [Support MCU/MPU and devices: RE, RX, RL78, RH850, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver] | Programmer (Unit/SW) | Renesas |
| E2 Emulator Lite (With Programming Function)On-chip debugging emulator available as a flash memory programmer [Available flash programming software: Renesas Flash Programmer] [Support MCU/MPU and devices: RX, RL78, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver] | Programmer (Unit/SW) | Renesas |
| PG-FP6Flash memory programmer [Programming software: Dedicated GUI-based software, the "FP6 Terminal"] [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, SuperH RISC engine, V850, 78K, R8C] | Programmer (Unit/SW) | Renesas |
| Renesas Flash Programmer (Programming GUI)Flash memory programming software [Support MCU/MPU and devices: RA, RE, RX, RL78, RH850, Renesas Synergy, Power Management, Renesas USB Power Delivery Family, ICs for Motor Driver/Actuator Driver, V850, 78KR, 78K0] | Programmer (Unit/SW) | Renesas |
| Sensor Software Modules for Renesas MCU PlatformsMiddleware (FIT module and FSP module) and sample software packages that enable control and data acquisition for Renesas sensor products. | Sensor | Renesas |
| Flexible Software Package (FSP)FSP is an enhanced software package designed to provide easy-to-use, scalable, high-quality software for embedded system designs using Renesas RA Family of Arm Microcontrollers. Note: FSP with e² studio Installer (Platform Installer) will install the e² studio tool, FSP packs, GCC toolchain and Segger J-Link drivers required to use this software. No additional installations are required.Downloads: | Software Package | Renesas |
| RA Smart ConfiguratorThe Renesas RA Smart Configurator (RA SC) is a desktop application that helps you in configuring software systems (including a Board Support Package (BSP), drivers, RTOS, and middleware) for RA-Family MCUs when you are using a third-party IDE and toolchain. | Solution Toolkit | Renesas |
| Security Key Management ToolKey wrapping tool for key management systems using Renesas security IP. Enables secure installation and update of user application and device lifecycle management (DLM) keys. | Solution Toolkit | Renesas |
Sample Code
Boards & Kits
Boards & Kits
Evaluation Kit for RA6E2 MCU Group
The EK-RA6E2 evaluation kit enables users to effortlessly evaluate the features of the RA6E2 MCU Group and develop embedded systems applications using Renesas' Flexible...
Featured Documents:
Models
ECAD Models
Schematic symbols, PCB footprints, and 3D CAD models from SamacSys can be found by clicking on products in the Product Options table. If a symbol or model isn't available, it can be requested directly from the website.
Product Options
Processing table
Part Number |
PLP |
Program Memory (KB) |
Data Flash (KB) |
RAM (KB) |
Lead Count (#) |
Pkg. Type |
Supply Voltage (V) |
Operating Freq (Max) (MHz) |
RTC |
LVD |
DMA |
I/O Ports |
Timer |
ADC |
DAC |
CAN Interface |
Ethernet |
USB |
Human Machine Interface |
Bit Size |
CPU |
Temp. Range |
Security & Encryption |
Buy / Sample |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| N/A | 256 | 4 | 40 | 64 | LQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 45 | 16-bit x 6-ch, Low-Power 32-bit Asynchronous Timer x 2-ch | 12-bit x 12-ch | 12-bit x 2-ch | CAN FD x 1ch | USB Full-Speed Support | 32 | ARM CM33 | -40 to 105°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | |||
| N/A | 256 | 4 | 40 | 48 | HWQFN | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 29 | 16-bit x 6-ch, Low-Power 32-bit Asynchronous Timer x 2-ch | 12-bit x 8-ch | 12-bit x 2-ch | CAN FD x 1ch | USB Full-Speed Support | 32 | ARM CM33 | -40 to 105°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | |||
| N/A | 256 | 4 | 40 | 32 | HWQFN | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 16 | 16-bit x 4-ch, Low-Power 32-bit Asynchronous Timer x 2-ch | 12-bit x 5-ch | 12-bit x 1-ch | CAN FD x 1ch | 32 | ARM CM33 | -40 to 105°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||||
| N/A | 256 | 4 | 40 | 64 | LFBGA | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 45 | 16-bit x 6-ch, Low-Power 32-bit Asynchronous Timer x 2-ch | 12-bit x 12-ch | 12-bit x 2-ch | CAN FD x 1ch | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | |||
| N/A | 256 | 4 | 40 | 36 | LFBGA | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 20 | 16-bit x 5-ch, Low-Power 32-bit Asynchronous Timer x 2-ch | 12-bit x 4-ch | 12-bit x 1-ch | CAN FD x 1ch | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | |||
| N/A | 128 | 4 | 40 | 64 | LQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 45 | 16-bit x 6-ch, Low-Power 32-bit Asynchronous Timer x 2-ch | 12-bit x 12-ch | 12-bit x 2-ch | CAN FD x 1ch | USB Full-Speed Support | 32 | ARM CM33 | -40 to 105°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | |||
| N/A | 128 | 4 | 40 | 64 | LQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 45 | 16-bit x 6-ch, Low-Power 32-bit Asynchronous Timer x 2-ch | 12-bit x 12-ch | 12-bit x 2-ch | CAN FD x 1ch | USB Full-Speed Support | 32 | ARM CM33 | -40 to 105°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | |||
| N/A | 128 | 4 | 40 | 48 | HWQFN | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 29 | 16-bit x 6-ch, Low-Power 32-bit Asynchronous Timer x 2-ch | 12-bit x 8-ch | 12-bit x 2-ch | CAN FD x 1ch | USB Full-Speed Support | 32 | ARM CM33 | -40 to 105°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | |||
| N/A | 128 | 4 | 40 | 32 | HWQFN | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 16 | 16-bit x 4-ch, Low-Power 32-bit Asynchronous Timer x 2-ch | 12-bit x 5-ch | 12-bit x 1-ch | CAN FD x 1ch | 32 | ARM CM33 | -40 to 105°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | ||||
| N/A | 128 | 4 | 40 | 64 | LFBGA | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 45 | 16-bit x 6-ch, Low-Power 32-bit Asynchronous Timer x 2-ch | 12-bit x 12-ch | 12-bit x 2-ch | CAN FD x 1ch | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | |||
| N/A | 128 | 4 | 40 | 36 | LFBGA | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 20 | 16-bit x 5-ch, Low-Power 32-bit Asynchronous Timer x 2-ch | 12-bit x 4-ch | 12-bit x 1-ch | CAN FD x 1ch | USB Full-Speed Support | 32 | ARM CM33 | -40 to 85°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, | |||
| N/A | 256 | 4 | 40 | 64 | LQFP | 2.7 - 3.6 | 200 | No | No | DMAC x 8ch, DTC | 45 | 16-bit x 6-ch, Low-Power 32-bit Asynchronous Timer x 2-ch | 12-bit x 12-ch | 12-bit x 2-ch | CAN FD x 1ch | USB Full-Speed Support | 32 | ARM CM33 | -40 to 105°C | 128-bit Unique ID, Arm TrustZone, TRNG | Get Samples, |
Tips for Using This Parametric Table:
- Hide Filters button in header: Collapse or expands filters
- Column sort buttons in header: Sort Column alphabetically / numerically descending or ascending
- Reset button in header: Reset all filters to the page default
- Full Screen button in header: Expand the table to full screen view (user must close out of full screen before they can interact with rest of page)
- Export button in header: Export the filtered results of the table to an Excel document
- Filter parts search bar in header: Type to filter table results by part number
- Hide column button in column headers: Select to hide columns in table
- AND / OR toggle switches in header: Toggles the logic of this particular filter to be “AND” or “OR” logic for filtering results
- Multiselect checkboxes at beginning of each row in table: Select these checkboxes to compare products against each other
- Document icon next to product name in row: View the featured document for this product
- Chip icon next to the right of the document icon in row: View the block diagram for this product
- Cart icon to the right of the chip icon: Indicates that samples are available for this product
Companion Products
play_circle_filledVideos & Training
RA6E2 200 MHz Arm® Cortex®-M33 Entry-Line MCUs in Compact Packages
An overview of the RA6E2 32-bit Entry-Line MCUs with rich peripheral and connectivity options in compact packages designed for communication and networking modules, appliances, fingerprint readers and cost-sensitive general purpose applications.
