Overview
Description
RZ/V2N AI Software Development Kit (AI SDK) is an AI application development environment for the RZ/V2N Evaluation Board Kit.
Please see the following webpage for more details.
https://renesas-rz.github.io/rzv_ai_sdk/latest/

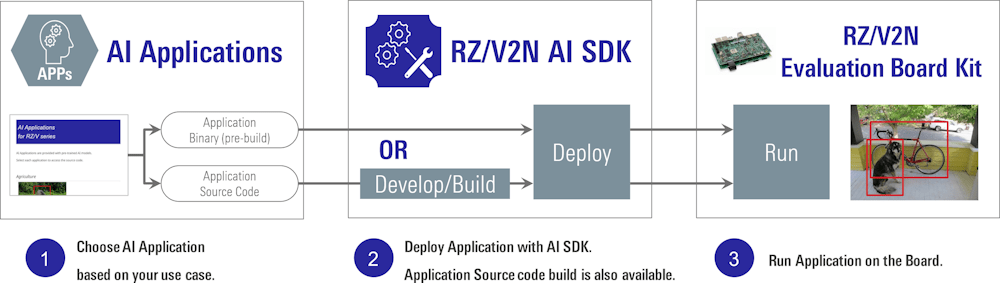

AI SDK provides the following packages.
| Package | Details |
|---|---|
| AI SDK | Package used for AI Development. Users can build/run the AI Application easily and quickly. |
| AI SDK Source Code | Package used for Linux Development. Users can customize the Linux environment and develop their own board. |
Features
- AI Software Development Kit (AI SDK) is a solution that allows you to develop AI applications easily and quickly using Renesas' RZ/V evaluation boards (RZ/V2N-EVK).
- AI SDK includes Yocto Linux with bootloader, Linux kernel, cross compiler and a complete set of libraries for DRP-AI, graphics, video codec and OpenCV Accelerator. USB/MIPI camera can be used with Video for Linux 2 (V4L2) API.
- By using the AI SDK Source Code, you will be able to change the source code and customize the Linux environment.
Release Information
- 2026/8/20: RZ/V2N AI SDK v8.00
- 2026/3/31: RZ/V2N AI SDK v6.30
- 2025/6/30: RZ/V2N AI SDK v6.00
- 2025/3/11: RZ/V2N AI SDK v5.00
Target Devices
Design & Development
Videos & Training
This video explains how to configure and validate dual-camera operation on the RZ/V2N Evaluation Kit using two MIPI CSI-2 camera modules. The tutorial introduces the hardware architecture, camera interfaces, and Linux media pipeline structure, including the AR0234 image sensors, CSI-2 receivers, CRU capture units, and Media Controller framework. It demonstrates camera enumeration, driver verification, pipeline configuration, raw frame capture, and validation of simultaneous full-frame-rate acquisition from both cameras. The video also shows how to display both camera streams side-by-side using GStreamer and HDMI output, providing a practical foundation for multi-camera embedded vision applications.
Support Policy
Renesas provides support for the items listed below for the RZ/V2N AI Software Development Kit at no additional cost.
| Form | Q&A and Issue Analysis1 | Maintained by Renesas | ||
|---|---|---|---|---|
| Renesas Reference Board | Customer Board | |||
| Customer Developed/Modified Software | - | No | No2 | No |
| Customer Added OSS | - | No | No | No |
| Renesas Developed Software | Source Code | Yes | Yes | Yes |
Binary | Yes | Yes3 | Yes | |
Notes:
1. First, customers should investigate which component has an issue—whether it is a Renesas deliverable or a customer-developed component.
2. We provide support for board-dependent changes such as channel numbers and pin configurations.
3. We provide Q&A support only for functions that are defined and described in the user's manual.
