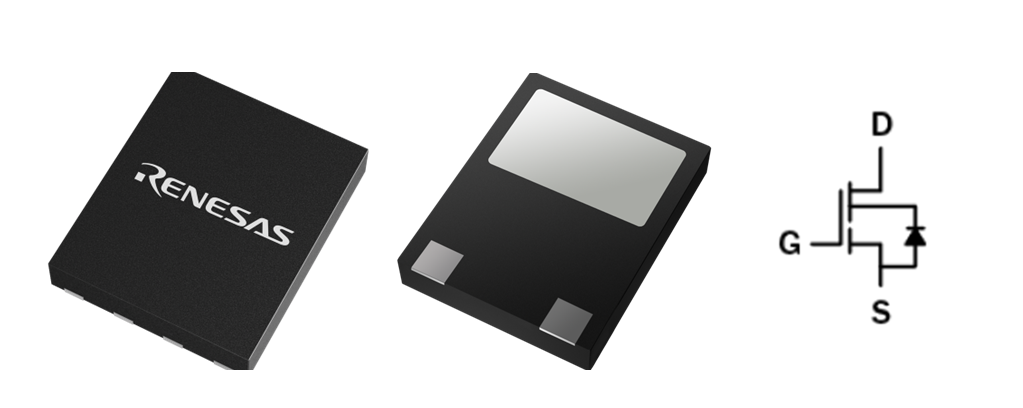

TP65H480G4JSG

AI-generated Summary: GaN power switches require careful PCB layout and probing techniques to fully utilize their fast switching capabilities. Minimizing parasitic inductances and capacitances in the power and gate drive loops reduces ringing and ensures stable operation. A large ground plane, close placement of power components, and short, wide traces in the gate drive circuit improve performance. Accurate probing demands short ground leads and direct probe placement to avoid measurement artifacts. Avoid adding parasitics during probing by using floating oscilloscopes and minimizing wire lengths. The document also highlights the importance of proper decoupling and grounding strategies for high-frequency switching circuits.

AI-generated Summary: Renesas GaN Power Switches combine a normally-off low voltage Si MOSFET and a normally-on high voltage GaN HEMT in a cascode configuration, enabling ultra-fast switching with low reverse recovery charge. This design minimizes switching losses and improves reverse conduction performance compared to traditional silicon MOSFETs. The GaN switch operates in three modes: forward blocking, forward conduction, and reverse conduction, with significantly reduced reverse recovery charge and time, enhancing efficiency in power applications. Reverse recovery tests show the GaN switch has 25 times lower recovery charge than comparable CoolMOS devices, demonstrating superior performance.

AI-generated Summary: The document explains the use of the TPHDC001 daughter card to evaluate Renesas’s PQFN88 and PQFN56 GaN devices in existing TO-220 Si sockets. It enables quick performance assessment of GaN technology in silicon-based applications by adapting PQFN packages to TO-220 sockets. The daughter card features a GDS output terminal configuration, accommodates footprints for gate resistor, ferrite bead, and snubber components, and supports high current testing with heatsink mounting. It includes PCB layout details and component recommendations for half-bridge and single-ended circuits. Safety precautions emphasize handling high voltage and cooling during testing. PCB design files include BOM, schematic, and Gerber files.

AI-generated Summary: Renesas GaN FETs have an absolute maximum gate-to-source voltage rating of ±18V. Transient voltages exceeding this rating may appear at the gate pin due to package inductance but do not damage the device because the internal gate voltage remains within limits. High-frequency ringing on the gate pin results from parasitic inductances in the input and source loops, especially source inductance shared by input and output. Devices with internal ferrite beads, such as TO-247 packages, further attenuate these transients. Careful PCB layout minimizing parasitic inductances is crucial to reduce overshoot, ringing, and improve stability in GaN FET circuits.

AI-generated Summary: GaN FETs do not have a body diode or avalanche mechanism like silicon MOSFETs, enabling higher efficiency and new circuit topologies. Instead of avalanche ratings, GaN FETs have a transient peak voltage rating (VTDS) about 25% above their continuous rating, allowing voltage spikes up to 800V for 1µs. Renesas performs high voltage off-state tests to ensure reliability, predicting device lifetimes exceeding 10,000 years under rated conditions. Testing methods avoid unclamped inductive load tests and focus on leakage current measurements to confirm maximum voltage ratings.
