Features
- Optimized for all high-side Power-Rail Control Applications in Single Li-ion Powered Devices, Set-top Boxes, Tablet PCs, Hard-disk & Solid-state Drives, and PCI/PCIe Cards
- 18 mΩ RDSON
- Maximum Continuous FET Current: 2 A
- Supply Voltage: 2.5 V ≤ VDD ≤ 3.6 V
- Wide Input Voltage Range: 0.85 V ≤ VD ≤ Up to VDD
- Capacitor-adjustable VS Slew-rate Control
- Two-stage Overcurrent Protection:
- Fixed-threshold, 2.7 A Active Current Limit
- Fixed 0.9 A Short-circuit Current Limit
- Fast VS Discharge Option – SLG59M1720V
- Thermal Shutdown Protection
SLG59M1721V
Description

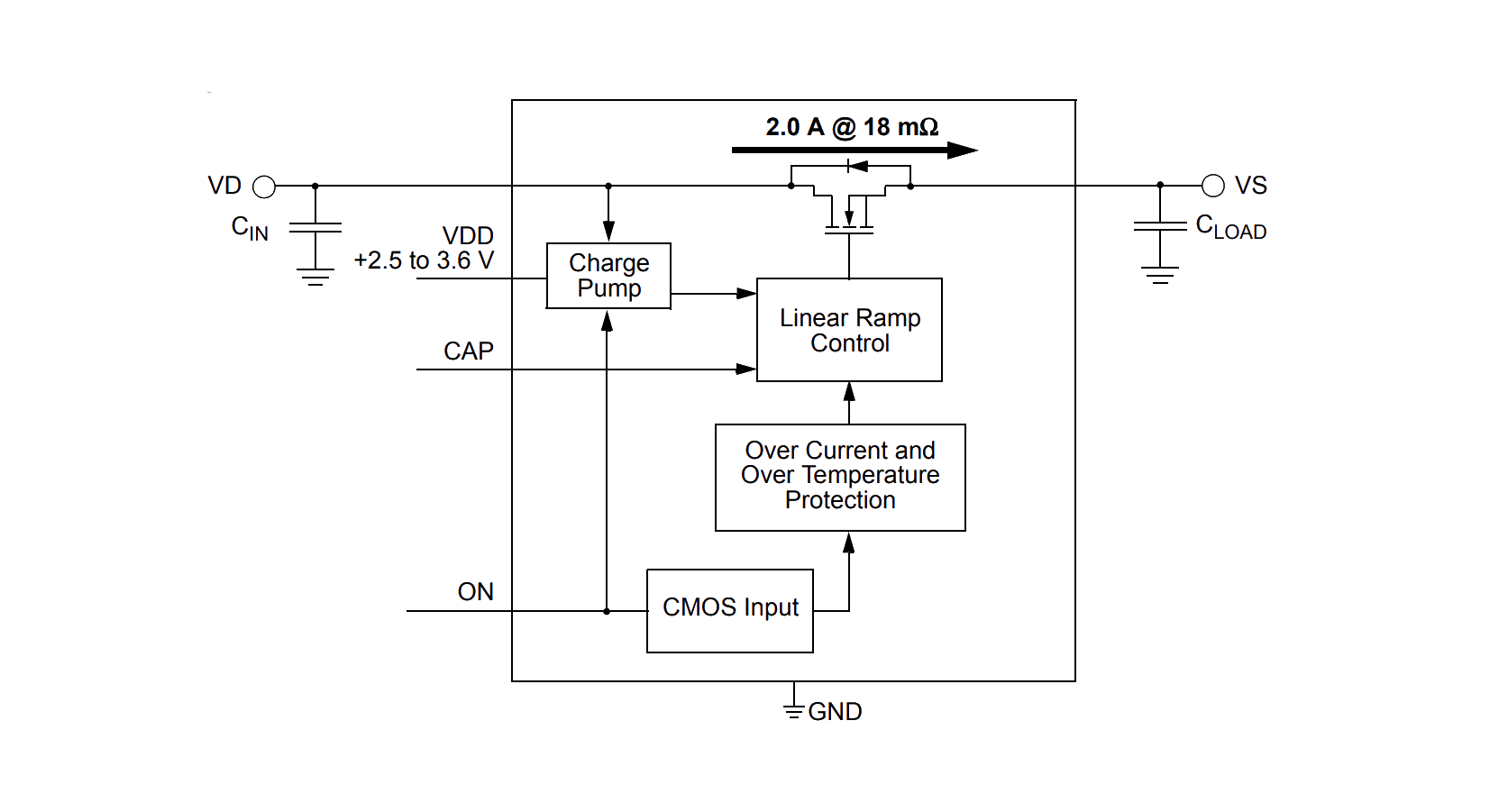

The SLG59M1721V is a high performance 18 mΩ, 2.0 A single‑channel nFET load switch which can operate with a 2.5 V to 3.6 V VDD supply to switch power rails from as low as 0.85 V up to the supply voltage. The SLG59M1721V incorporates two‑level overload current protection, thermal shutdown protection, and in‑rush current control which can easily be adjusted by a small external capacitor. Using a proprietary MOSFET design, the SLG59M1721V achieves a stable 18 mΩ RDSON across a wide input voltage range and over temperature. In addition, the SLG59M1721V’s package also exhibits low thermal resistance for high‑current operation using proprietary CuFET technology. Fully specified over the -40 °C to 85 °C temperature range, the SLG59M1721V is packaged in a space‑efficient, low thermal resistance, RoHS‑compliant 1.0 mm x 1.4 mm STDFN package.
Applications
- GPS Devices
- Notebook & Tablet PCs
- Smartphones
- Portable Consumer Electronics
- Portable Bar-Code Scanners
- Portable POS Terminals
| Part Number | Status | Samples | Stock | Package | Lead Count (#) | Carrier Type | Moisture Sensitivity Level (MSL) | Pb (Lead) Free |
|---|---|---|---|---|---|---|---|---|
| SLG59M1721V | Obsolete | N/A | Out of Stock | Package | Tape & Reel | 1 | Yes | |
| SLG59M1721VTR | Obsolete | N/A | Out of Stock | Package | 6# |
